Imp. temp. 80.00°C
Imp. umid. 70.00 %
ENTER
If you enter the wrong number, you will still have to press ENTER and then re-digit
the number.
Temp. gr. 0.00°C min
Hum. gr. 0.00 RH%min
Temp. gr. = Temperature gradient
(0=maximum speed)
Hum. gr. = Humidity gradient
(0=maximum speed)
SHIFT

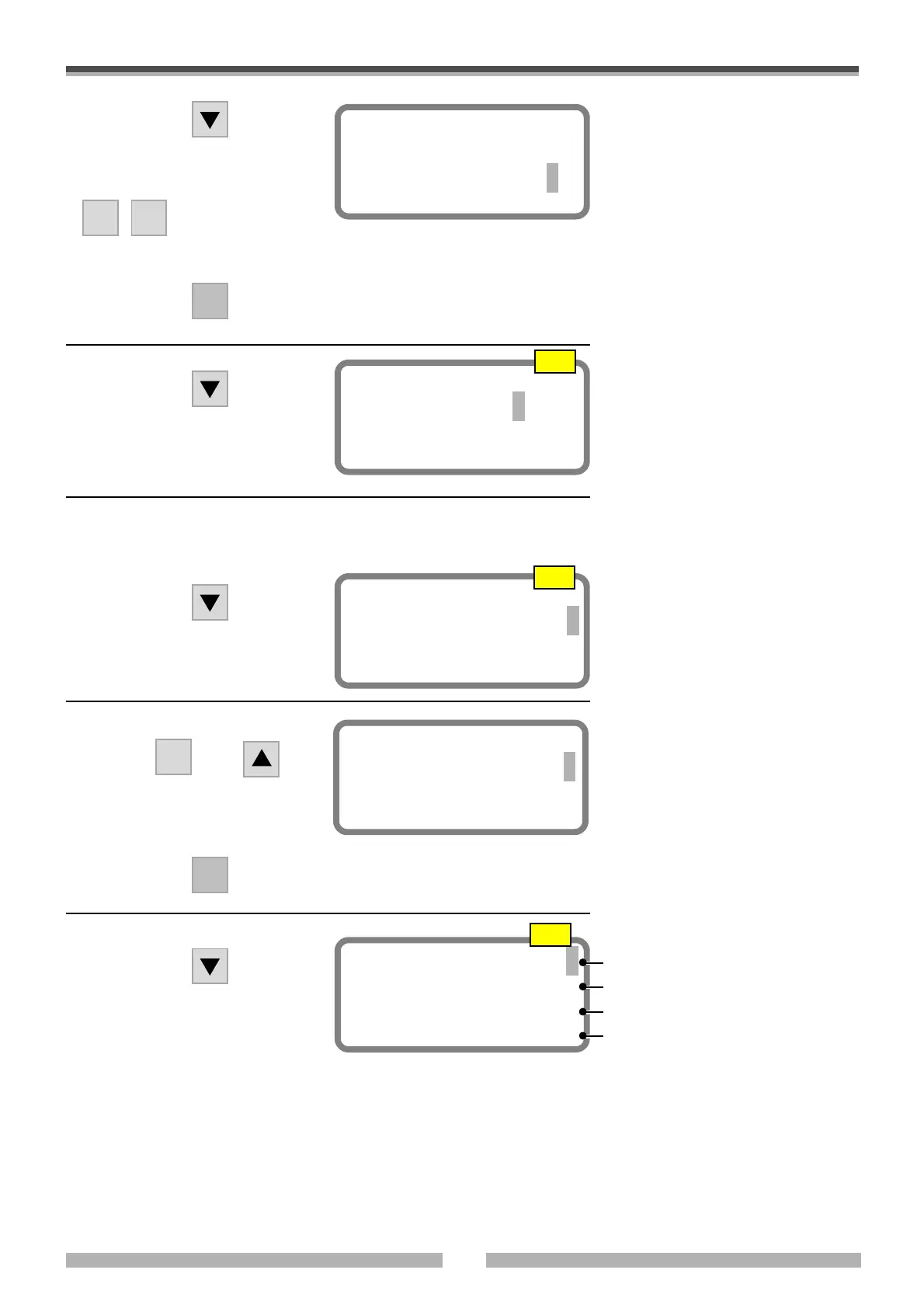

Temperature enab OFF
Humidity enab. OFF
- To enable or disable the temperature
- To enable or disable the humidity
Data is entered and memorized as described previously.
The average gradient is given in the technical specifications in the chamber handbook.
Temperature enab ON
Humidity enab. ON
- The temperature is enabled
- Move the cursor on to the line below
and enable humidity
ENTER
If you enter the wrong number, you will still have to press ENTER and then re-digit
the number.
Place the cursor as shown in order to
set a humidity value %.
If the chamber is not climatic, leave the
value at zero
A4
A5
Dehumidification: OFF
Vibrator: OFF
Specimens: OFF
U.V. lamp.: OFF
(1)
(2)
(3)
(4)
1) The rising dehumidification (optional)
avoids the formation of condensate
on the object to be tested. The cham-
ber must be originally equipped with
this device.
2) Only for special machines equipped
with Vibrator
3) When it is switched ON, contact E
(Apparatus) is closed on the DIG-
ITAL IN/OUT connector (see at-
tached electrical diagram and de-
scription of the connector in the
chamber instruction handbook).
4) Enables the UV lamp (optional) to
be switched on.
A6
In some versions of the programme the
writing in points (1), (2), (3), (4) are
replaced by:
Dedicated contact 1
Dedicated contact 2
Dedicated contact 3
Dedicated contact 4
