Turn all the values to ON as shown
SHIFT
B8
Channel 1
Control : ON
Wait set point : ON
Max speed : ON
ENTER
B9
Set point : 0.00 °C
Grad. : 0.00 °C/min
Near set : 1,00 °C
B10
Set point : 30.00 °C
Grad. : 0.00 °C/min
Near set : 1,00 °C

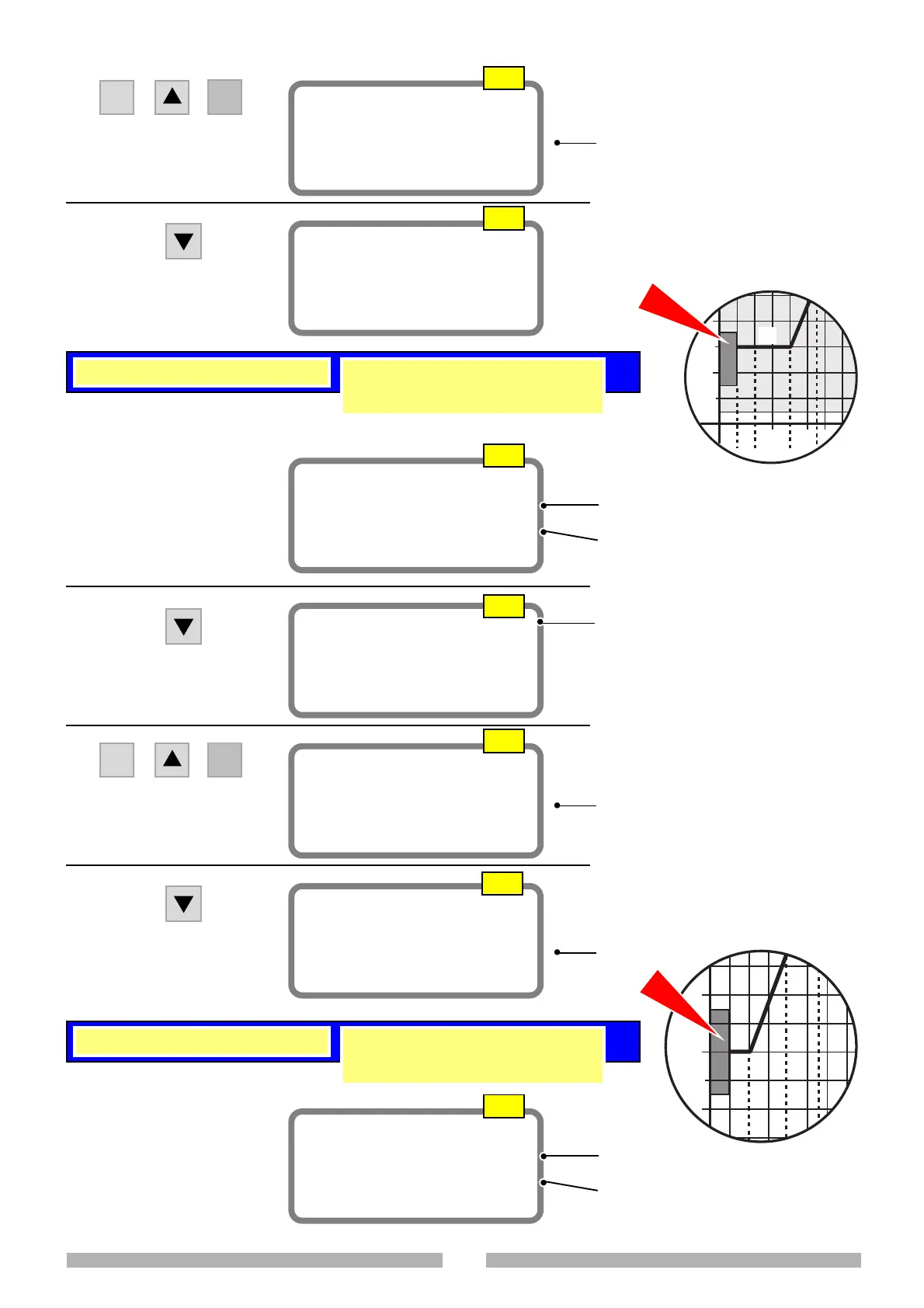

To set segment 1 (°C)
Temperature 30°C
At maximum speed
Leave the gradient at 0 = max speed
Default value (tollerance within which
the segment is considered to have been
reached)
Channel 2
Control : OFF
Wait set point : OFF
Max speed : OFF
Channel 2: to set the humidity
Turn all the values to ON as shown
SHIFT
B12
Channel 2
Control : ON
Wait set point : ON
Max speed : ON
ENTER
20
40
30
1 1,5 2,52
1
OP2605-050
Set point : 0.00 RH %
Grad. : 0.00 RH %/min
Near set : 3,00 RH %
1
B13
B14
Set point : 60.00 RH %
Grad. : 0.00 RH %/min
Near set : 3,00 RH %
To set segment 1 (% RH)
60% humidity
At maximum speed
Leave the gradient at 0 = max speed
Default value
(tollerance within which the segment is
considered to have been reached)
40
60
80
90
OP2605-060
1
• Enter the values shown on
the page.
B11
Default value
