Configuring with the WBM
7.3 The menu items of the WBM
SIMATIC RF185C, RF186C, RF188C, RF186CI, RF188CI
78 Operating Instructions, 04/2020, C79000-G8976-C512-03
7.3.4 The "Settings - Digital outputs" menu item
The menu item "Settings - Digital outputs" is only displayed for the RF186CI and RF188CI
communication modules.
In the "Settings - Digital outputs" menu item, you can set the properties of the digital outputs
and assign functions to the interface. The menu item is divided into the following areas:
● Basic settings
● Digital outputs

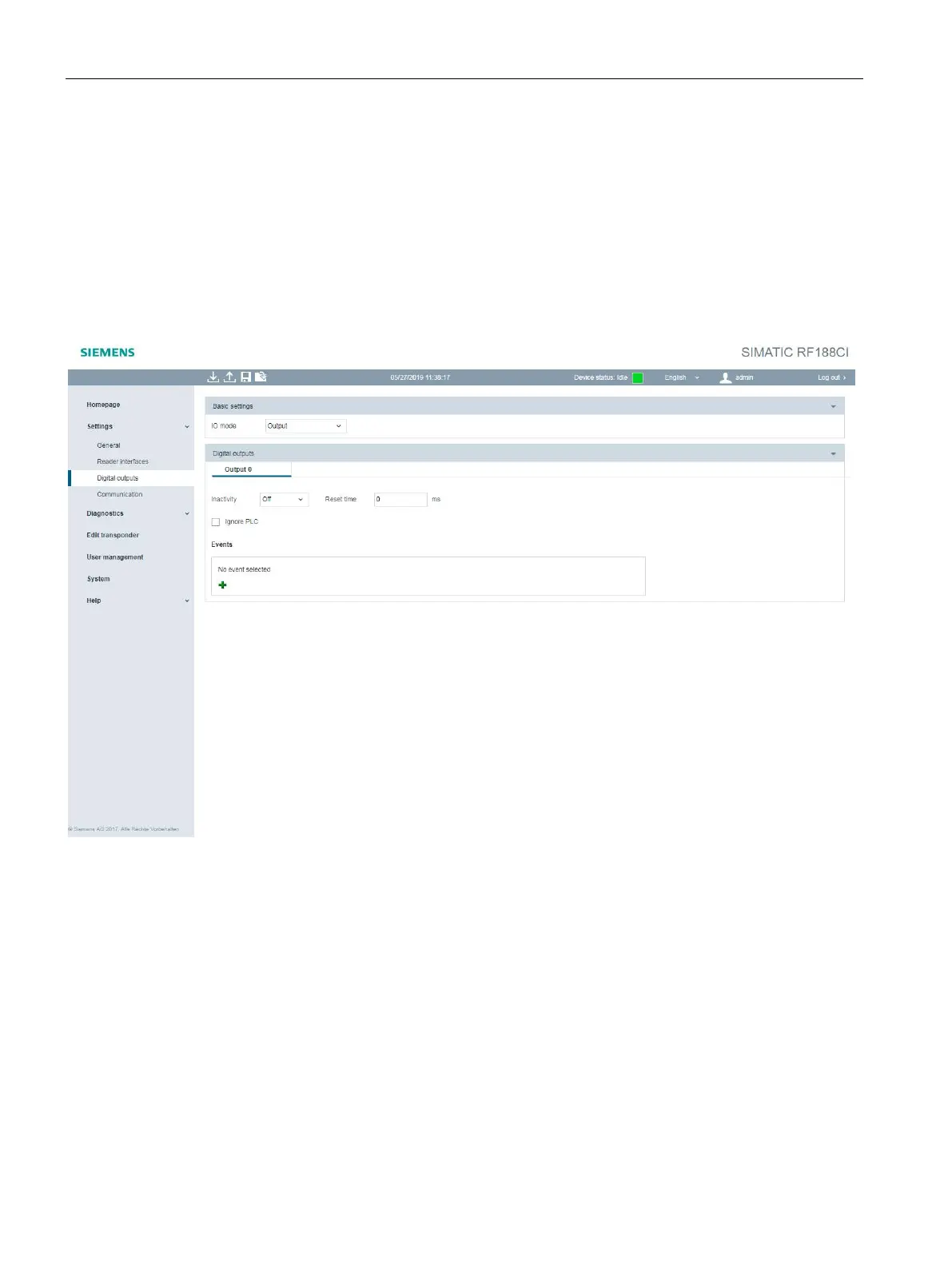

Figure 7-7 The "Settings - Digital outputs" menu item
