3.2 Configuration and operating principle
Structure
The S7-1500R redundant system consists of the following components:
•
Two CPUs of the type CPU1515R‑2PN
•
Two SIMATIC memory cards
•
PROFINET cable (redundancy connections, PROFINET ring)
•
IO devices
•
Load power supply (optional)
You mount the CPUs on a common mounting rail or spatially separated on two separate
mounting rails. You connect the two CPUs and the IO devices in a PROFINET ring via the
PROFINET cable.
1
2
3
4
1
3
5
5
① Optional load current supply
② First CPU
③ Mounting rail with integrated DIN rail profile
④ Second CPU
⑤ PROFINET cable (redundancy connections, PROFINET ring)

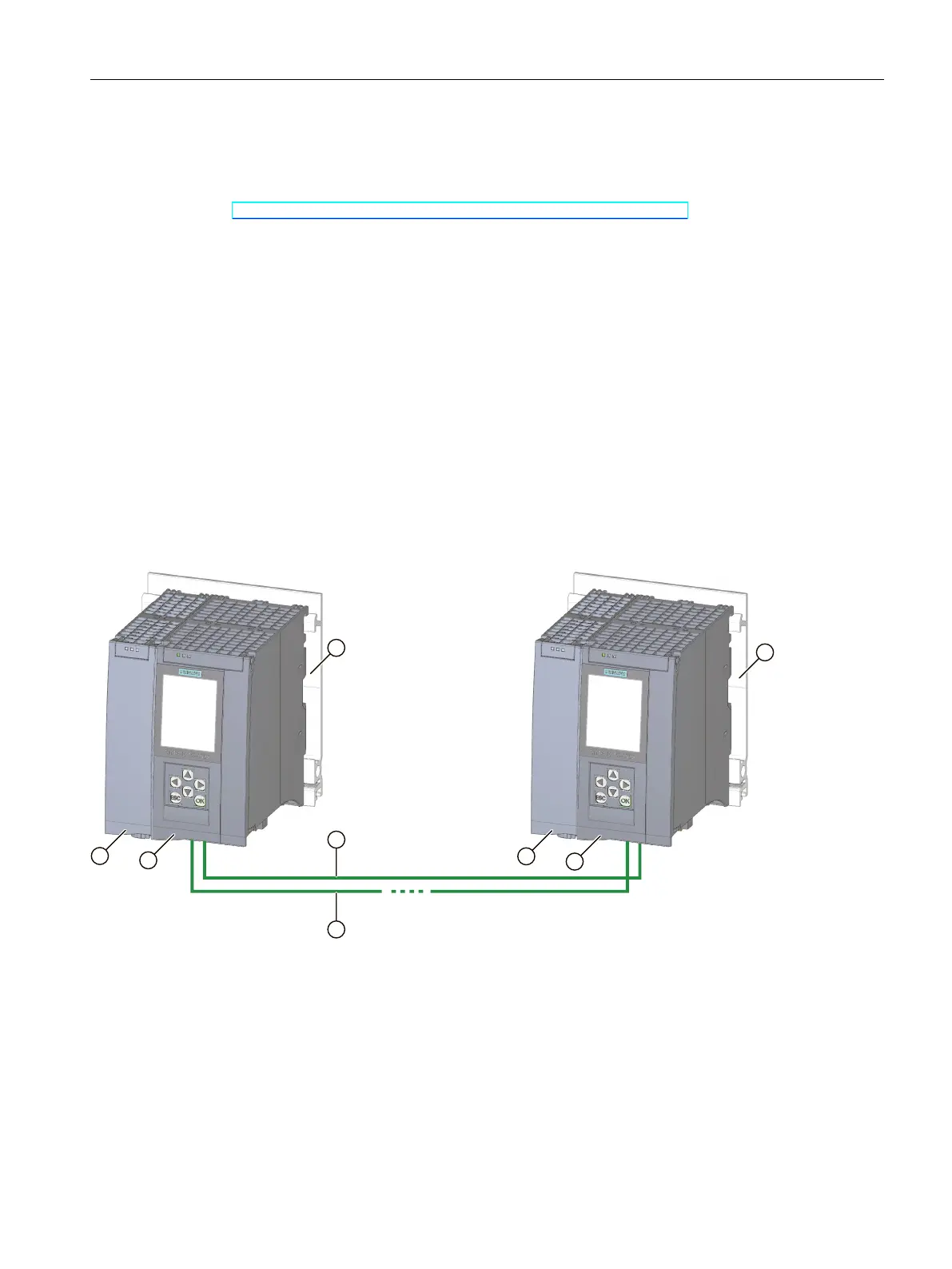

Figure 3-1Configuration example for S7‑1500R
