Siemens SIMATIC S7-300 Module data Quick Start

1-2
Primer: S7-300 Programmable Controller, Quick Start
C79000-G7076-C500-01
For working with the Primer and executing the TLIGHT sample program,
you require the following hardware components:

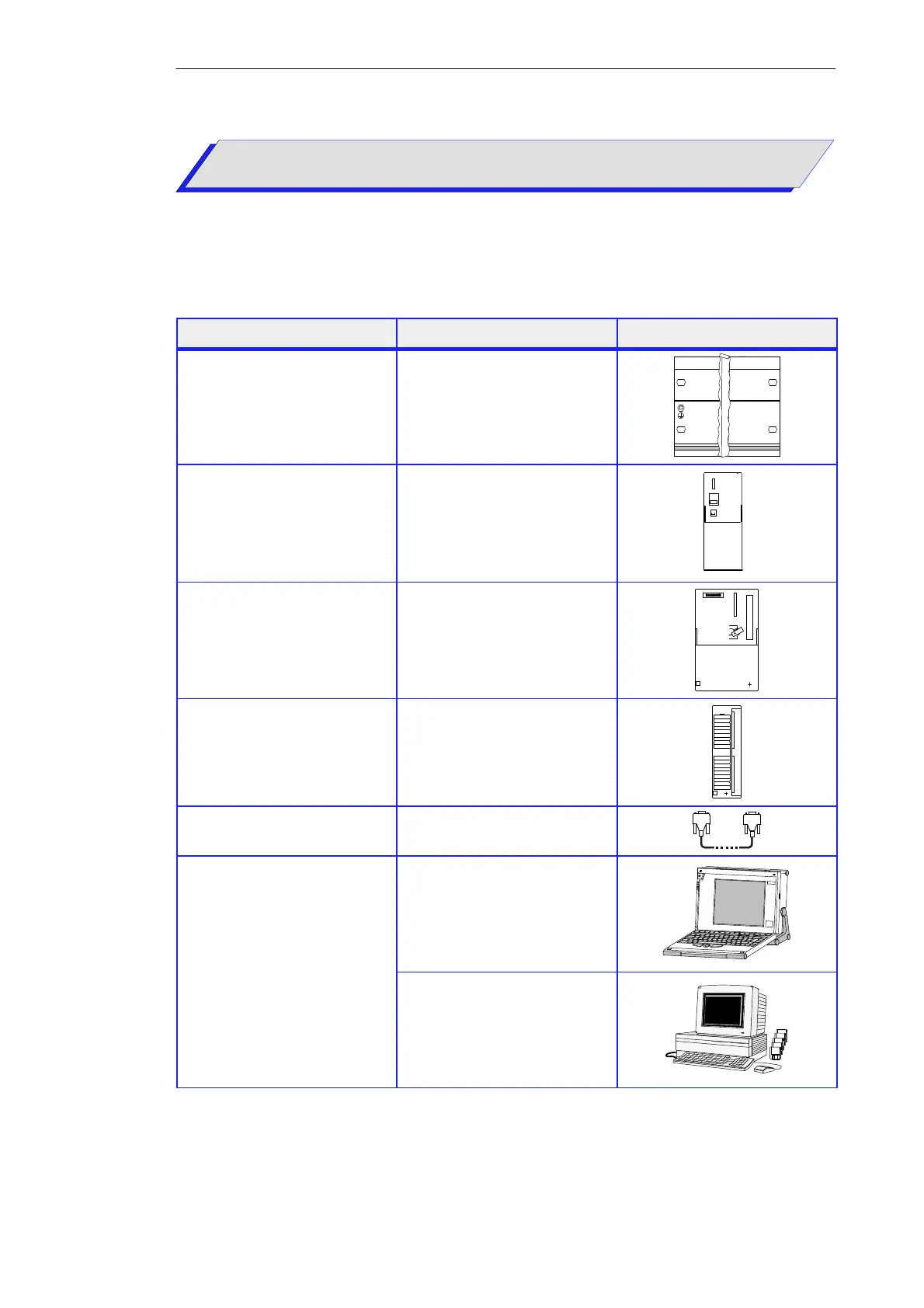

Component Function Illustration
Rail ... functions as a mounting rack for
an S7-300.
Power supply module (PS) ... converts the supply voltage
(120/230 VAC) to 24 VDC operating
voltage for supplying the S7-300.
CPU (central processing unit)
Backup battery (optional)
... executes the user program;
supplies the S7-300 backplane bus
with 5 V; communicates via the MPI
(multipoint interface) with other
CPUs, or with a programming
device/PC.
Simulator module (6ES7 374...) with
8 digital inputs and 8 digital outputs
... gives you the option of testing the
user program on startup and during
operation by simulating sensor
signals via switches and displaying
signal states at the outputs via LEDs.
MPI cable ... connects a programming
device/PC with a CPU.
Programming device (PG) with an
MPI module and pre-installed
STEP 7 software
or
... configures, assigns parameters,
programs, and tests the S7-300
programmable controller.
Personal computer (PC) with an MPI
module or PC/MPI cable with
pre-installed STEP 7 software
... configures, assigns parameters,
programs, and tests the S7-300
programmable controller.
What Hardware Do
You Need?
Requirements for Working with the Primer
Hardware Requirements

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
