CPU 31xC and CPU 31x, Technical data
Manual, Edition 08/2004, A5E00105475-05
7-1
Technical data of CPU 31x
7
7.1 General technical data
7.1.1 Dimensions of CPU 31x
Each CPU features the same height and depth, only the width dimensions differ.
• Height: 125 mm
• Depth: 115 mm, or 180 mm with opened front cover.
40
115
65
125

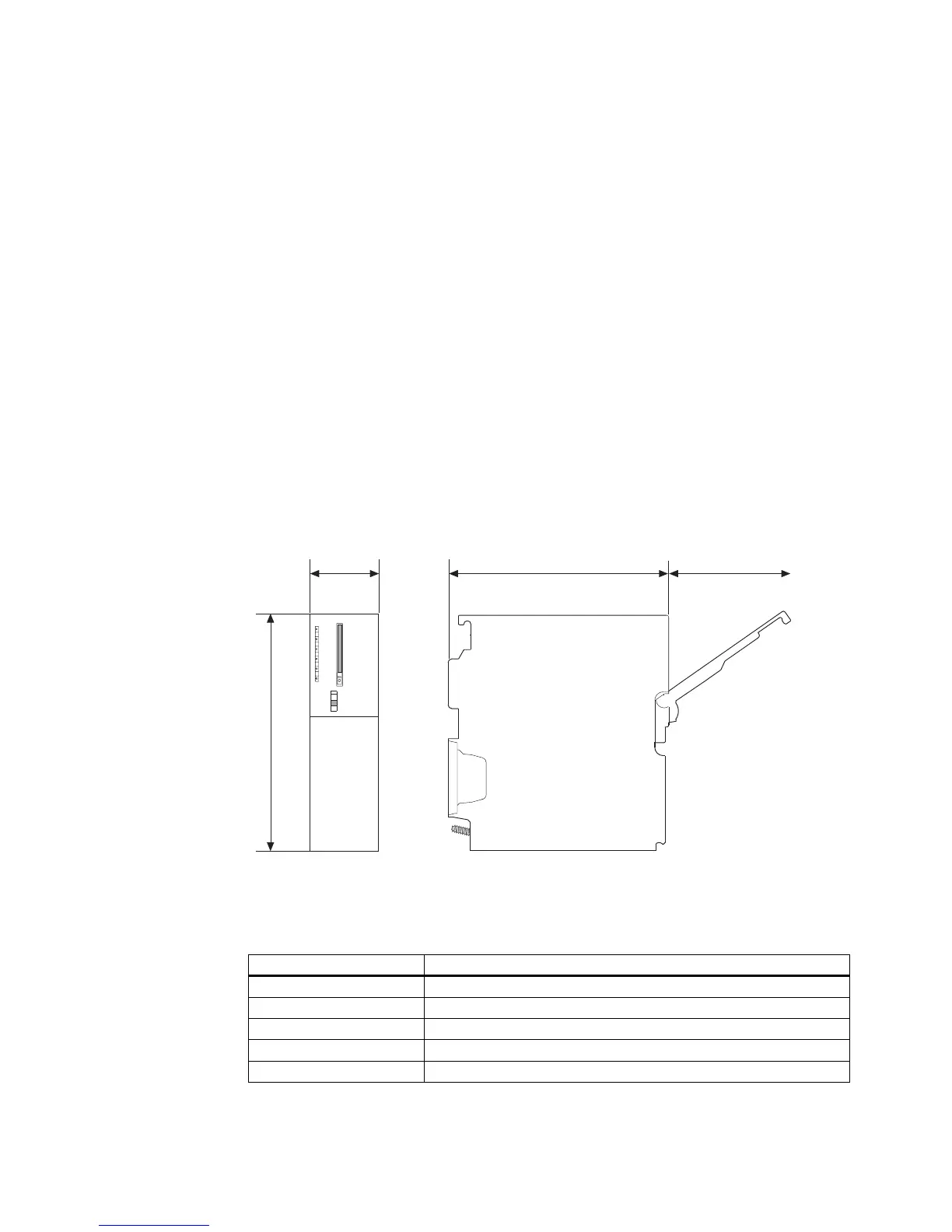

Figure 7-1 Dimensions of CPU 31x
Width of CPU
CPU Width
CPU 312 40 mm
CPU 314 40 mm
CPU 315-2 DP 40 mm
CPU 315-2 PN/DP 80 mm
CPU 317 80 mm
