1.2.5 Implementing a User Acknowledgment
This section supplements Section 5.3.9 of the manual.
1.2.5.1 Implementing a User Acknowledgment in the Safety Program of
the F-CPU of a DP Master
See manual, Section 5.3.9.
1.2.5.2 Implementing a User Acknowledgment in the Safety Program of
the F-CPU of an Intelligent DP Slave
Options for User Acknowledgment
You can implement a user acknowledgment in one of the following ways:
1. An operator control and monitoring system with which you can access the
F-CPU of the intelligent DP slave
2. An acknowledgment key that you connect at an F-I/O with inputs that is
assigned to the F-CPU of the intelligent DP slave
3. An acknowledgment key that you connect at an F-I/O with inputs that is
assigned to the F-CPU of the DP master

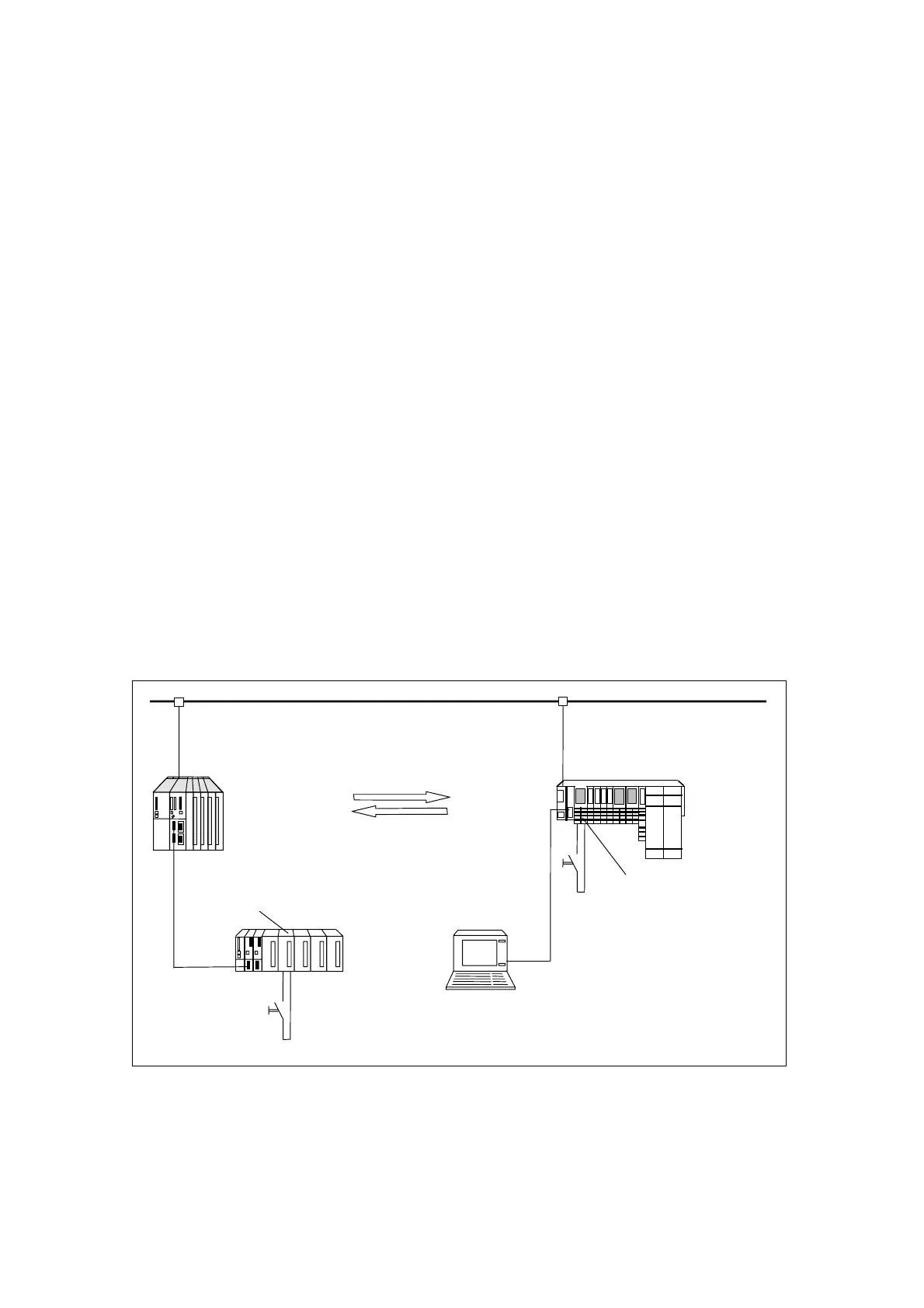

These three options are illustrated in the figure below.
For 3.: Safety-Related Master
to Slave Communication for
A
cknowled
g
ment Si
g
nal
S7-400 station
with CPU 416F-2
PROFIBUS-DP
ET 200M
ET 200S with
IM151-7 F-CPU
F-DI
F-DI
2.
3.
Operator control and
monitoring system
1.
