Siemens SIMATIC STEP 7 V5.2 User Manual

Programming a Multiple Instance
10-5
STEP 7 Getting Started
A
5E00171228-01

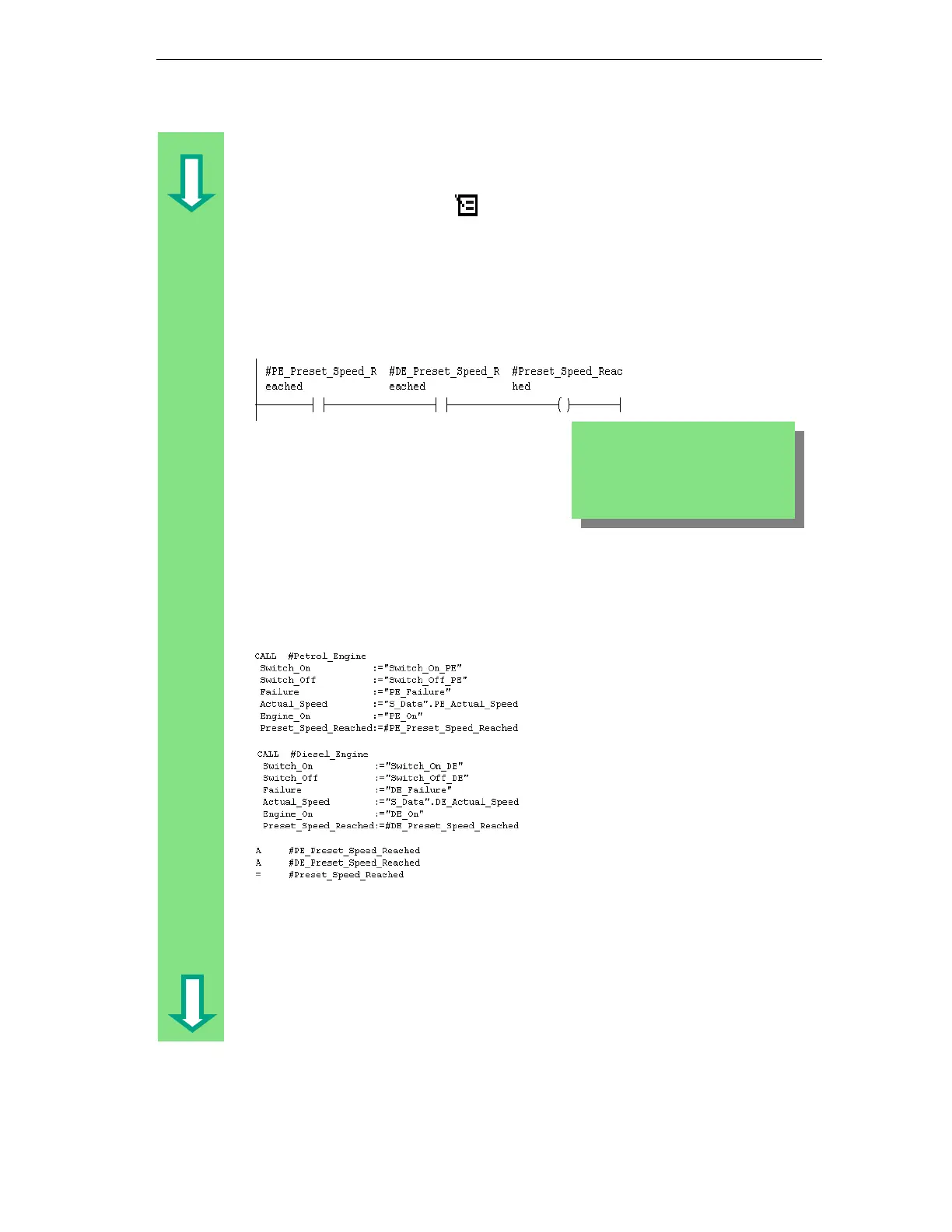

Insert a new network and program a series circuit with the corresponding
addresses. Then save your program and close the block.
Use the respective temporary
variables. You will recognize the
temporary variables in the pull-down
menu by the symbols displayed on the
left.
Then save your program and close the
block.
Programming FB10 in Statement List
If you are programming in Statement
List, select the input area under a new
network and enter the STL instructions
shown here.
Then save your program and close the
block.
The temporary variables
("PE_Setpoint_Reached" and
"DE_Setpoint_Reached") are
supplied to the output parameter
"Setpoint_Reached," which is then
processed further in OB1.
