Technical specifications
5.7 Dimension drawings
Comfort Panels INOX PCT
Compact Operating Instructions, 05/2018, A5E38804191-AA
41
Note that the IP degree of protection and the enclosure type are only guaranteed if the
following is observed:
● The mounting gasket fits completely to the mounting cut-out, see section "Inserting the
mounting seal (Page 23)".
● The conditions for the mounting cut-out. Read the corresponding information in section
"Notes on installation (Page 22)".
● The device has been installed according to the information provided in this document.

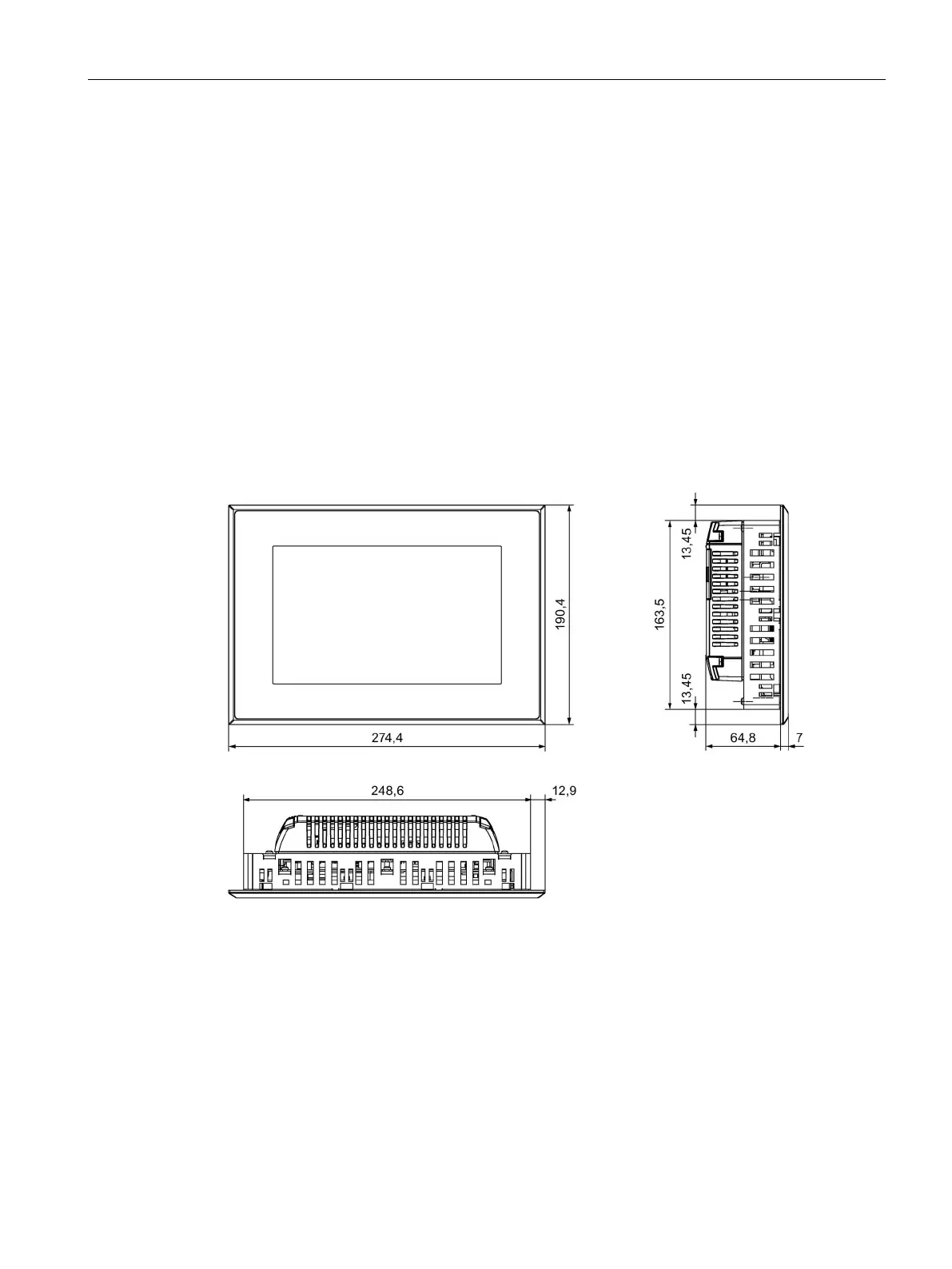

9" device dimension drawing
All dimensions in mm
