Overview
1.4 Interfaces
Comfort Panels INOX PCT
Compact Operating Instructions, 05/2018, A5E38804191-AA
9
Bottom view
①
Ports
②
Cutout for mounting clip
Rear view
See standard device, Comfort Panels operating instructions
1.4
Interfaces
Interfaces of the 9" and 12" variants

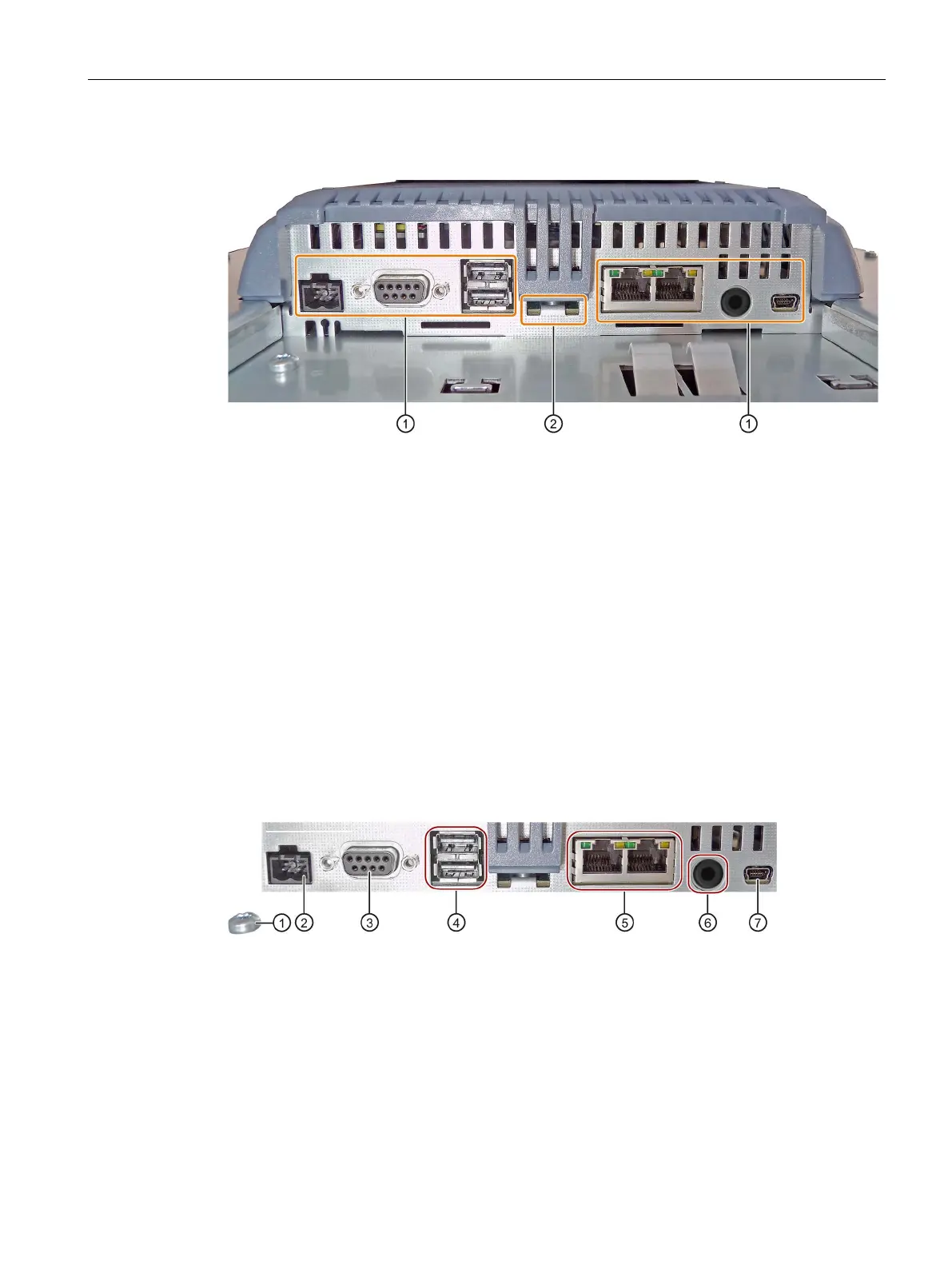

The figure shows the interfaces of the following HMI devices:
● TP900 Comfort INOX PCT
● TP1200 Comfort INOX PCT
①
Connection for equipotential bonding (ground)
⑤
X1 PROFINET (LAN), 10/100 Mb
②
X80 power supply connector
⑥
X90 Audio Line OUT
③
X2 PROFIBUS (Sub-D RS422/485)
⑦
X60 USB type Mini B
④
X61 / X62 USB type A
