Siemens SIMOCODE pro V PB User Manual

Mounting, wiring, connecting, system interfaces, configuration guidelines
12.2 Wiring, connecting
SIMOCODE pro
208 System Manual, 05/2019, A5E40507475002A/RS-AD/004

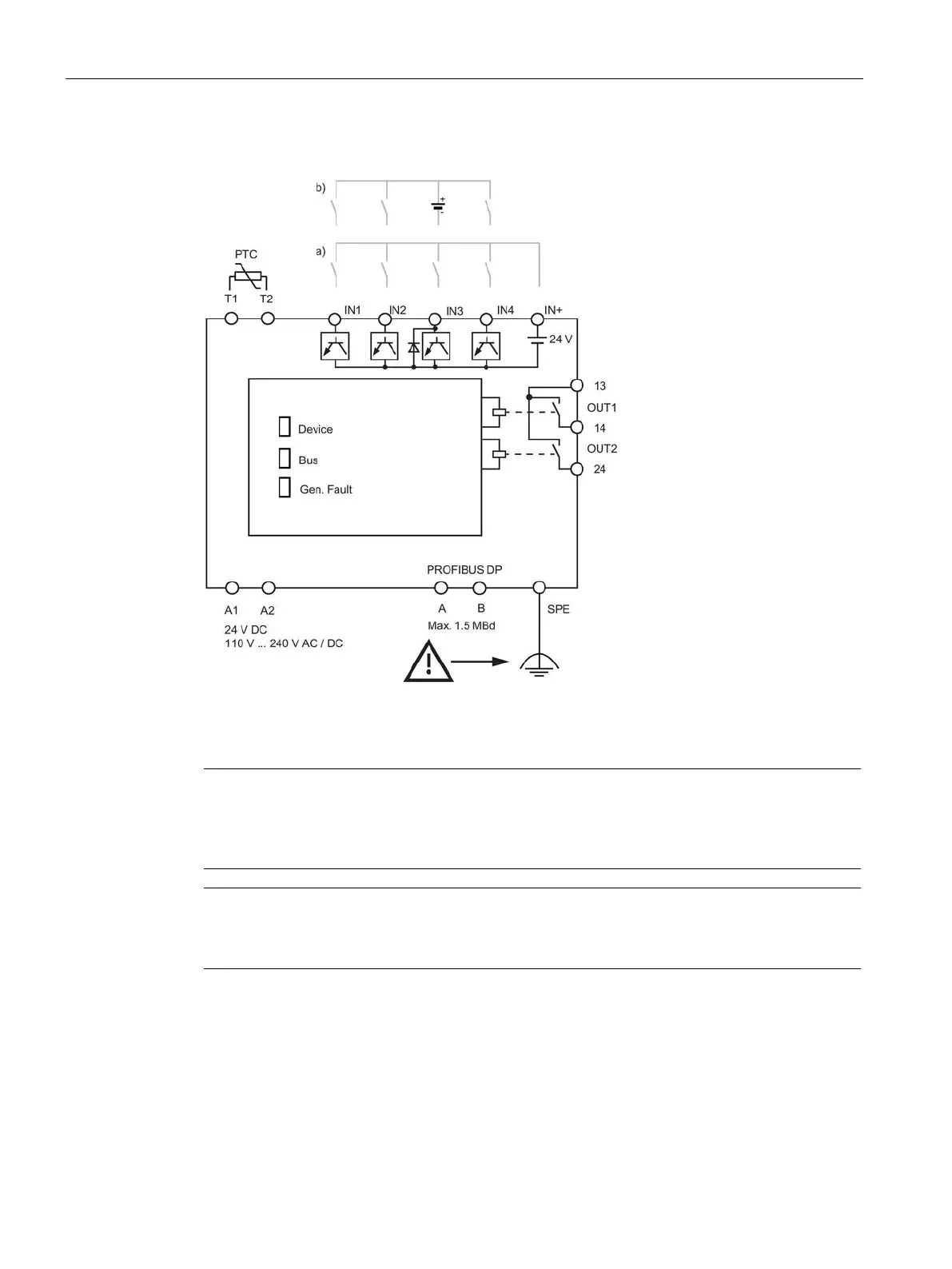

Figure 12-17 Connection example SIMOCODE pro S basic unit
Note
Only three inputs can be used
With an external 24 V DC supply, only three inputs can
be used
(
see "Power supply to the inputs of the basic unit" above).
Note
Baud rates PROFIBUS DP
Baud rates up to 1.5
Mbits are possible via bus terminals A/B.
