Service Instructions NFF Stromag Dessau
IP 66 safety in motion
Electromagnetic Double Face Spring – Applied Brake 01.06.2009
7
4 Construction, functioning, construction characteristics
Fig. 1

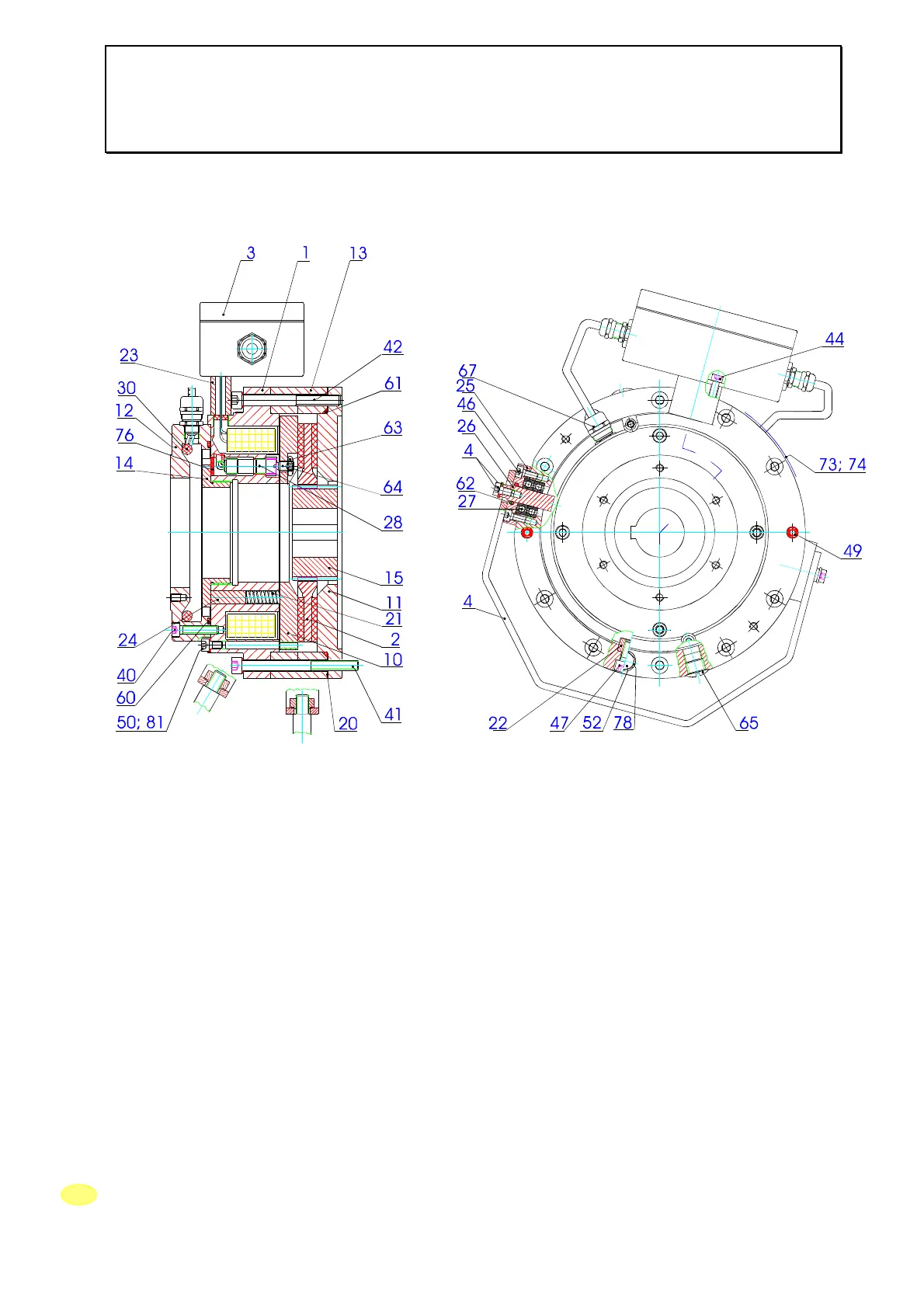

4.1 Designation of individual components
(shown size NFF 16 with option speedometer installation)
1 Coil body with coil 30 condensation heater
2 friction lining assy. 40 screw for tacho flange
3 terminal box assy. 41 brake mounting screw
4 hand lever assy. 42 cylindric screw
10 armature disc 46 mounting
screw for hand release end cap
11 brake flange 47 screw for locating dog
12 tacho flange 49 emergency release screw
13 outer body 50 cap screw for emergency release
14 adjusting ring 52 screw for lockable hand release
15 hub 60 seal ring for tacho
20 shim 61 seal ring for brake flange
21 compression spring 63 counter nut for micro switch
22 locating doc 64 set screw (micro switch)
23 terminal box spacer 65 cap screw for airgap measurement
24 brass pin 67 gland
25 hand release end cap 73 nameplate
26 hand release pivot pin 74 metal tack (to mount identification plate)
27 grooved ball bearing 76 adhesive
28 micro switch 78 washer for pos. 52
81 seal ring for pos. 50
148
