Interfaces
3.9 USB interfaces
SIMOTION D4x5
56 Manual, 02/2012
3.9 USB interfaces
The USB interfaces are used for upgrading the SIMOTION D4x5 via a USB stick.
Table 3- 15 Interfaces X125 and X135
Features Versions
Connector type Double USB socket – type A
Version USB 2.0
Current carrying capacity 0.5 A per channel
Note
The 5 V power supply is designed to be short-circuit proof.
The USB interfaces are located on the front of the SIMOTION D4x5.
86%LQWHUIDFHV

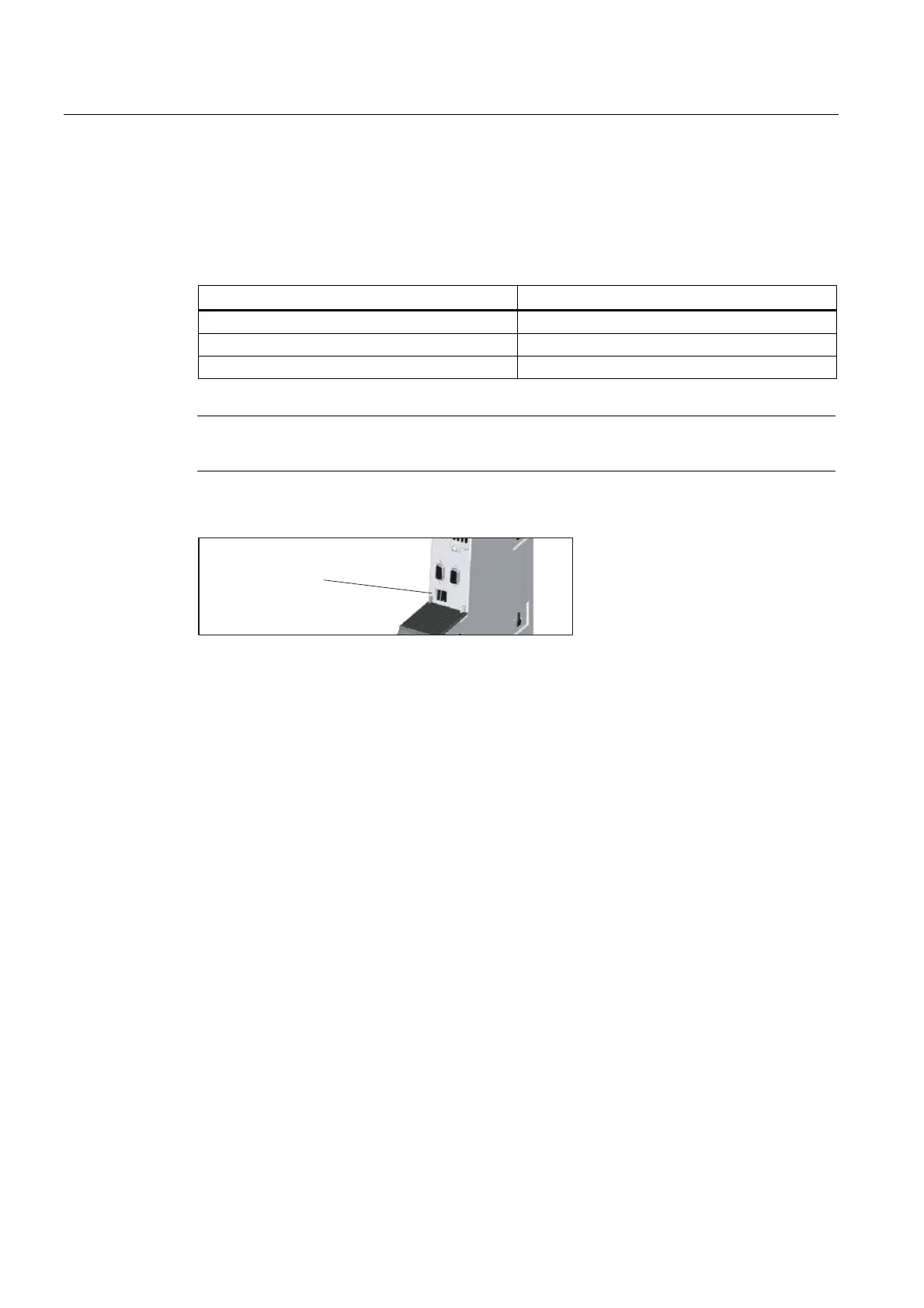

Figure 3-8 Location of USB interfaces (X125 on left, X135 on right)
3.10 Option slot
Plug-in options
Either of the following Option Boards can be plugged into the option slot:
● TB30 Terminal Board, for further details see Section Description of TB30 (Page 80)
● CBE30 Ethernet Comm
unication Board, for further details see Section CBE30
comm
unication board (Page 102).
