Supplementary system components
6.3 TB30 terminal board
SIMOTION D4x5
86 Manual, 02/2012
6.3.3.5 Analog inputs and outputs

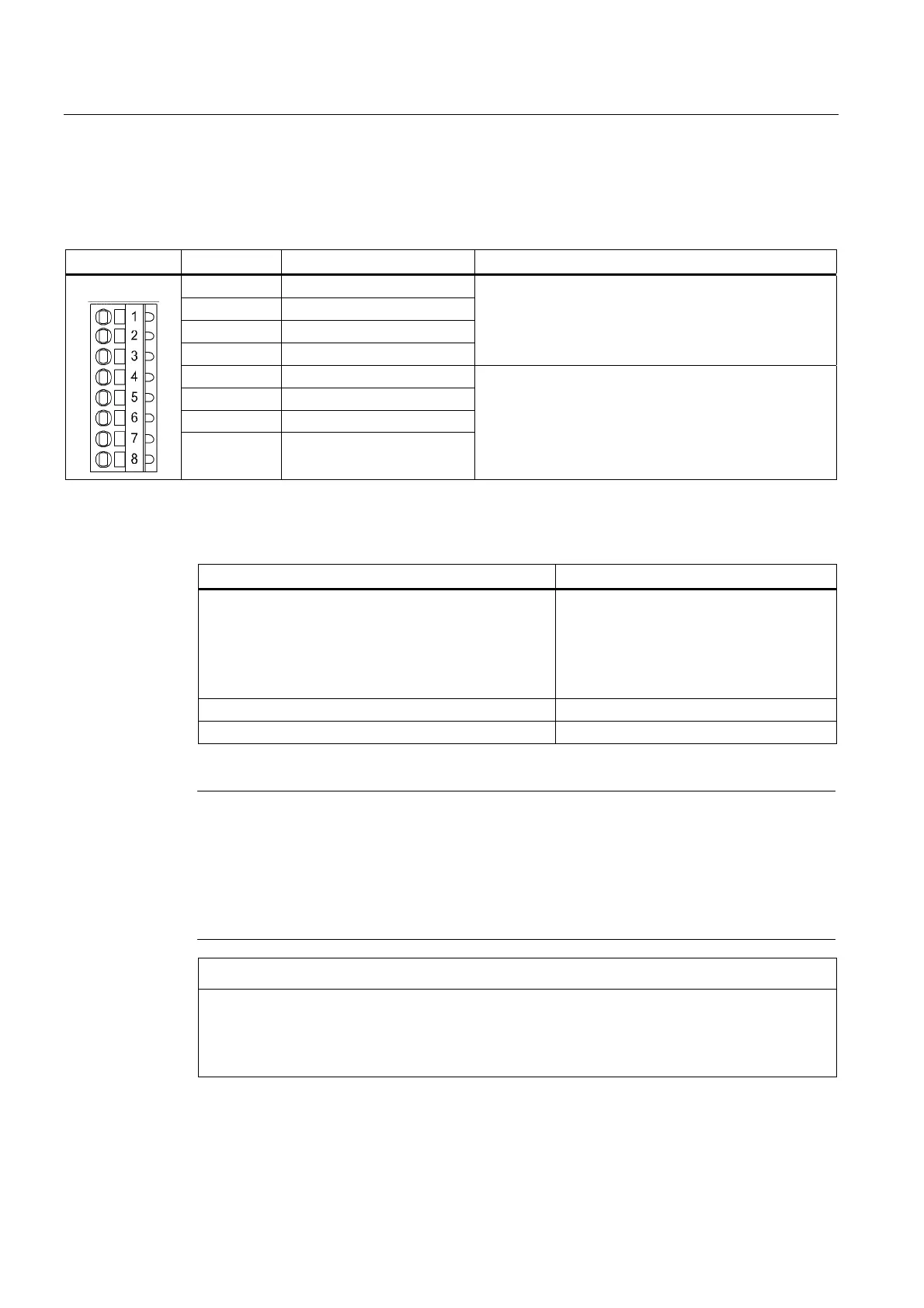

Table 6- 7 Terminal block X482
Terminal Designation
1)
Technical specifications
1 AI 0+
2 AI 0-
3 AI 1+
4 AI 1-
Analog inputs (AI):
- Voltage: -10 V to +10 V
- Internal resistance: 65 kΩ
- Resolution: 13 bits + sign
5 AO 0+
6 AO 0-
7 AO 1+
8 AO 1-
Analog outputs (AO):
- Voltage range: -10 V to +10 V
- Load current: Max. -3 mA to +3 mA
- Resolution: 11 bits + sign
- Continuous short-circuit-proof
Table 6- 8 X482 wiring
Features Type
Connectable cable types
- Rigid
- Flexible
- Flexible, with end sleeve without plastic sleeve
- AWG/kcmil
Conductor cross-sections
0.14 mm
2
to 0.5 mm
2
0.14 mm
2
to 0.5 mm
2
0.25 mm
2
to 0.5 mm
2
26 to 20
Stripped length 8 to 9 mm
Tool Screwdriver 0.4 x 2.0 mm
Note
An open input is interpreted as approximately "0 V".
The power supply of the analog inputs/outputs of the TB30 is via the option slot of the D4x5
Control Unit and not via X424.
The shield is connected to the Control Unit. For further information, see
SIMOTION D4x5
Commissioning and Hardware Installation Manual, "Connection" chapter.
CAUTION
The common-mode range must not be infringed.
The analog differential voltage signals can have a maximum offset voltage of ±30 V with
respect to the ground potential. If the range is infringed, incorrect results may occur during
analog/digital conversion.
