Interface assignments

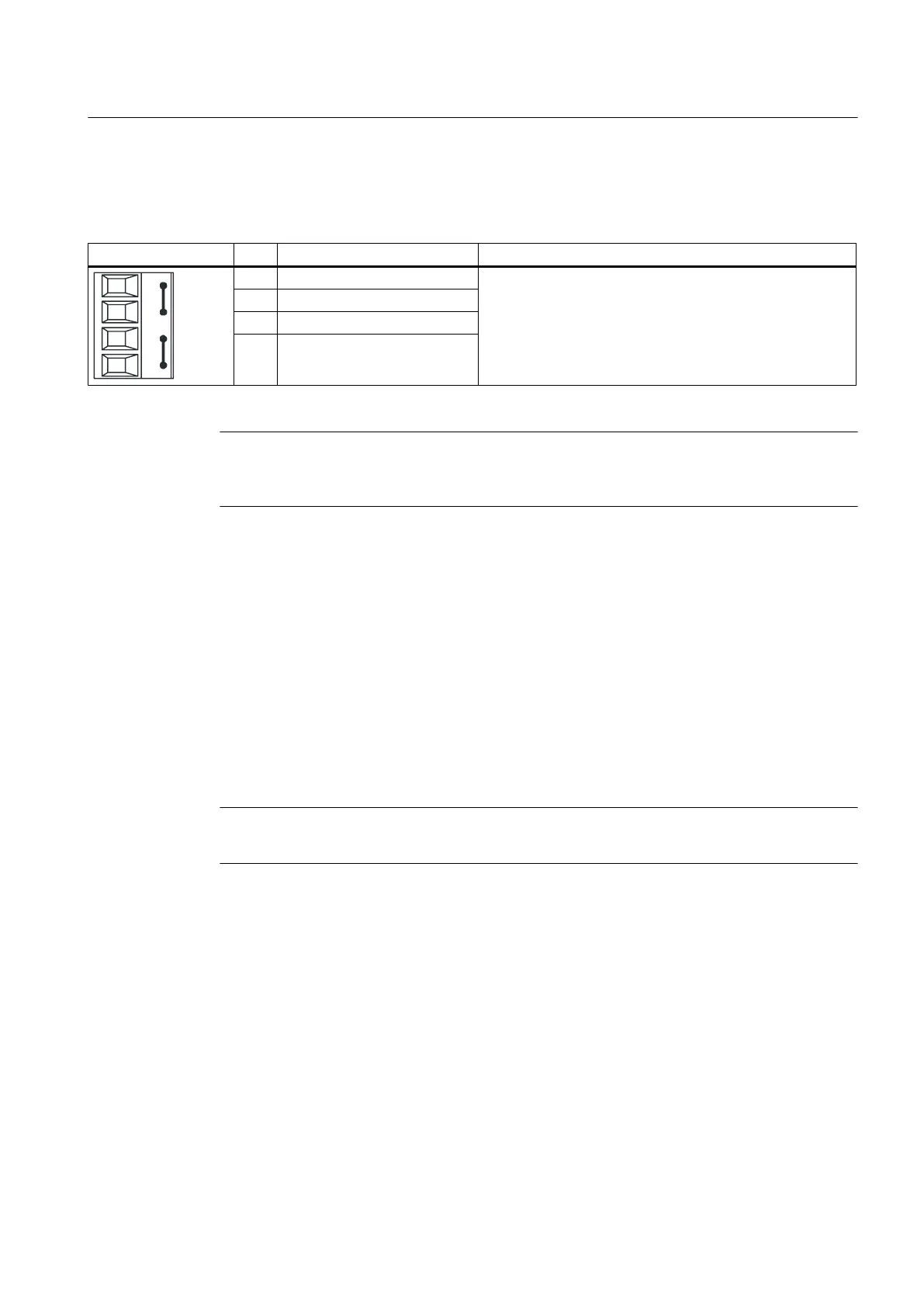

Table 4-18
Interface X124
Representation Pin Description Technical details
+ Electronic power supply Voltage: 24 V DC (20.4 V - 28.8 V)
Current
consumption: max. 0.8 A (without DRIVE-CLiQ and
digital outputs)
max. current via the bridges in the connector: 10 A at 55 °C
+ Electronic power supply
G Electronic ground
G Electronic ground
Note
When using external power supplies, e.g., SITOP, the ground potential must be connected
with the protective ground terminal (PELV).
See also
Connecting the power supply
(Page 75)
4.9 Measuring sockets
Interface features
The T0 - T2 measuring sockets are used to output analog signals Any interconnectable signal
can be output to any measuring socket on the control unit.
Note
The
measuring sockets are suited for multiple-spring wire connectors with a diameter of 2 mm.
Interfaces
4.9 Measuring sockets
SIMOTION D410
Manual, 04/2014 59
