5.4 Mounting SIMOTION D410 in the Power Module Chassis

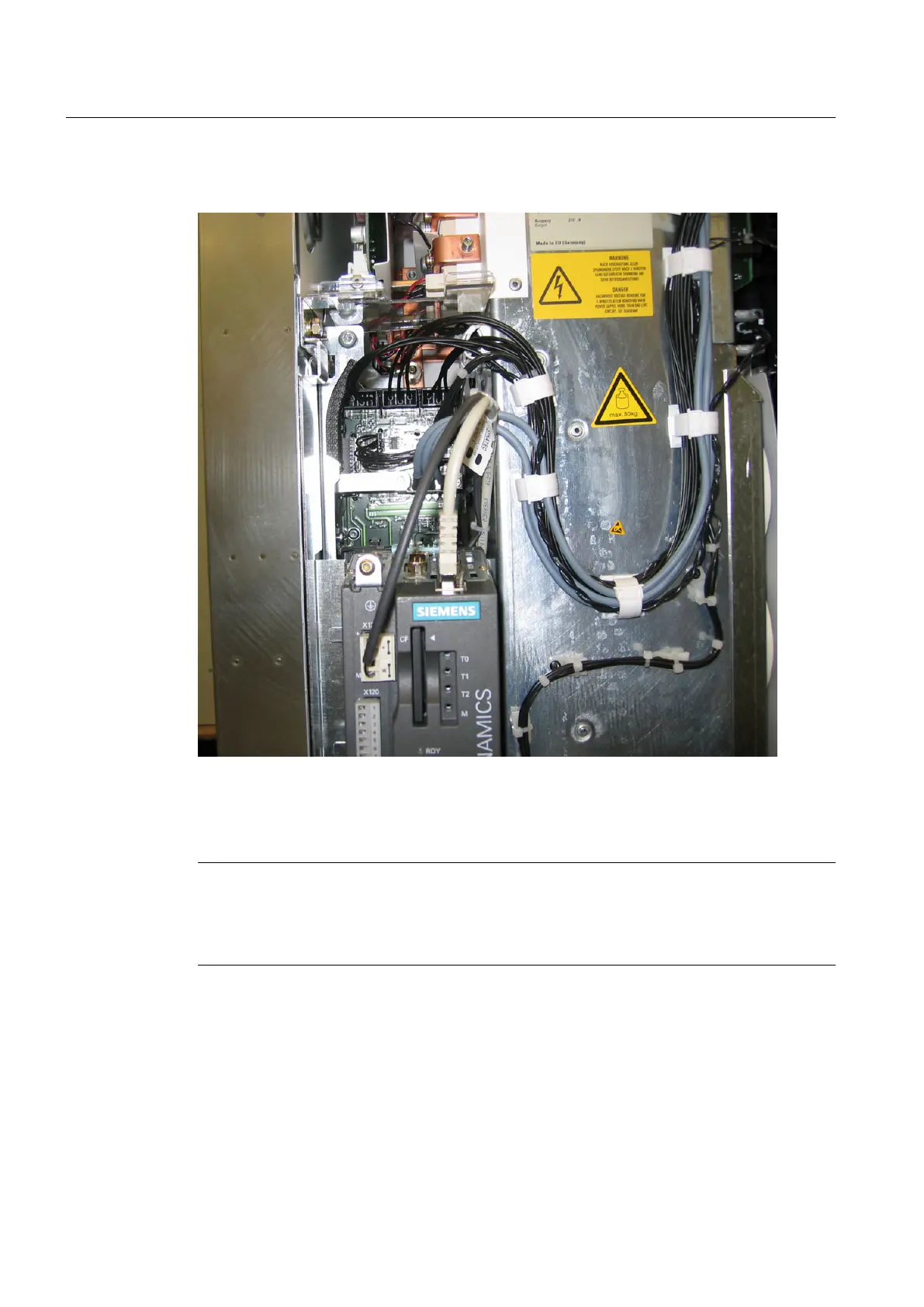

Figure 5-3 Mounting the CU310, for example, in the Power Module Chassis, FX frame size
The DRIVE-CLiQ cable and the cable for the 24 V supply must be correctly routed so that the
front flap can close.
Note
For
the Power Module, a connecting cable is also supplied for the power supply of the D410.
Customers must connect-up this cable.
This means that the D410 no longer has to be supplied from an external 24 V DC.
Assembling
5.4 Mounting SIMOTION D410 in the Power Module Chassis
SIMOTION D410
66 Manual, 04/2014
