Siemens SIMOTION D410

The following nameplate includes the MAC address of the PROFINET interface (ports X200
and X201) and is located on the front side of the module.
3URGXFWQXPEHU
3URGXFWVWDWH
%DUFRGH0$&$GGUHVV
$UHDIRUDSSURYDOVLGHQWLILHV
2UGHU
QXPEHU0/)%1R
0$&DGGUHVV
7\SHGHVLJQDWLRQ
9HUVLRQ
$(
;;;;;;
$8$%$$
'31
$

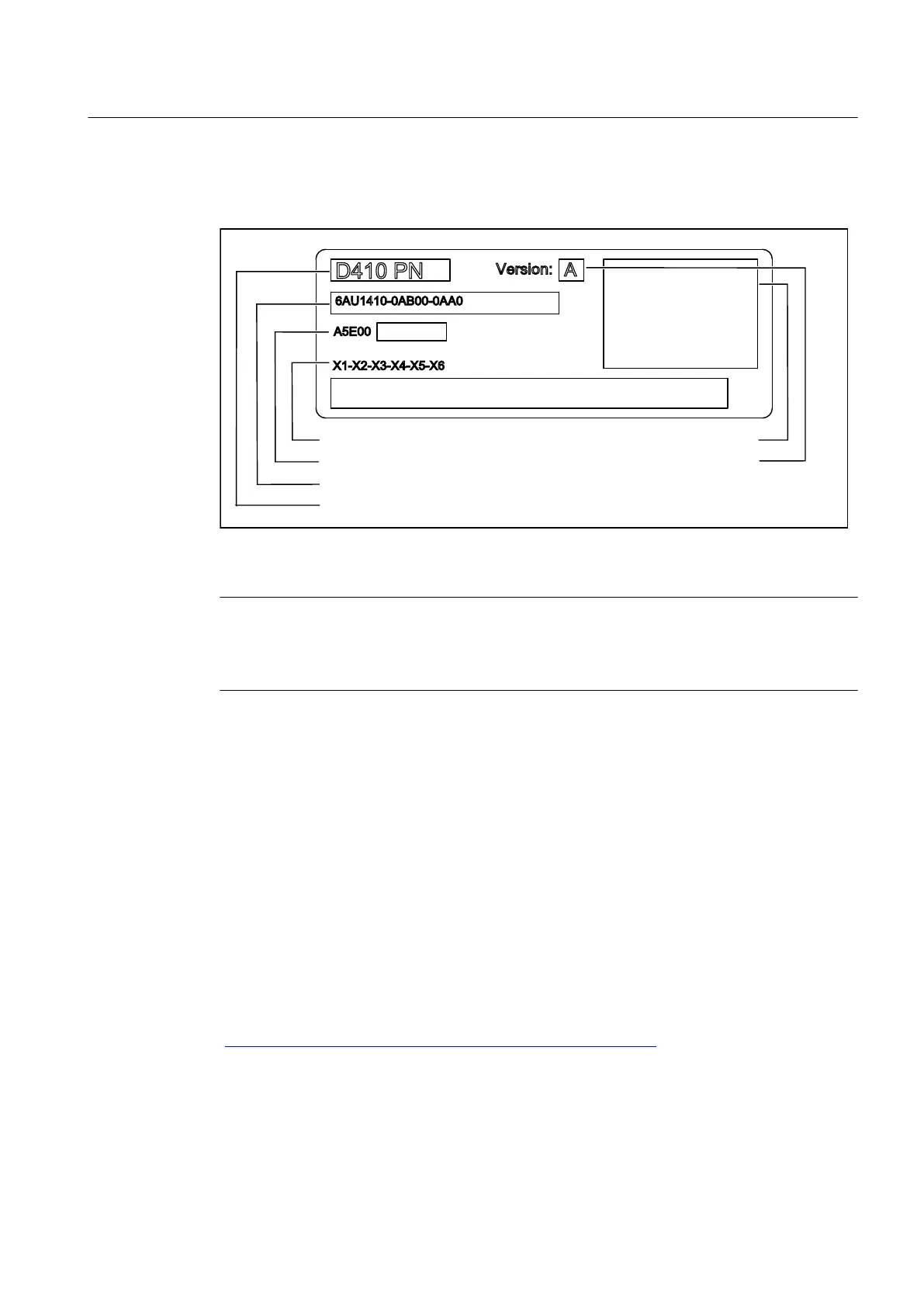

Figure 2-7 SIMOTION PN nameplate (example)
Note
The contents of the individual nameplate fields on the current module may differ from those
described in this Manual (e.g., updated product status, space for approvals and
identifications, etc.).
2.5 The CompactFlash card
CF card
CF cards with different storage capactities are available for SIMOTION D410. At the time of
writing, these were:
● 1-GB CF, order number 6AU1400-2PA0*-0AA0
● 512-MB CF, order number 6AU1400-2NA00-0AA0
You will find detailed information on the compatibility relationships for the CF card, boot loader
version, SIMOTION D hardware and SIMOTION firmware version in the software compatibility
list. You can find this list both in the documentation that comes with the
SIMOTION SCOUT DVD under \1_Important\Germany\Kompatibilitaet\… and on the Internet
(http://support.automation.siemens.com/WW/view/en/18857317).
Description
2.5 The CompactFlash card
SIMOTION D410
Manual, 04/2014 31
