Configuration
3.3 Dimensioning

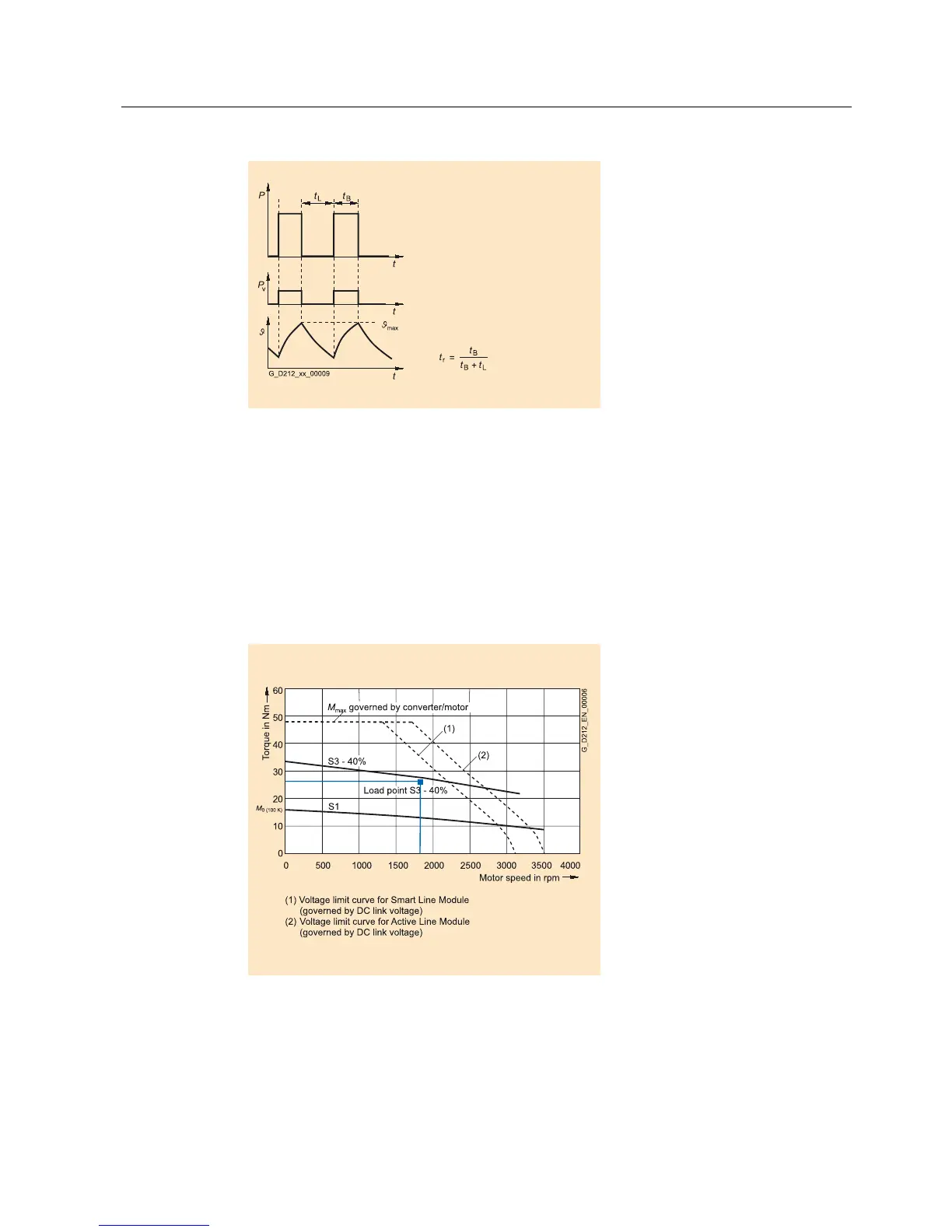

Figure 3-4 S3 duty (intermittent operation without influencing starting)
Fixed variables are usually used for the relative on period:
• S3 – 60%
• S3 – 40%
• S3 – 25%
The corresponding motor characteristics are provided for these specifications. The load
torque must lie below the corresponding thermal limiting curve of the motor. An overload
must be taken into consideration for load duty cycles with varying on periods.
In summary, a motor is selected as follows:
Figure 3-5 Selecting motors for load duty cycles with varying on periods using a synchronous motor
as an example
General Section for Synchronous Motors
Configuration Manual, (PJAL), 11.2005 Edition, 6SN1 197-0AD07-0BP4
3-9
