General Section for Synchronous Motors
Configuration Manual, (PJAL), 11.2005 Edition, 6SN1 197-0AD07-0BP4
2-1
Mechanical Data
2
2.1 Definitions
Types of construction (acc. to IEC 60034-7)
Standard for 1FK☐ motors: IM B5
Standard for 1FT☐ motors: SH 28 to 100: IM B5
SH 132 to 160: IM B5, IM B35 (refer to
Catalog)
Without having to be specifically ordered, the motors can also be used in the following
types of construction:
for 1FK☐
for 1FT☐
for 1FT☐
SH 28 to 100
SH 28 to 100
SH 132 to 160
IM V1, IM V3
IM V1, IM V3
IM V15, IM V36
The types of construction IM V1, IM V3, IM V15 and IM V36 are only available for parts of
the 1FT6 product range (refer to the Catalog).
,0%
,0%
,09
,09
,09
,09
,0%
,09
,09

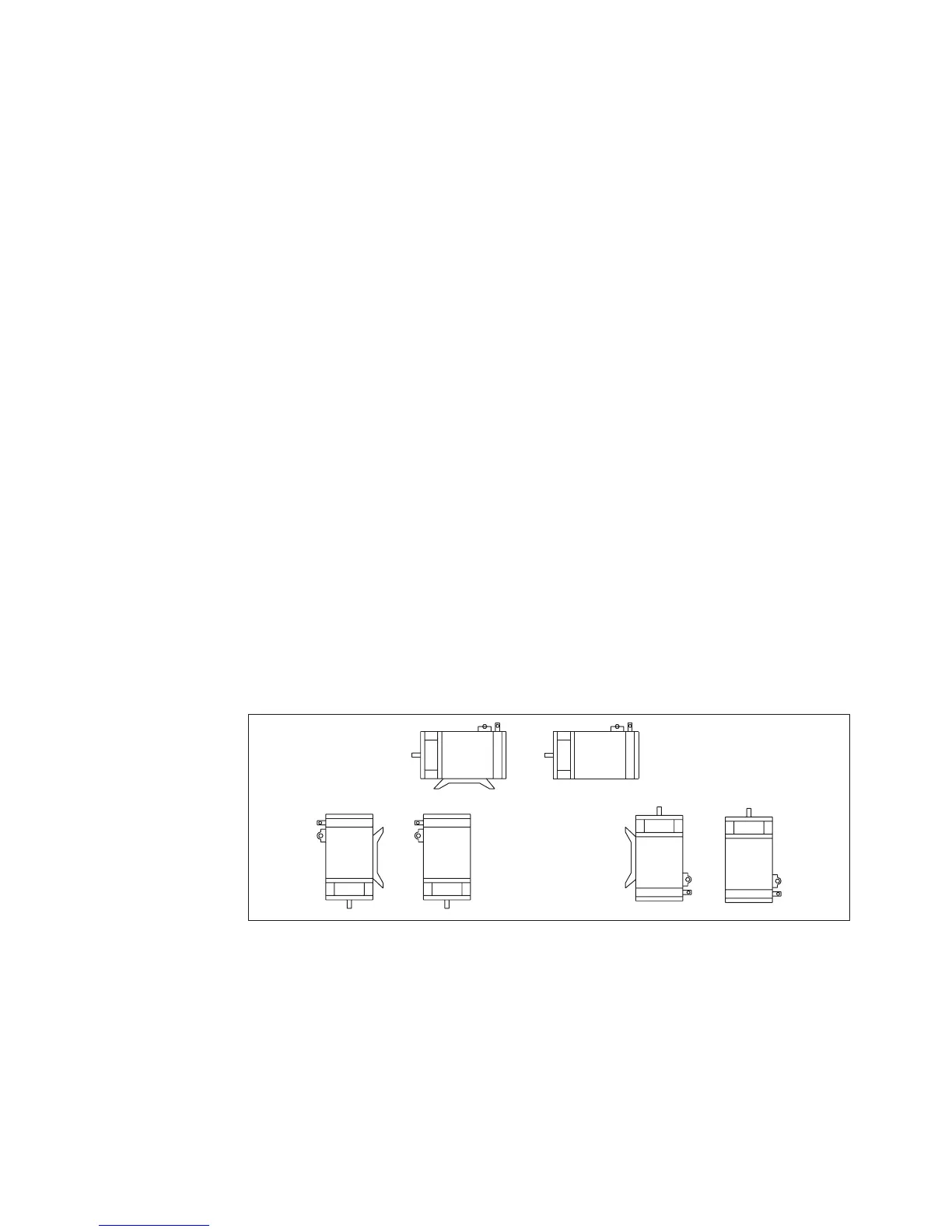

Figure 2-1 Types of construction
