10.98 Installation
Siemens AG 6SE7087-6KP50
SIMOVERT MASTERDRIVES Operating Instructions 5-5
SIEMENS
A
S1
BX101
CX103
Fixing screw for side
cover
Fixing screw for
side cover
Designation plates
for the optional
boards

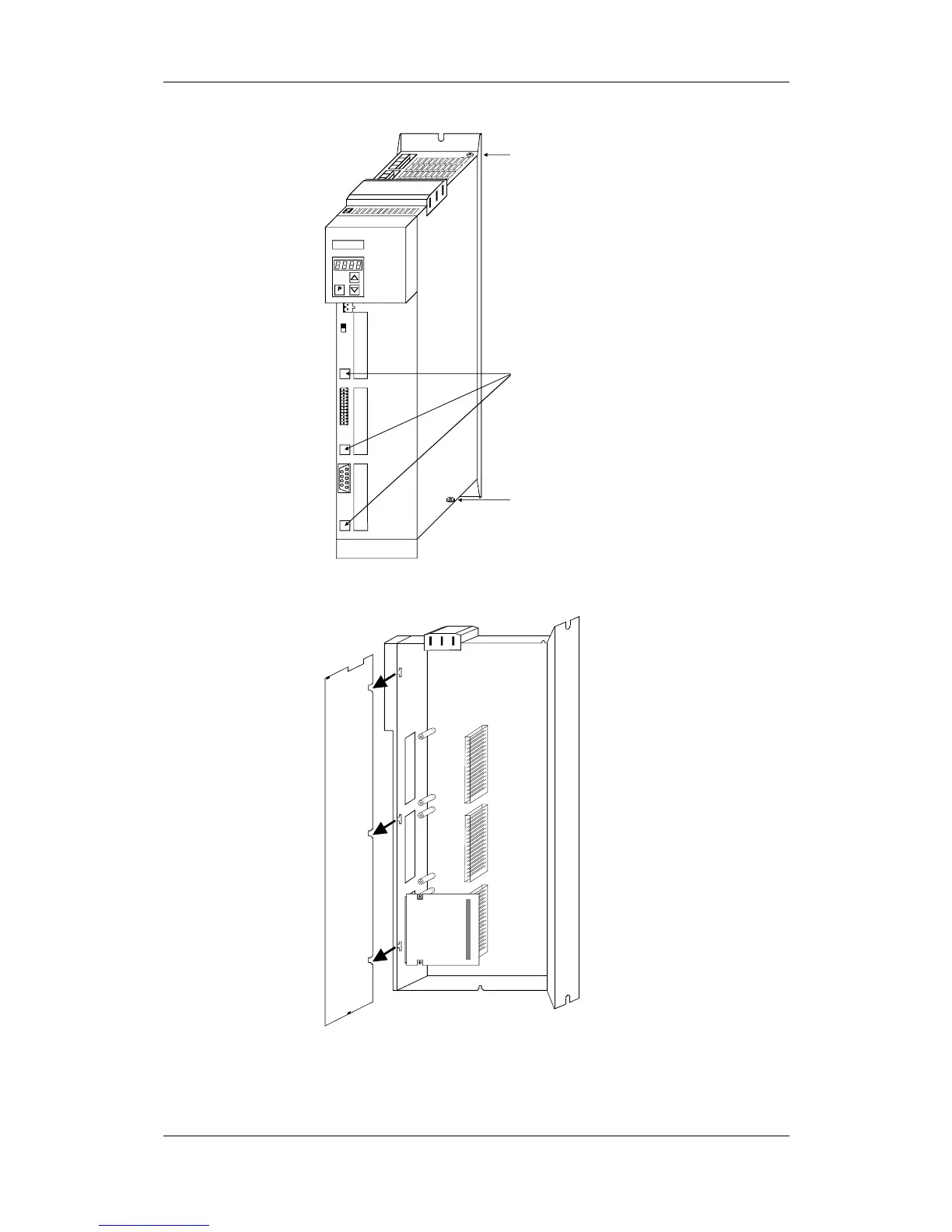

Fig. 5-4 Position of the fixing screws on the right-hand side wall
Slot A
Slot B
Slot C
Rear wall
Right-hand side wall open
Fig. 5-5 Removing the right-hand side wall
