Installation 10.98
6SE7087-6KP50 Siemens AG
5-8 Operating Instructions SIMOVERT MASTERDRIVES
Slot C
Slot C
ó
ì
ì

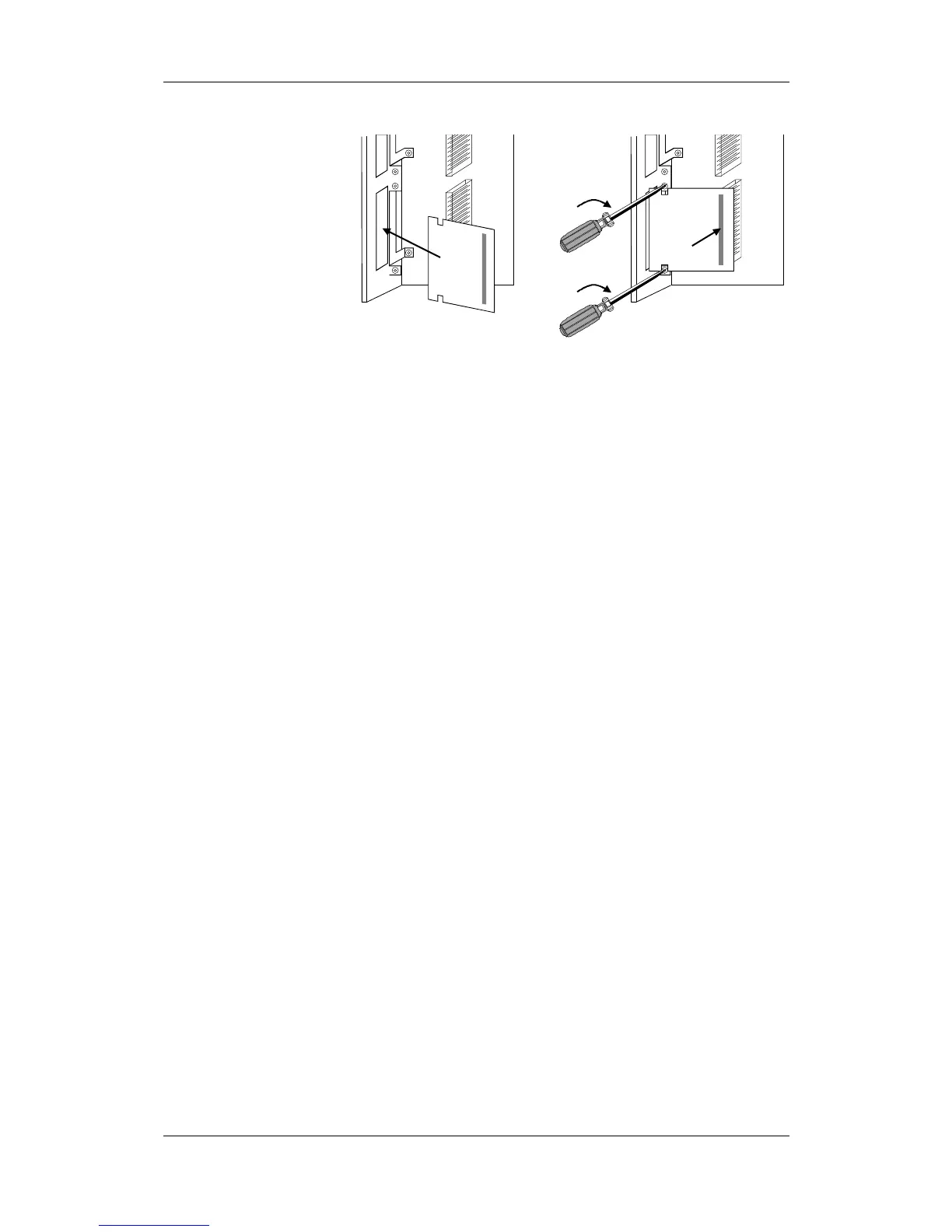

Fig. 5-7 Installing the optional board
♦
Keep the front of the unit tilted about approximately 30 ° forwards
and insert the cutout of the lower guide plate - approaching from
below - into the strip on the power section.
♦
Insert the connection cable plug into the power section socket and
close the locking lever.
♦
Carefully return the front of the unit into the housing. Make sure that
the guide plates on the right-hand side of the front (viewed from the
front) enter the housing cutouts.
♦
Screw the front of the unit securely to the power section with the two
fixing screws.
♦
Re-connect all previously removed connecting cables.
♦
Check all connecting cables and the shield to make sure they sit
properly and are in the correct position.
♦
To designate the optional board, insert the relevant designation
plate into the envisaged position on the front of the unit.
♦
After powering up the voltage, you can log on the optional boards in
the software of the unit and commence start-up.
Assembling and
mounting the unit
Connecting up the
unit
Designating the
optional board
