Connecting-up 10.99
6SE7087-6KP50 Siemens AG
7-2 Operating Instructions SIMOVERT MASTERDRIVES
SIEMENS
X100
A
S1
BX101
CX103
X3 DC link
busbars
PMU
External DC24 V supply,
RS485 (USS) X100
Bus terminating resistor (USS) S1
Terminal strip X101
RS232 / RS485 (USS) X103
Slot A
Slot B
Slot C
Motor connection X2
Safe OFF (optional) X533
Shield connection for
control cables
Shield
connections for
motor cable
PE3
+
−

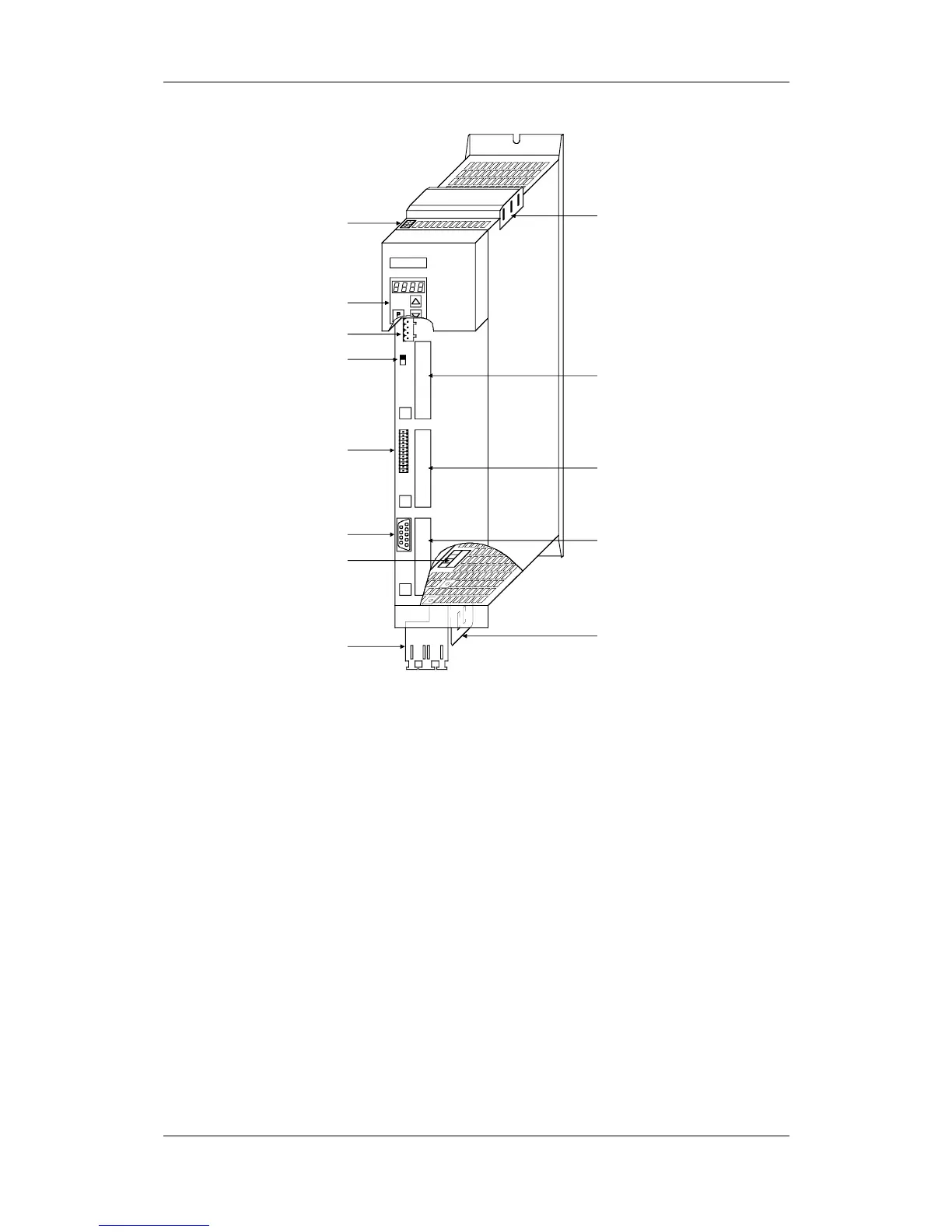

Fig. 7-1 Connection overview of units up to 90 mm wide
