10.99 Parameterization
Siemens AG 6SE7087-6KP50

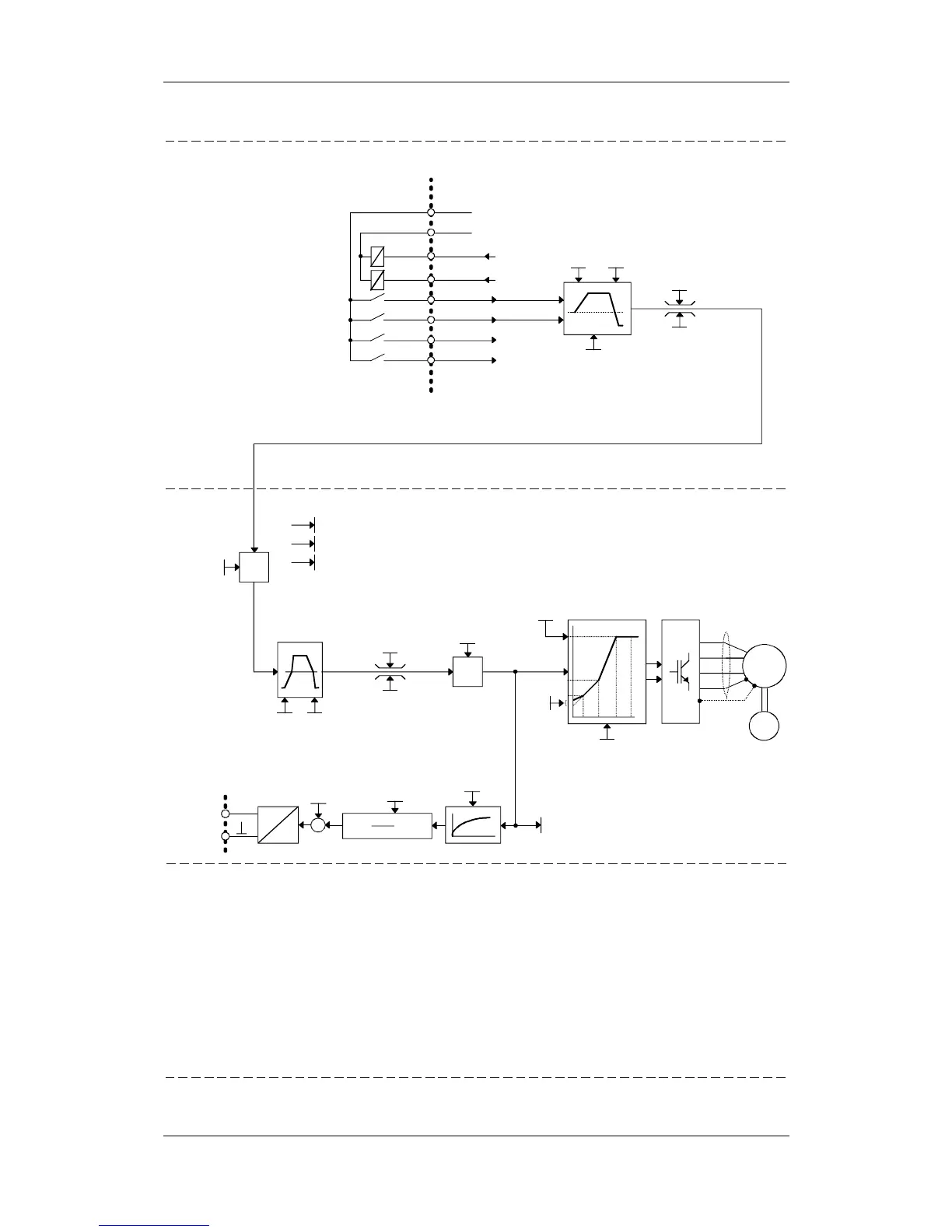

SIMOVERT MASTERDRIVES Operating Instructions 8-19
"
"
"
"
Type of control
V/f control
n(max, FWD speed)
P452.1
n(max, REV speed)
P453.1
Accel Time
P462.1
Decel Time
P464.1
Volts Curve1
P327
Freq Curve1
P326
U
f
Disp Freq Conn
r043.2
(=Frequency actual value)
Ref speed
P353
P24
M24
1 = Operation
0 = Fault
1 = Raise MOP
1-Edge = Acknowledge
1 = ON 0 = OFF1
-X101/1
1 = Lower MOP
MOP Accel Time
P431
MOP Decel Time
P432
Conf MOP
P425
MOP(max)
P421
MOPi(min)
P422
00x0 = ... Without storing after OFF
00x1 = ... Storing after OFF
r003 Output Volts
r004 Output Amps
r006 DC Bus Volts
AnaOut Smooth
P642.1
AnaOut Scale
P643.1
AnaOut Offset
P644.1
A
D
+/- 10 V
-X101/11
y[V]= P643.1
x
100 %
Analog output
x
y
-X101/2
-X101/3
-X101/4
-X101/5
-X101/6
-X101/7
-X101/8
-X101/12
AA
Setpoint and command source
Terminal strip and motorized potentiometer
Type of encoder:
Without encoder
Norm.
Motor
encoder
Motor
3~
.1 .2 .3 .4
.3 .4
.2
.1
Boost
P325
Norm.
Ref Freq
P352
