Siemens SINAMICS DCM Compact User Manual

12-pulse applications
Compact User Manual, 09/2015, A5E34871844H
11
12-pulse parallel connection
3
3.1
Topologies
Topology

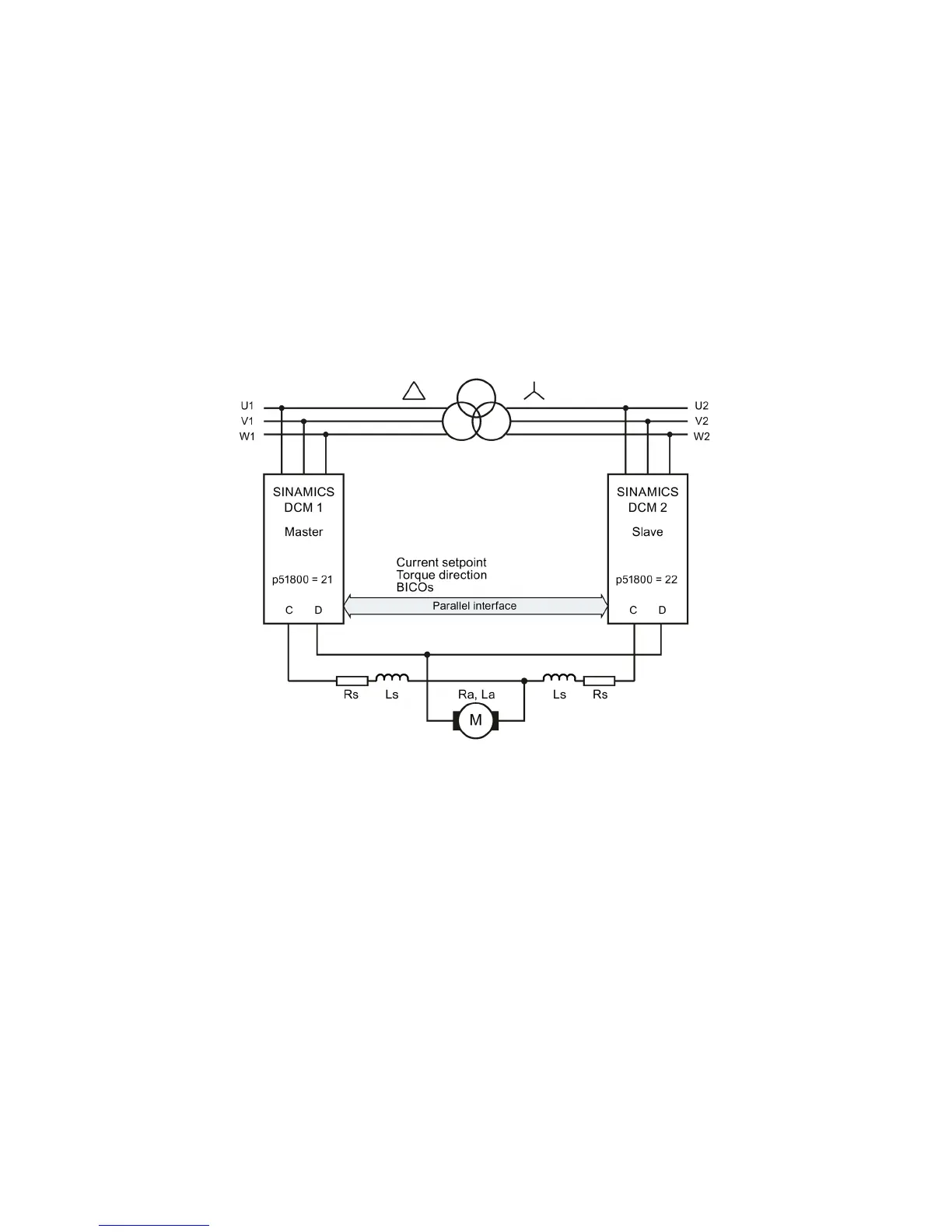

The following diagram shows the topology of a 12-pulse parallel connection.
Figure 3-1 12-pulse parallel connection (1), block diagram
The following diagram shows the topology of a 12-pulse parallel connection, where an
additional 6-pulse converter is connected in parallel to each of the two 12-pulse converters
connected in parallel.
