Connecting
6.3 Block diagram with connection suggestion
SINAMICS DCM DC Converter
Operating Instructions, 12/2018, A5E34763375A
119
400 A to 850 A devices, three-phase fan connection

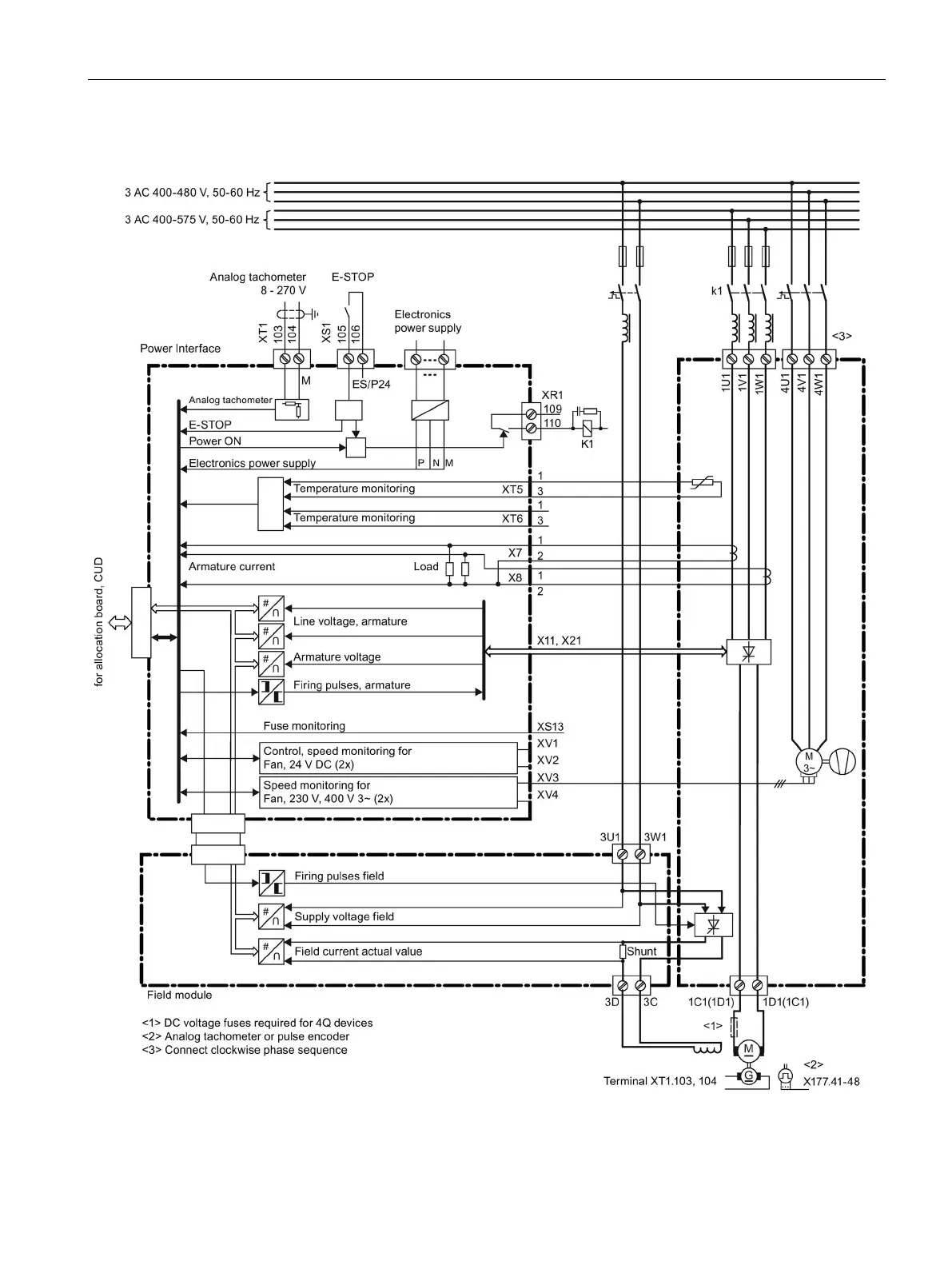

Figure 6-21 Block diagram for 400 to 850 A devices, 3-phase fan connection
