Connecting
6.3 Block diagram with connection suggestion
SINAMICS DCM DC Converter
120 Operating Instructions, 12/2018, A5E34763375A
900 A to 3000 A devices, three-phase fan connection

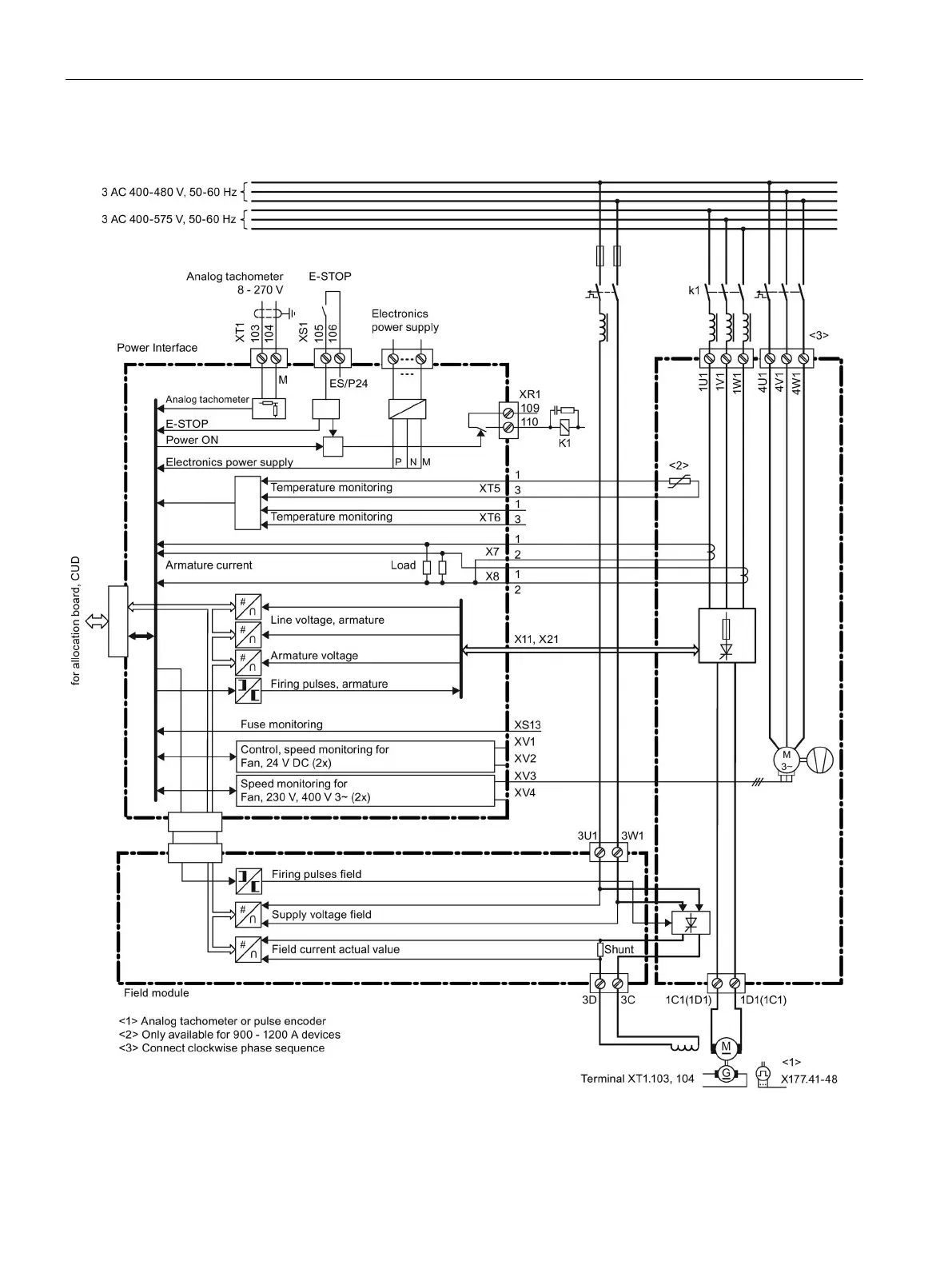

Figure 6-22 Block diagram for 900 to 3000 A devices, 3-phase fan connection
