Installing/Mounting
3.3 Control Unit installation
Power Module PM240
Hardware Installation Manual, 07/2009, A5E00807525B AD
33

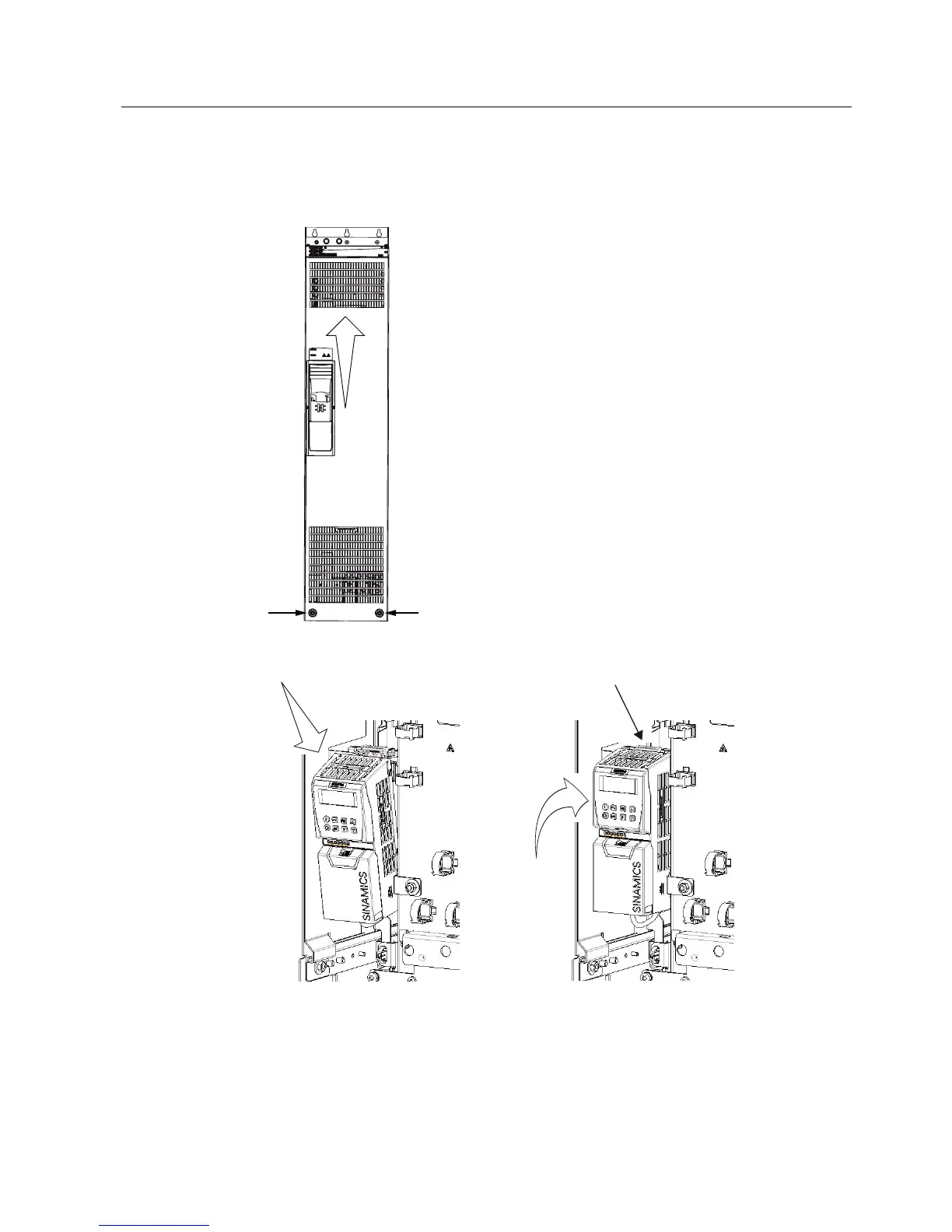

Fitting the CU to the Power Module FSGX
The Control Unit is snapped inside the Power Module housing behind the front plate.
1. Unscrew the two fixing screws at the bottom of the
front cover.
2. Push the cover upwards and remove it.
3. and 4. Snap the Control Unit onto the Power Module.
5HOHDVHEXWWRQ
To disconnect the CU push the release button.
