Marine-specific installation regulations
8.1 Reinforced control cabinet design
Using SINAMICS G120 / G120C / S120 Blocksize converters in marine applications
26 Application Manual, 11/2019, A5E48346362A
8.1 Reinforced control cabinet design
The control cabinet frame must be reinforced as a result of possible vibration stress.
The following diagrams show as example an implementation based on the Rittal TS8 control
cabinet system equipped with Rittal Earthquake Kit and additional reinforcing measures for
marine applications.

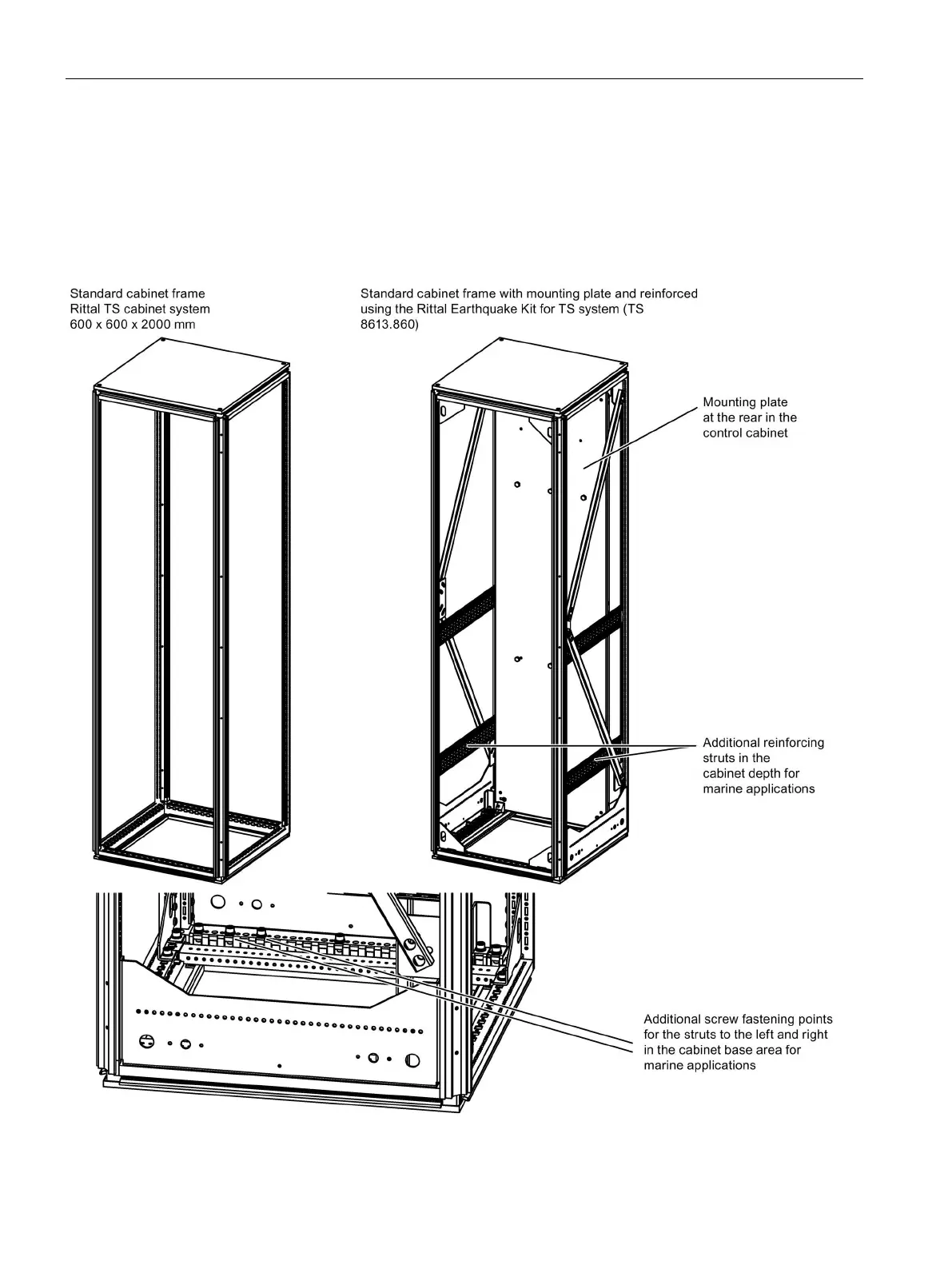

Figure 8-1 Reinforced control cabinet design
