Siemens Sinamics G130 Basic Operator Panel 20 - Page 27

Setting parameters with the BOP20
4.2 Displays/indicators and using the BOP20
Basic Operator Panel 20 (BOP20)
Operating Instructions, 11/2017, A5E00809375A
25
Value display
To switch from the parameter display to the value display, press the "P" key. In the value
display, the values of the setting parameters can be increased and decreased using the
arrow keys. The cursor can be selected using the "Fn" key.

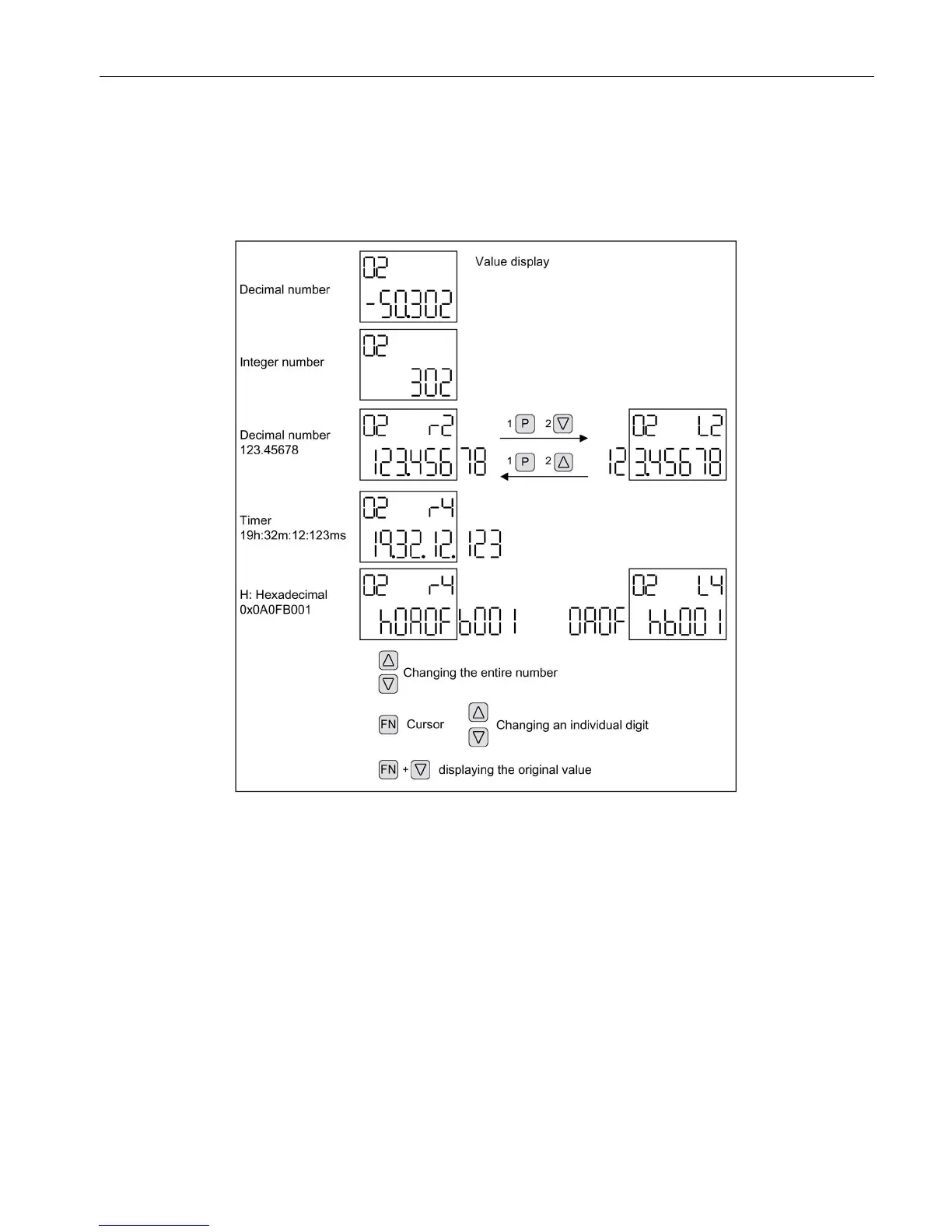

Figure 4-3 Value display
