Releasing the busbars and connections
1. Remove the screws ①.
2. Remove the busbar package ③. To do this, remove the screws ②.

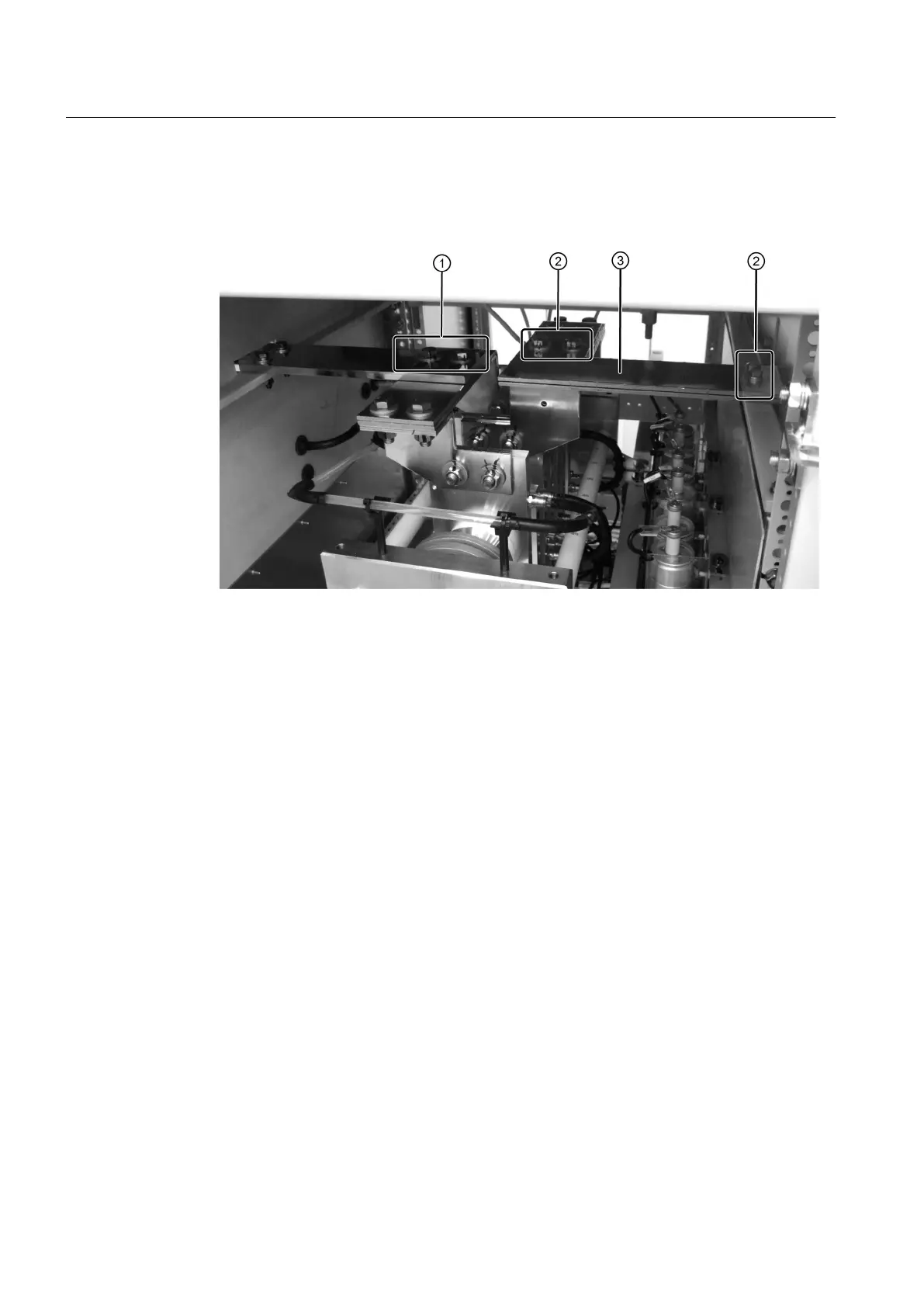

Figure 9-14 Example diagram: Removing the busbars
Maintenance
9.7 Repair
SINAMICS PERFECT HARMONY GH150 6SL38253AE412AA1-Z
130 Operating Instructions Rev.201910281231 EXAMPLE
