To extract the load securing device, proceed as follows:
1. Remove the retaining straps.
2. Remove the spacers such as wooden wedges, air cushions, etc.
4.4.3 Lifting the cabinet off the transport pallet
Use a crane to lower the transportation units from the transport pallets and transport them to the
installation site. Observe the guidelines described in the section "Transport with a crane."
4.4.4 Opening doors in preparation for use
NOTICE
Damage to the locking mechanism caused by incorrectly opening the doors
If you incorrectly open the doors, then this can damage the locking mechanism.
● When opening the doors, follow the steps described.
● You must replace a damaged locking mechanism before commissioning, which will be
charged for. Contact the service center in this regard. You can find the relevant contact
person under "Service & Support".
The drive is delivered in a closed state. A label showing how to open the doors in a current-free
state is located on the door.

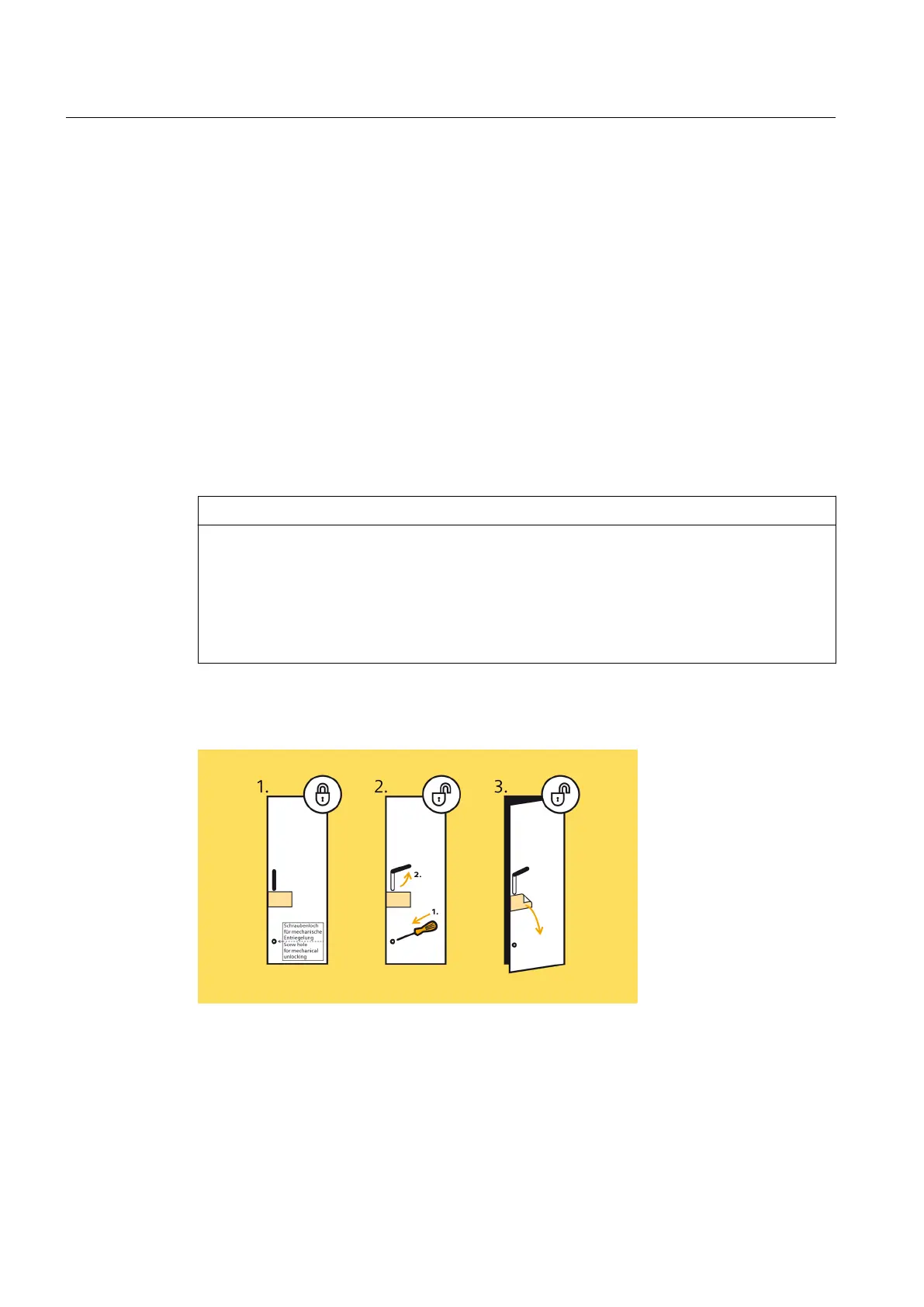

Figure 4-6 Example: Label with instructions for opening the doors
Proceed as follows:
1. There is a screw in the door. Under the screw you will find the opening for manually opening
the doors. Remove the screw.
2. Insert a screwdriver into this opening.
