Commissioning SINAMICS S120
Commissioning SINAMICS S120
SINAMICS S120 at Technology CPU Entry ID: 21767896
V1.0 Edition 10/28/05 40/58
Copyright © Siemens AG 2005 All rights reserved
SINAMICS S120 und Technologie-CPU V2.0-SP1__05-10-28_13-20_e.doc

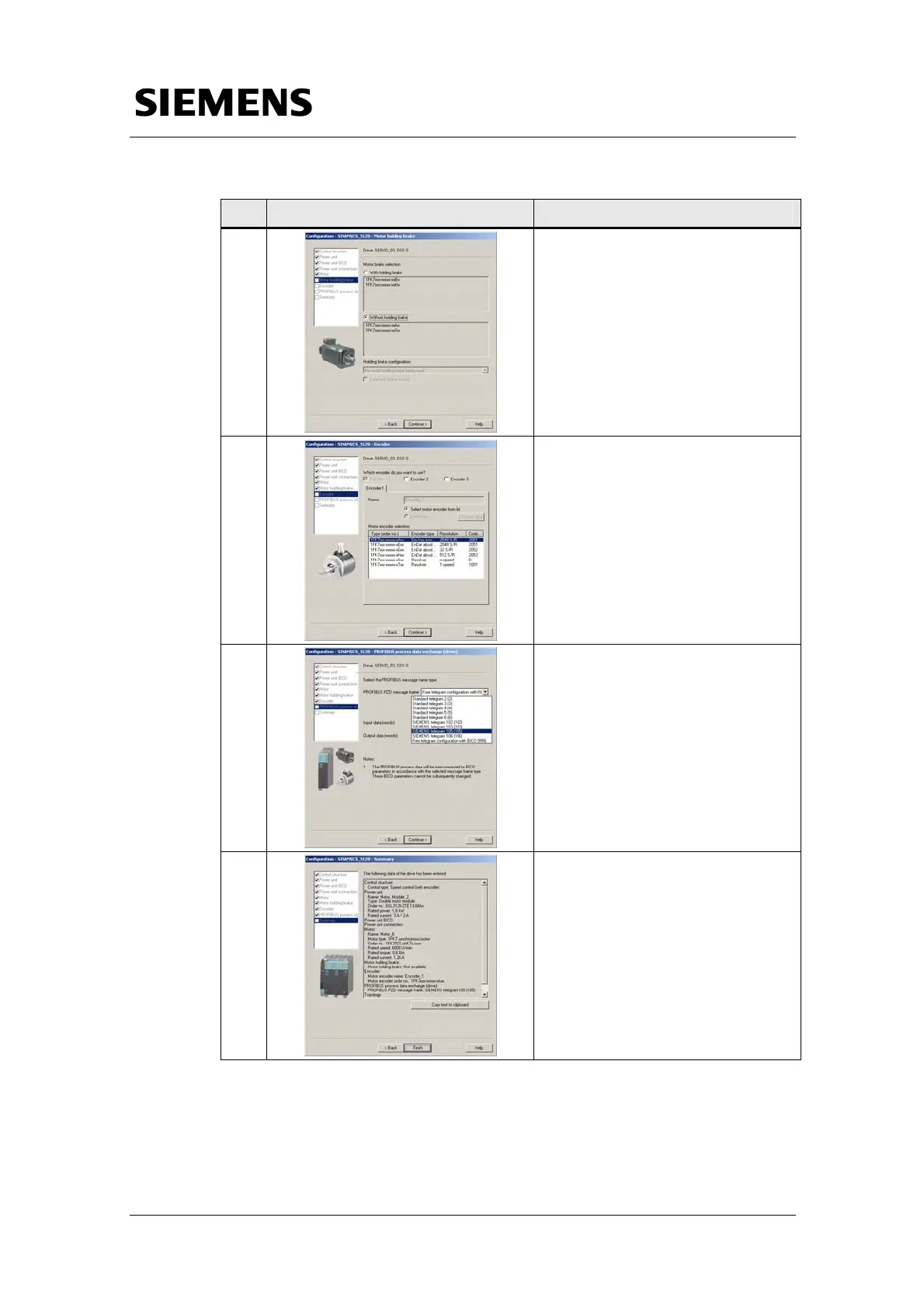

No. Instruction Note
11.
Since the motor does not feature a
holding brake, select Without
holding brake.
12.
Select the correct encoder type
from the Motor encoder selection
list.
The MLFB of the required motor is
listed in Chapter
1.2 Components
of the SINAMICS S120 training
case.
13.
Select SIEMENS telegram 105
(105) as PROFIBUS PZD mess. fr.
14.
Complete the configuration by
clicking the Finish button.
