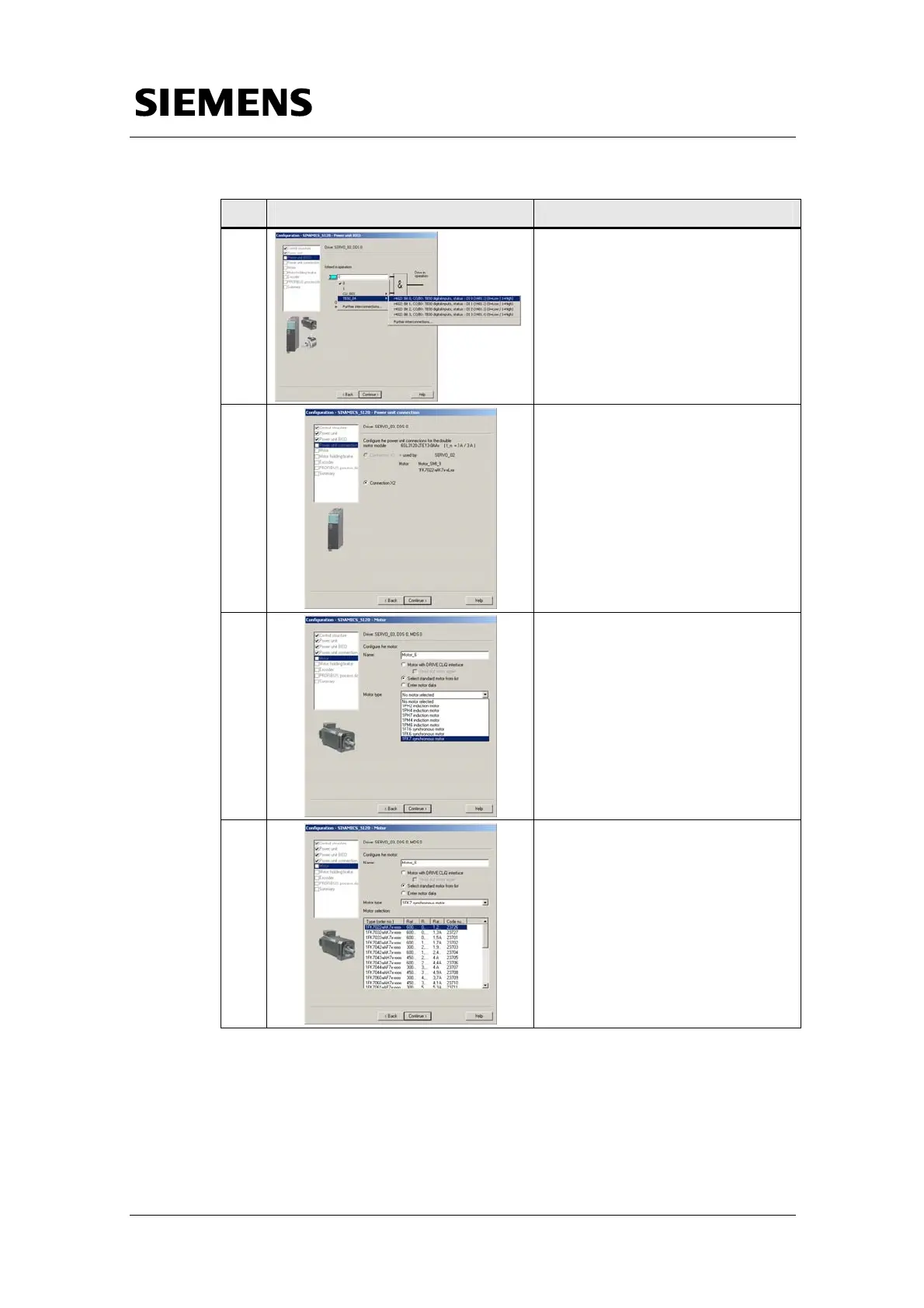

No. Instruction Note
7.
For the internal wiring of the signal
via the BICO technology at the
TB30 terminal board, select the
digital input DI0 which
corresponds to the parameter
r4022 Bit 0.
8.
Only Connection X2 can be
selected for the Power Unit
Connection, since the first motor of
the two-axis module has already
been configured at connection X1 of
the double motor module.
9.
Activate the Select standard motor
from list function and the
respective Motor type (1FK7
synchronous motor).
10.
Select the correct motor from the
Motor selection list.
The MLFB of the required motor is
listed in Chapter
1.2 Components
of the SINAMICS S120 training
case.
