Secure the clamps for the grounding spider to the ball heads ① and ②.

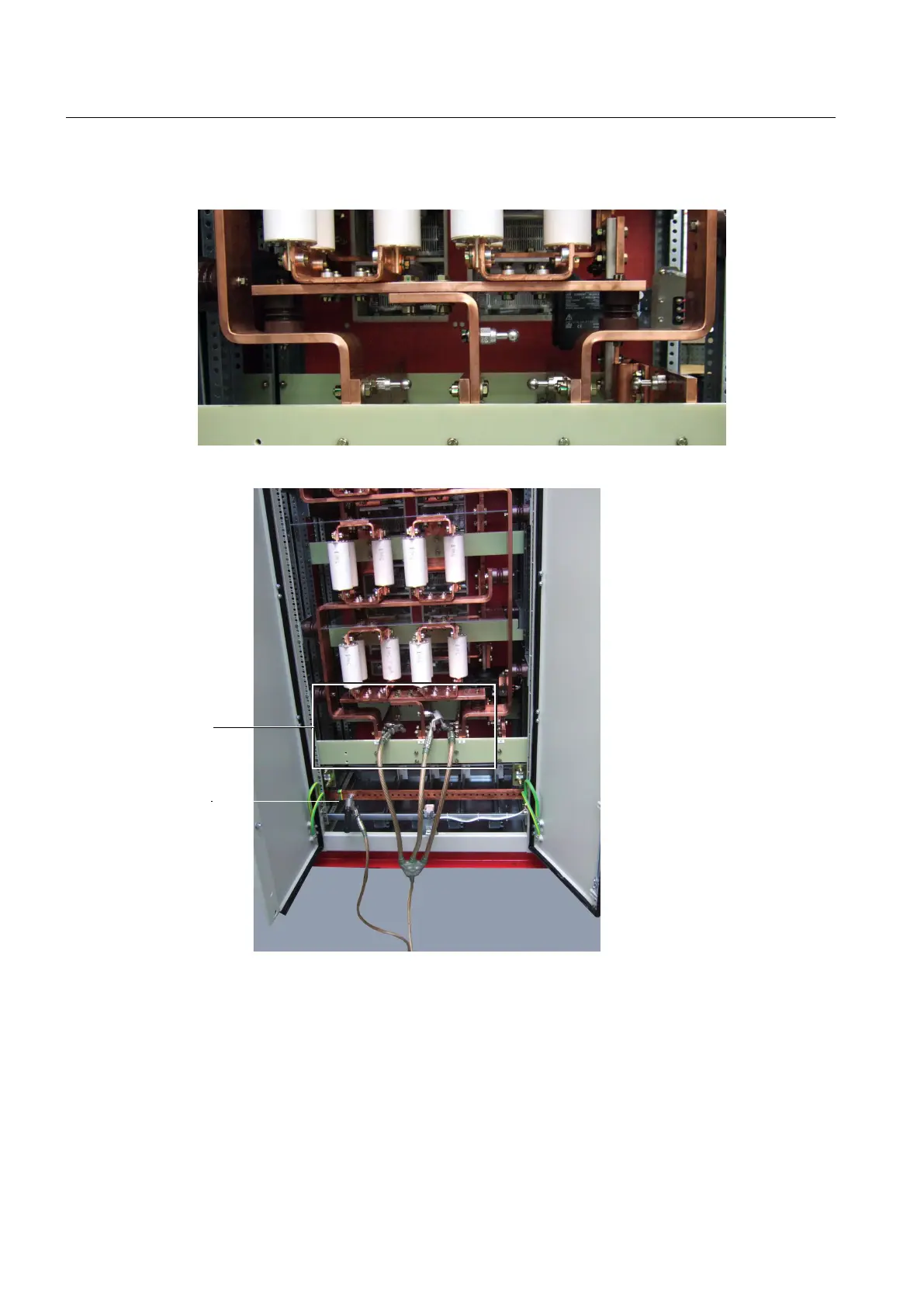

Figure 9-1 Example: Grounding points
཰
ཱ
Figure 9-2 Example: Securing the grounding spider in place
9.3 Opening the device
The drive is equipped with a door interlocking system. Depending on the design, this is an
electromechanical door interlocking system or optionally a safety locking system.
Maintenance
9.3 Opening the device
