Programming and Operating — Turning Page 80 808D ADVANCED
Workpiece
Setup
s

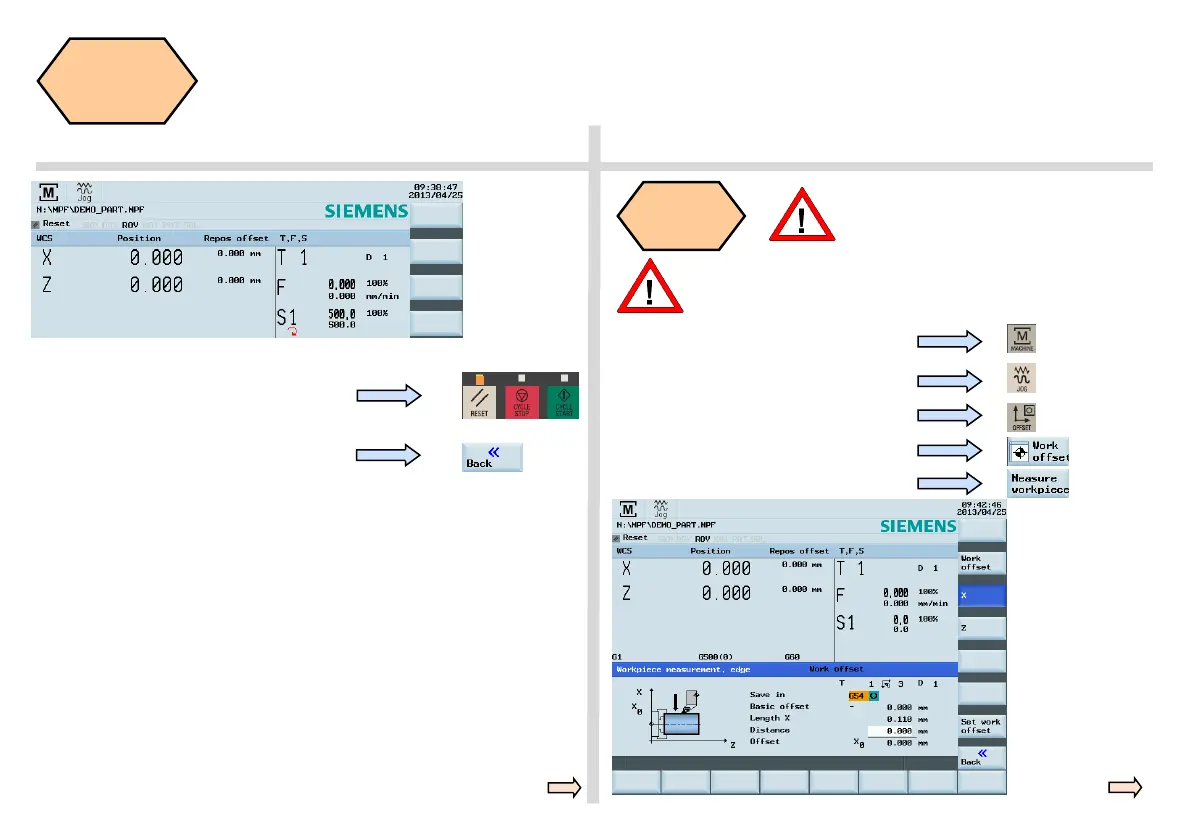

SEQUENCE
Press the “Back” SK on the PPU.
Create
workpiece
offset
A tool must have be created and
measured before it can be used to set
the workpiece offset.
Press the “Offset” key on the PPU.
Press the “Machine” key on the PPU.
Press the “JOG” key on the MCP.
Make sure the active tool is the measured tool!
Press the “Work offset” SK on the PPU.
Press the “Meas.work.” SK on the PPU.
Press the “Reset” key on the MCP
to stop the spindle rotation.
