808D ADVANCED Page 93 Programming and Operating — Turning
Sample
Programs
s

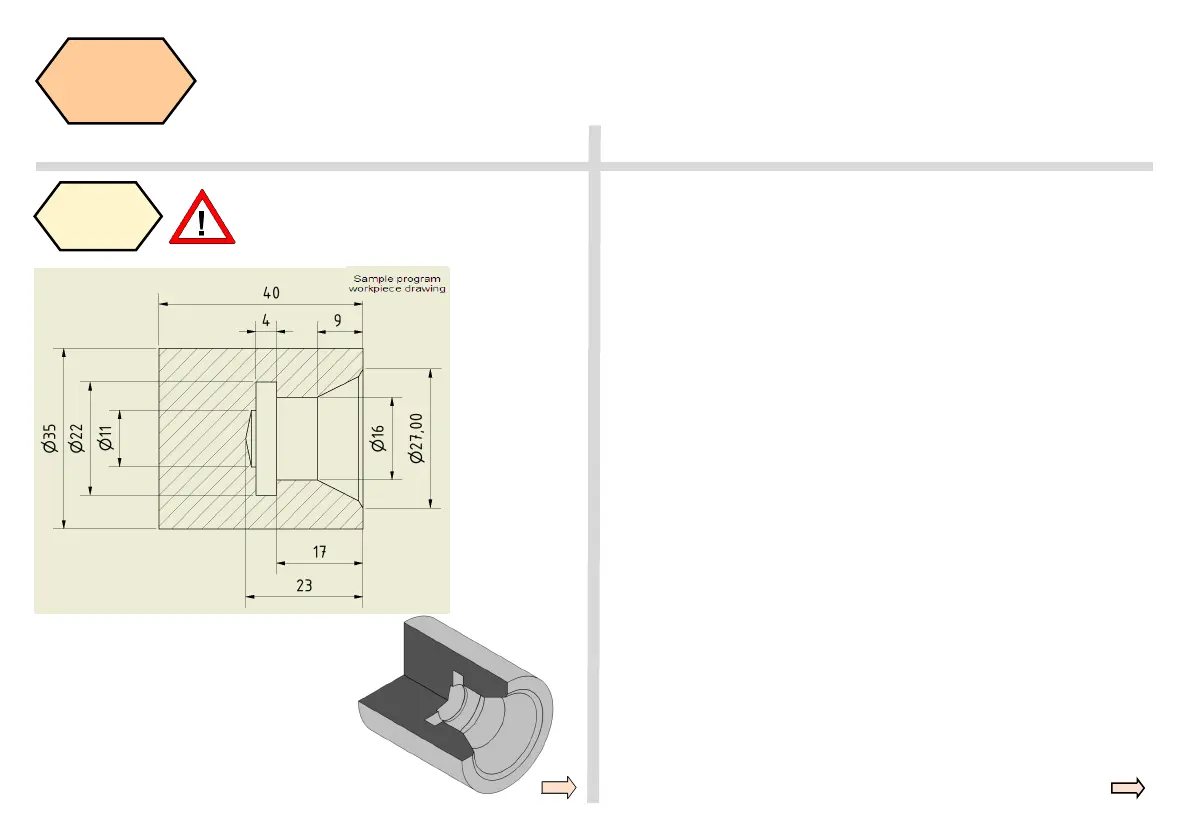

DRAWING
Machining Process
Turning
program 2
Make sure all the preparations and safety
measures have been performed before
machining！
Actual effect
N10 G54 G00 G90 G95 G40 G71
N20 LIMS=4500
N30 T1 D1
N40 G96 S250 M03 M08
; =======Start face turning========
N50 G00 X35 Z0
N60 G01 X-2 F0.35
N70 G00 Z2
N80 G00 X35
; =======End face turning========
N90 T13 D1
; =========Start drilling==========
N100 G95 S1000 M4 G17
N110 G00 Z1 X0
N120 CYCLE83 ( 10, 0, 2, -23, 0,
-10, , 5, , , 1, 0, 1, 5, 0, , 0 )
N130 G18
; ==========End drilling==========
N140 T10 D1
; ==Start contour turning roughing==
N150 CYCLE95( "PART_SUB_2", 1.5,
0.2, 0.1, , 0.5, 0.3, 0.2, 11, , , )
; ==End contour turning roughing===
N160 T110 D1
N170 G96 S250 M03 M08
N180 G00 Z1 X0
N190 G1 F0.3 Z-17
; ======Start grooving=======
N200 CYCLE93( 16, -17, 4, 3, , , ,
, , , , , , 1, , 13, )
; =======End grooving=======
N210 M30
N10 spindle feedrate in mm/r
N20 set spindle upper limit 4500 r/min
N30
N40 constant cutting speed 250 m/min
; ========Start face turning=======
N50
N60 feedrate is 0.35 mm/r
N70
N80
; =======End face turning========
N90
; =========Start drilling==========
N100 spindle speed 1000 r/min, X/Y
plane
N110
N120
N130 select Z/X plane
; ===========End drilling=========
N140
; ==Start contour turning roughing==
N150 maximal feed depth 1.5 mm,
vertical axis finishing allowance 0.2 mm,
horizontal axis finishing allowance 0.1
mm, roughing feedrate 0.5 mm/r,
feedrate 0.3 mm/r with back cut, finishing
feedrate 0.2 mm/r, feed along positive
direction of Z axis to do complete ma-
chining
; ==End contour turning roughing===
N160
N170 constant cutting speed 250 m/min
N180
N190 feedrate 0.3 mm/r
; =======Start grooving======
N200 grooving start point (X16,Z-17),
groove width 4 mm, depth 3 mm, feed
depth 1 mm, define reverse angle by
means of CHR.
; =======End grooving=======
N210 M30
Tool information：
T1 Turning tool D0.8
T10 Turning tool D0.8
T13 Drilling tool D10
T110 Grooving tool D0.2
Tool tip width 3
