Descriptions of the PLC subroutines
3.6 Subroutine 23 - AUX_CHIP (chip remover)
PLC Subroutines Manual
36 Operating Instructions, 12/2012, 6FC5397-2EP10-0BA0
Example for calling subroutine 22
3.6 Subroutine 23 - AUX_CHIP (chip remover)
Purpose
Subroutine 23 is used to control chip remover and can be called in AUX_MCP. At first-time
pressing of the "Chip Forward" key the output "ChipFwd" is high; at second-time pressing of
the "Chip Forward" key the output "ChipFwd" becomes low. When the output "ChipFwd" is
low, the output "ChipRev" becomes high at pressing "Chip Reverse" key and becomes low at
releasing the "Chip Reverse" key.
Local variable definition
None
Relevant PLC machine data
No. Description
14512 [16].1 Selection of chip remover function (0: do not use; 1: use)

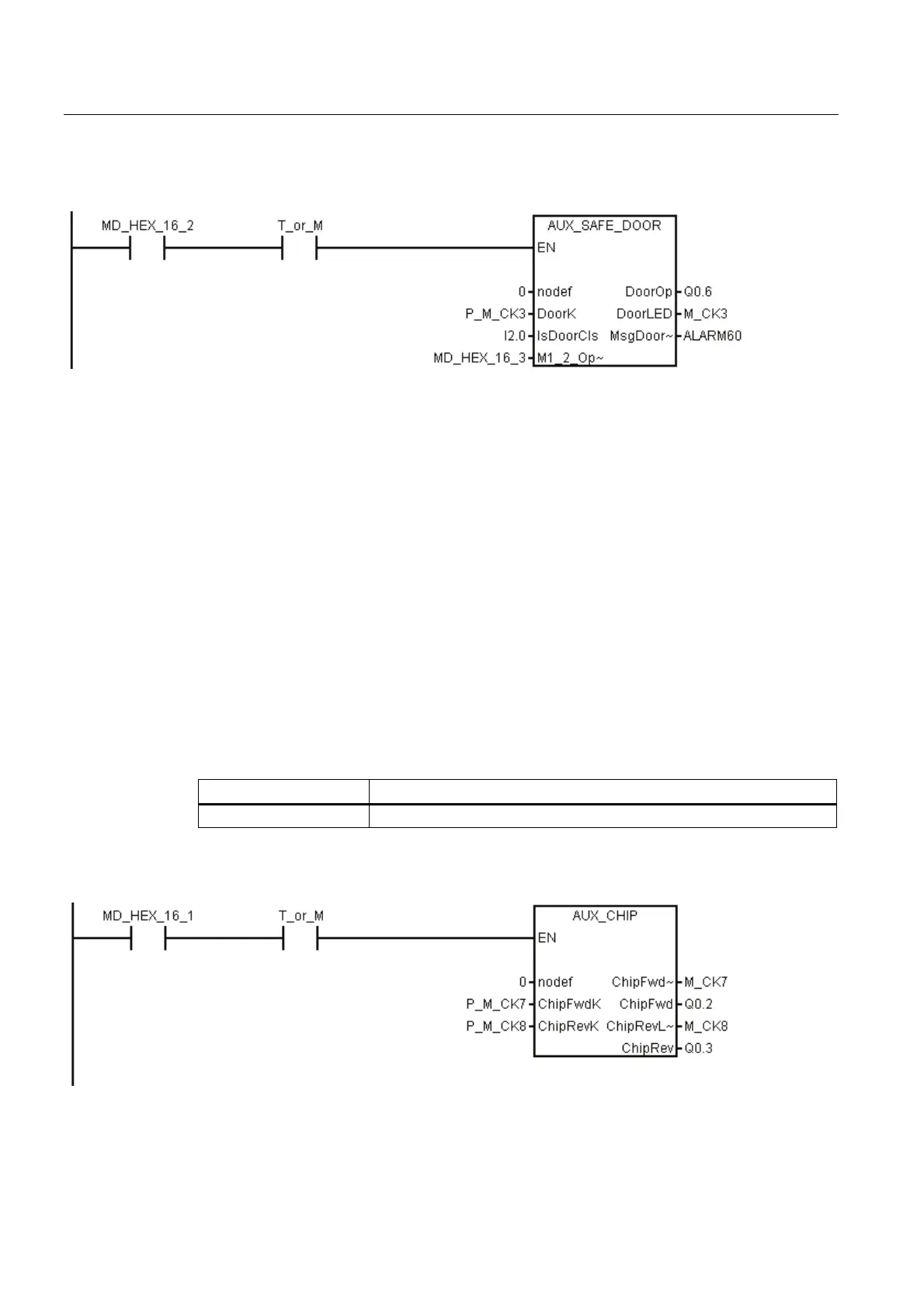

Example for calling subroutine 23
