Descriptions of the PLC subroutines
3.26 Subroutine 53 - Turret3_CODE_T (tool change control for turret with coding function)
PLC Subroutines Manual
Operating Instructions, 12/2012, 6FC5397-2EP10-0BA0
63

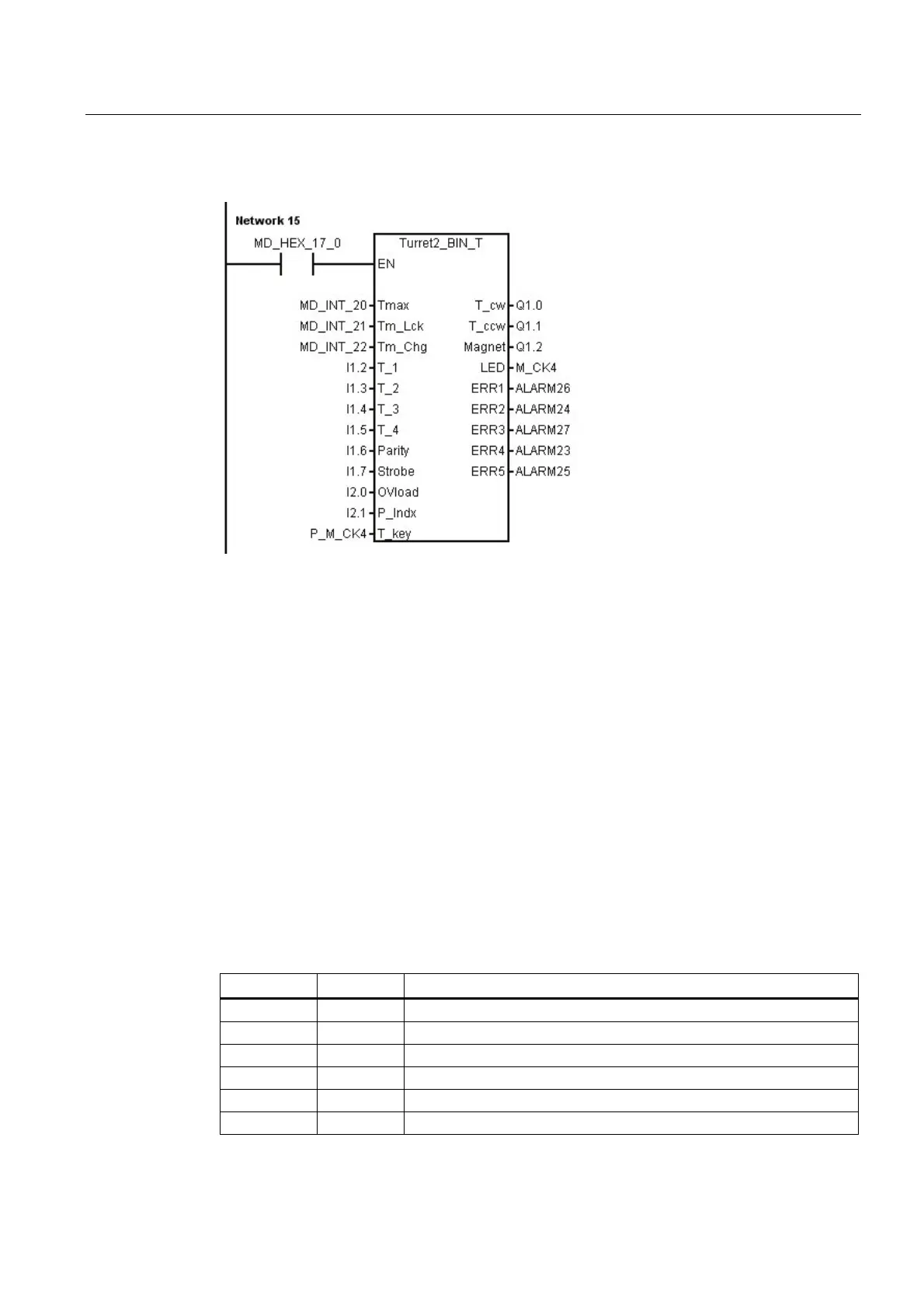

Example for calling subroutine 52
3.26 Subroutine 53 - Turret3_CODE_T (tool change control for turret with
coding function)
Purpose
Subroutine 53 is used to control the turret with coded tool positions and function of adjacent
tool change. The difference between the subroutine 52 and the subroutine 53 is that the
subroutine 52 uses binary tool position codes while the subroutine 53 uses tool position
codes made according to a specific common turret.
During a tool change, the NC interface signal "Feedhold" (DB3200.DBX6.0) is set; this
means that the part program can only continue to run only after the tool change.
The turret positioning is prohibited in the case of an Emergency Stop, turret motor overload
or program test/simulation.
Local variable definition
Table 3- 28 Inputs
Name Type Description
M_time WORD Monitoring time for the tool change
T_key BOOL Manual tool change key (NO )
A to D BOOL Tool position code signals
Strobe BOOL Position strobe
Lock_i BOOL Position clamping
OVload BOOL Turret motor overload (NC)
