Siemens SINUMERIK 808D Installation Manual

Connecting
3.1 Interface overview
Electrical Installation Manual
16 Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0
Legend
Interface
Comment
③
X21 FAST I/O
④
X301, X302 Distributed I/O
⑤
X10 Handwheel inputs
⑥
X60 Spindle encoder interface
⑦
X54 Analog spindle interface
⑧
X2 RS232 interface
⑨
X51, X52, X53 Pulse drive interfaces
⑩
X30 USB interface, for connection with the MCP
⑪
X1 Power supply interface, +24V DC power supply
⑫
- Battery interface
⑬
- Slot for the System CompactFlash Card (CF card)
Front
⑭
- USB interface
Note
The rated output current of all the digital outputs is 250 mA.

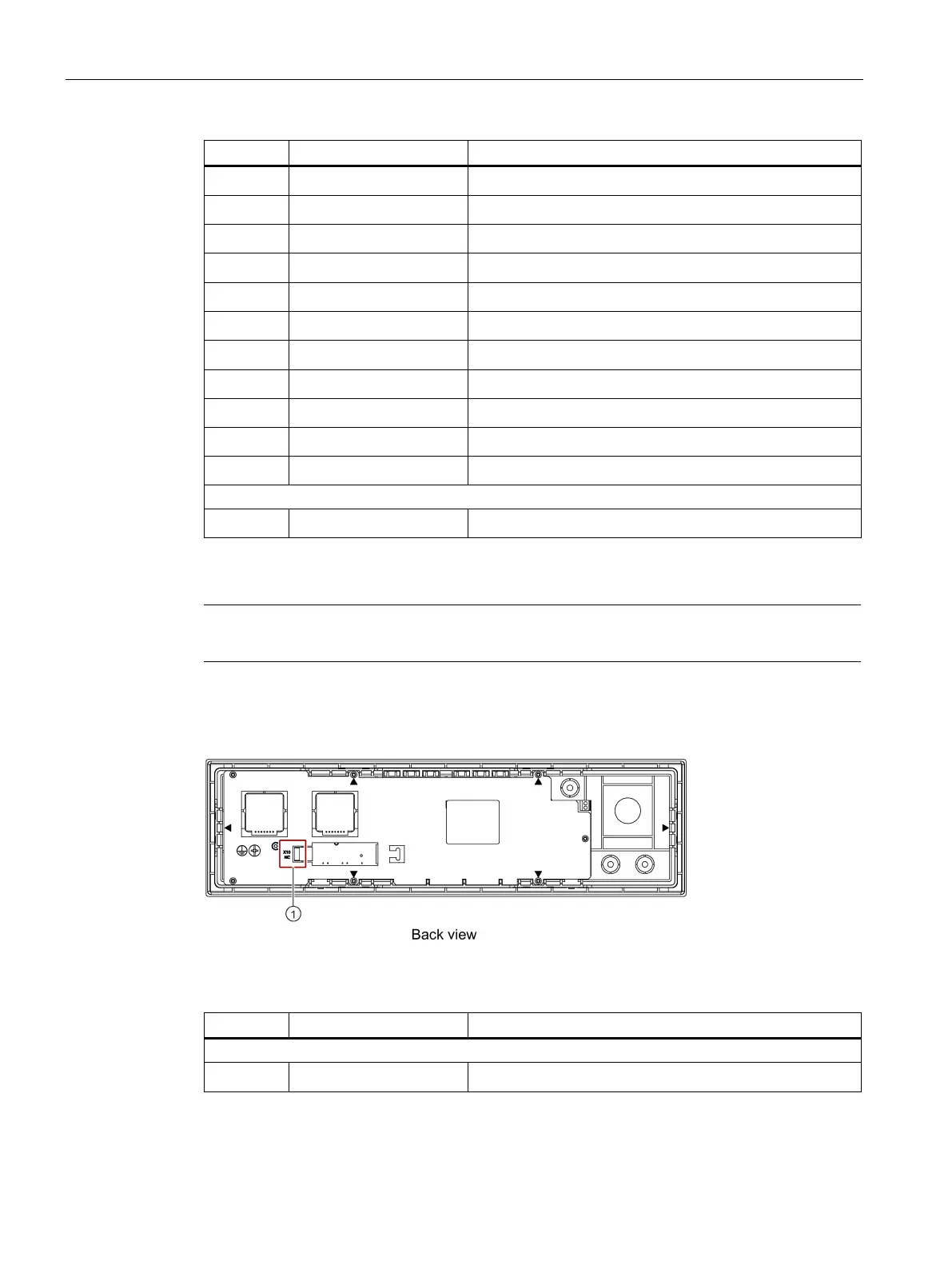

Interface overview on the Machine Control Panel (MCP)
Figure 3-2 Interface layout
Legend
Interface
Comment
Rear
①
X10 USB interface, for connection with the PPU
