Connecting

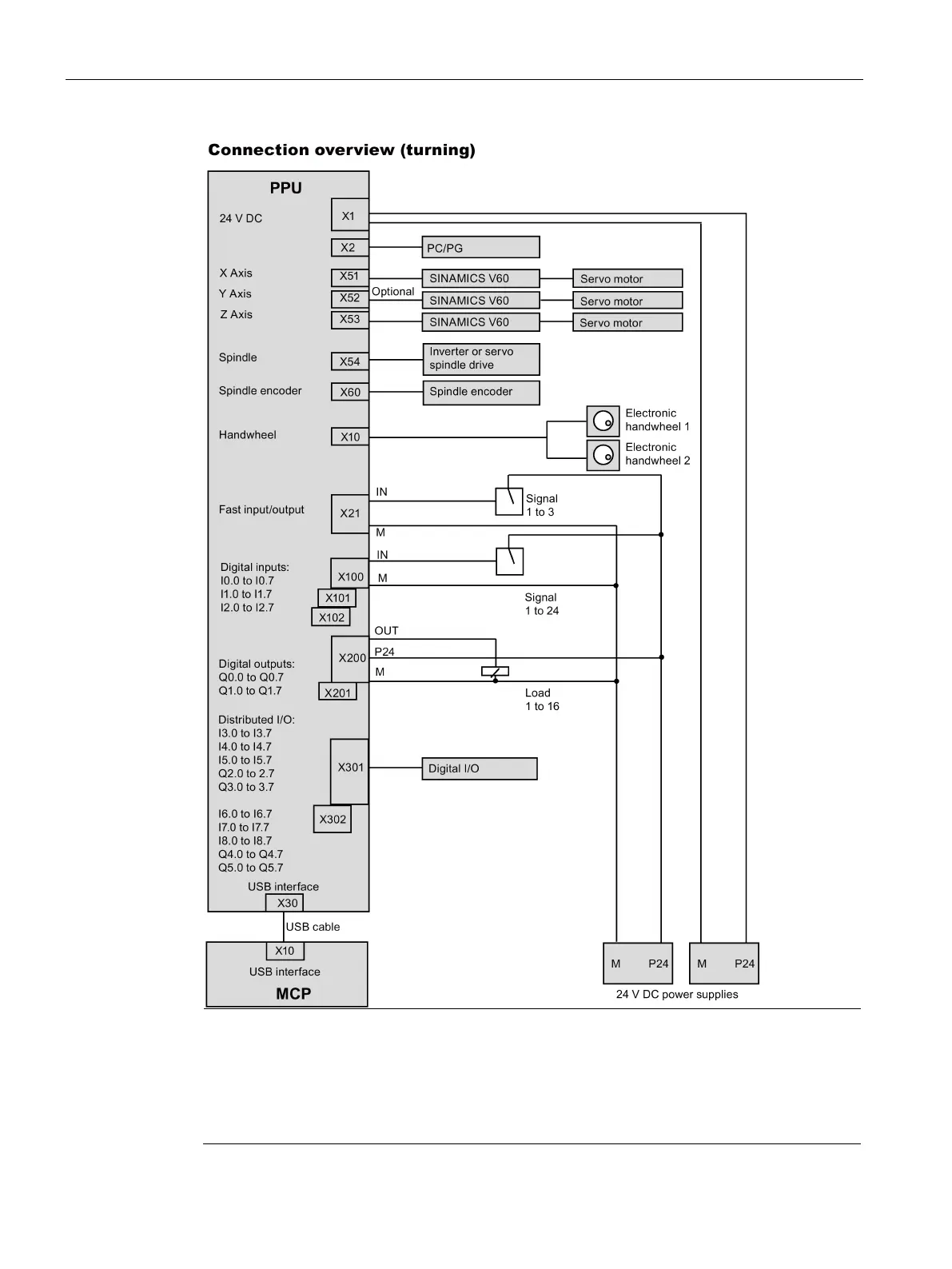

3.2 Connection Overview for SINUMERIK 808D
Electrical Installation Manual
18 Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0
• The 24 V signal of X200 must be connected; otherwise, the communication between the
PPU and the drives does not function as it should.
• For the turning variant, connection to X52 is optional and depends upon whether you use
the software option "additional axis". If you desire to configure the control system to
control a rotary axis or an additional linear axis, connect X52 to a SINAMICS V60 which
connects to a servo motor.
