Siemens SINUMERIK 808D Installation Manual

Connecting
3.3 Connecting the interfaces on the PPU
Electrical Installation Manual
20 Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0

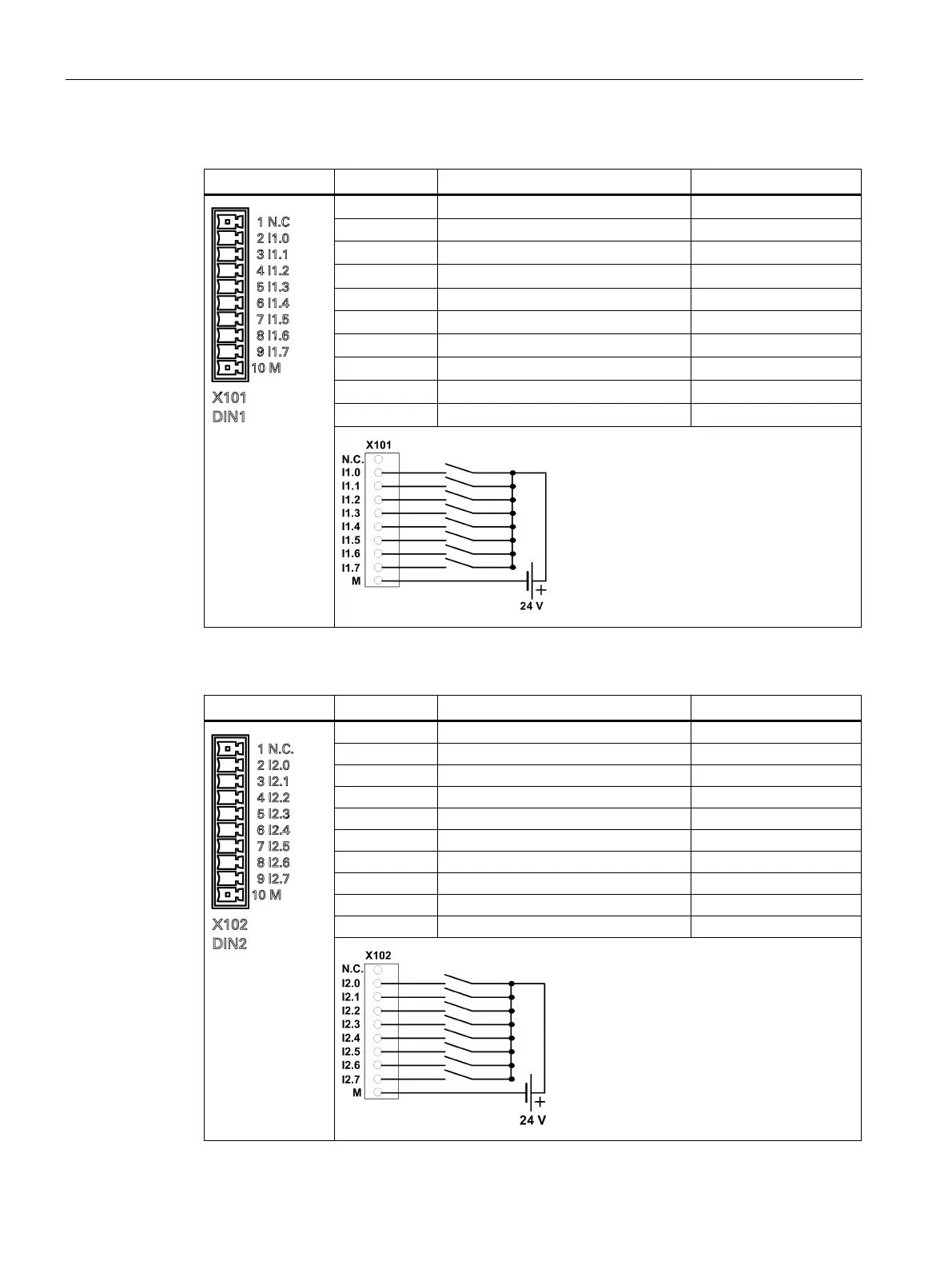

Table 3- 2 Pin assignment of X101 (DIN1)
Interface
Pin
Signal
Comment
1 N.C. Not assigned
2 I1.0 Digital input
3 I1.1 Digital input
4 I1.2 Digital input
5 I1.3 Digital input
6 I1.4 Digital input
7 I1.5 Digital input
8 I1.6 Digital input
9 I1.7 Digital input
10 M External ground
Table 3- 3 Pin assignment of X102 (DIN2)
Interface
Pin
Signal
Comment
1
N.C.
Not assigned
2
I2.0
Digital input
3
I2.1
Digital input
4
I2.2
Digital input
5
I2.3
Digital input
6
I2.4
Digital input
7
I2.5
Digital input
8
I2.6
Digital input
9
I2.7
Digital input
10
M
External ground
