Connecting
3.3 Connecting the interfaces on the PPU
Electrical Installation Manual
32 Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0

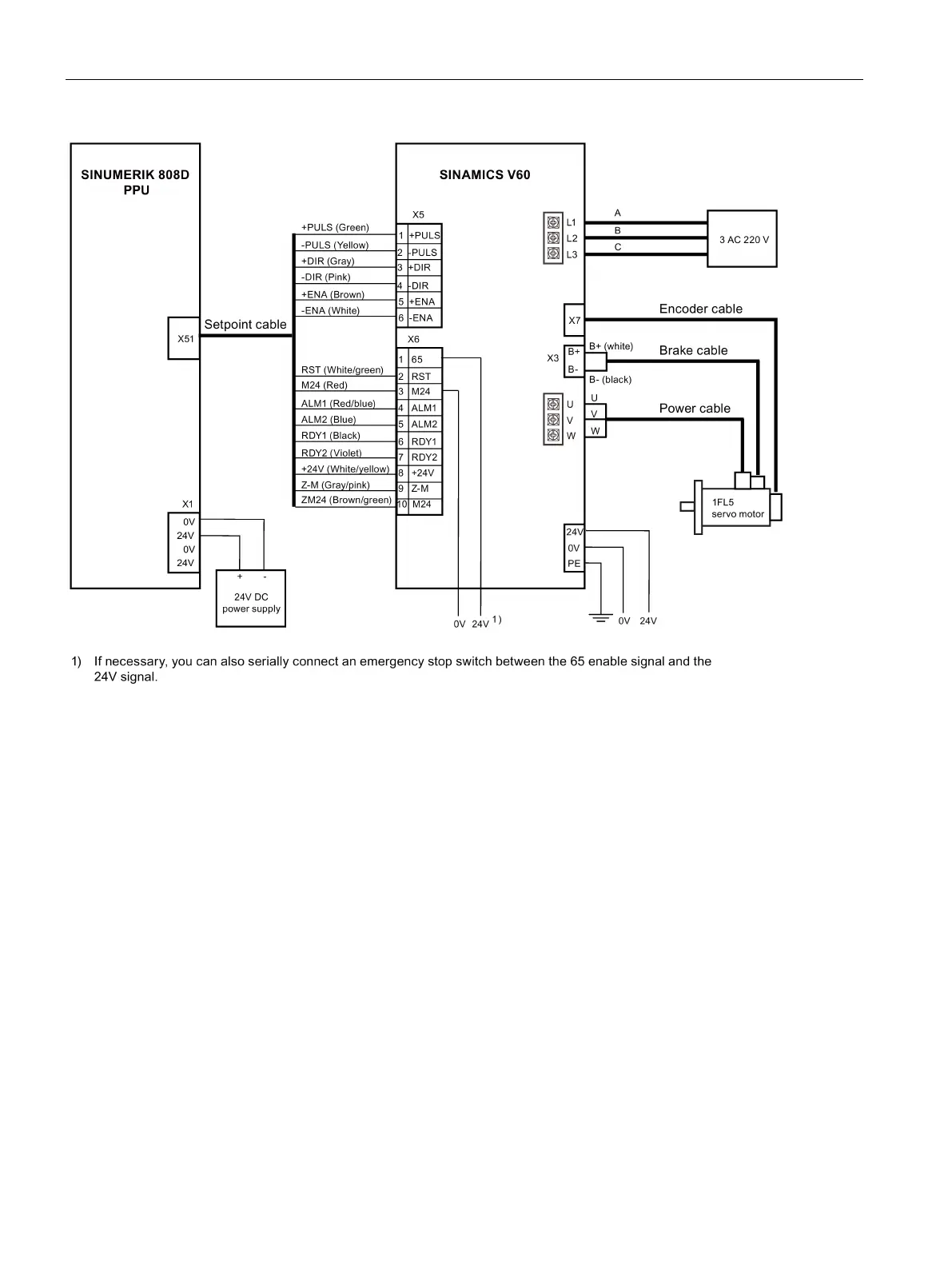

The connected motors are SIEMENS 1FL5 servo motors.
For further information about SINAMICS V60 and 1FL5 servo motors, refer to
SINUMERIK
808D Mechanical Installation, SINAMICS V60 Getting Started
or
1FL5 Motor Data sheet
.
See also
Analog spindle interface - X54 (Page 33)
