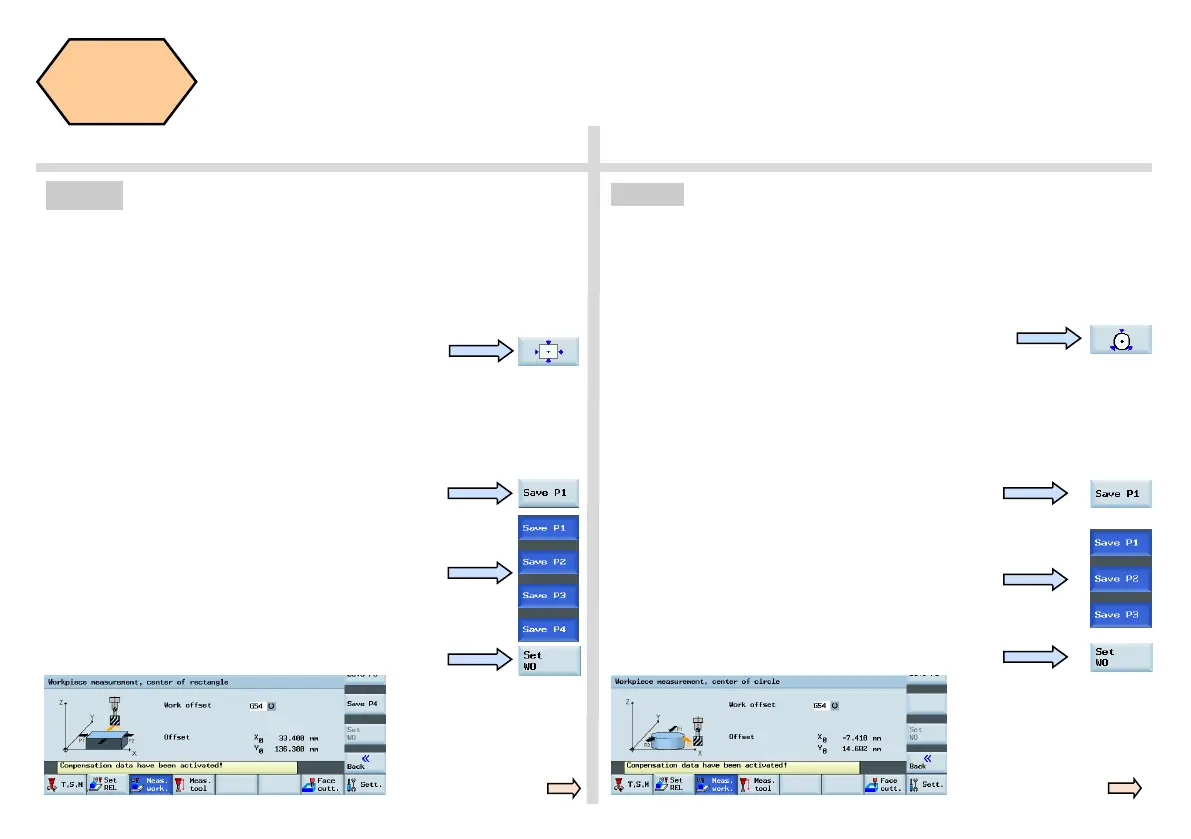

Operating and Programming — Milling Page 26 808D
Workpiece
Setup
s
SEQUENCE
This method is normally used for setting the workpiece zero
point at the center point of a rectangular workpiece.
Method 2
Press the corresponding SK of the second icon on the
right-hand side of the PPU.
Using tools with a measured “length and radius”, move them to the four
edges of the rectangular workpiece. Using either JOG or Handwheel,
scratch an edge and then calculate the zero point of the workpiece.
Observing the figure on the PPU, move the coordinate axis following the
orange arrow to move the tool to the specified position and scratch the
edge of the workpiece.
Press the ”Save P1” SK on the PPU to save the coor-
dinate axis of the 1st position in the system.
Press the “Set WO” SK on the PPU.
You have then finished
setting the zero point of
the workpiece as the
center point of the
rectangular workpiece.
Repeat the process for positions 2, 3 and 4.
(When the setting is complete, the buttons will be
shown in blue.)
This method is normally used for setting the zero points at the
center point of a circular workpiece.
Method 3
Press the corresponding SK of the third icon on the
right-hand side of the PPU.
Using tools with a measured “length and radius”, move them to the three
edges of the circular workpiece. Using either JOG or Handwheel, scratch
an edge and then calculate the zero point of the workpiece.
Observing the figure on the PPU, move the coordinate axis following the
orange arrow to move the tool to the specified position and scratch the
edge of the workpiece.
Press the ”Save P1” SK on the PPU to save the
coordinate axis of the 1st position in the system.
Press the “Set WO” SK on the PPU.
You have then finished
setting the zero point of
the workpiece as the
center point of the circular
workpiece.
Repeat the process for positions 2 and 3.
(When the setting is complete, the buttons will be
shown in blue.）
