Section 3
Hardware information
PPU2xx.1 with integrated 828D controller
General information.
The controller is available in vertical or horizontal formats. The functionality of the two
variants is identical.
The PPU includes “Qwerty” and numerical keyboard inputs and shortcut keys to spe-
cific machine areas.
The 828D encompasses the HMI, NC, PLC and CU logical components.
PPU interfaces:-
X125 USB interface.
X127 Ethernet service port.
X145 Compact Flash (CF) interface.
RDY Green ready LED
NC Red fault LED
CF Amber CF card activity LED
828D interfaces:-
X1-24V DC supply.
X100 to X103 –Drive Cliq interface.
X130-Ethernet factory network.
X135-USB interface.
X140-RS232 interface
X122 & X132-Digital I/O for Sinamics
X142-Digital I/O for NCK
X143-Hand-wheels x 2
LED Indicators:-
FAULT-Red-fault present, contact Siemens.
SYNCH-Green-synchronisation OK
Rx/Tx-Yellow network activity LED (1 each for PN1, PN2 & X130 interfaces)
Link-Green network connection indicator (1 each for PN1, PN2 & X130 interfaces)

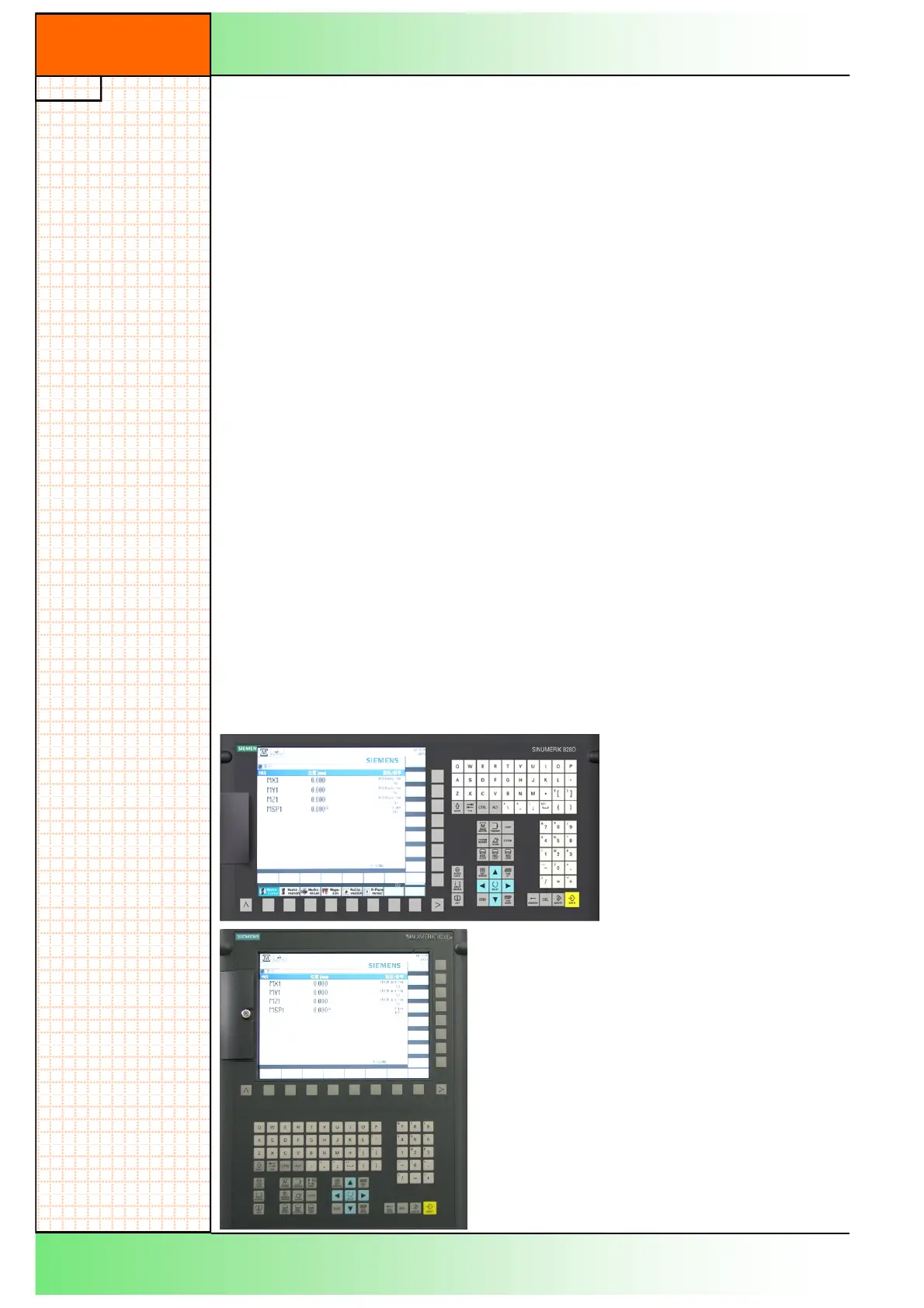

Horizontal variant
PPU2x1.1
Vertical variant:
PPU2x0.1
A choice of horizontal or vertical mounting is available:-

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
