Siemens SINUMERIK 828D Training Manual

SINUMERIK 828D Page 7 B060
Notes
Section 4
Hardware information

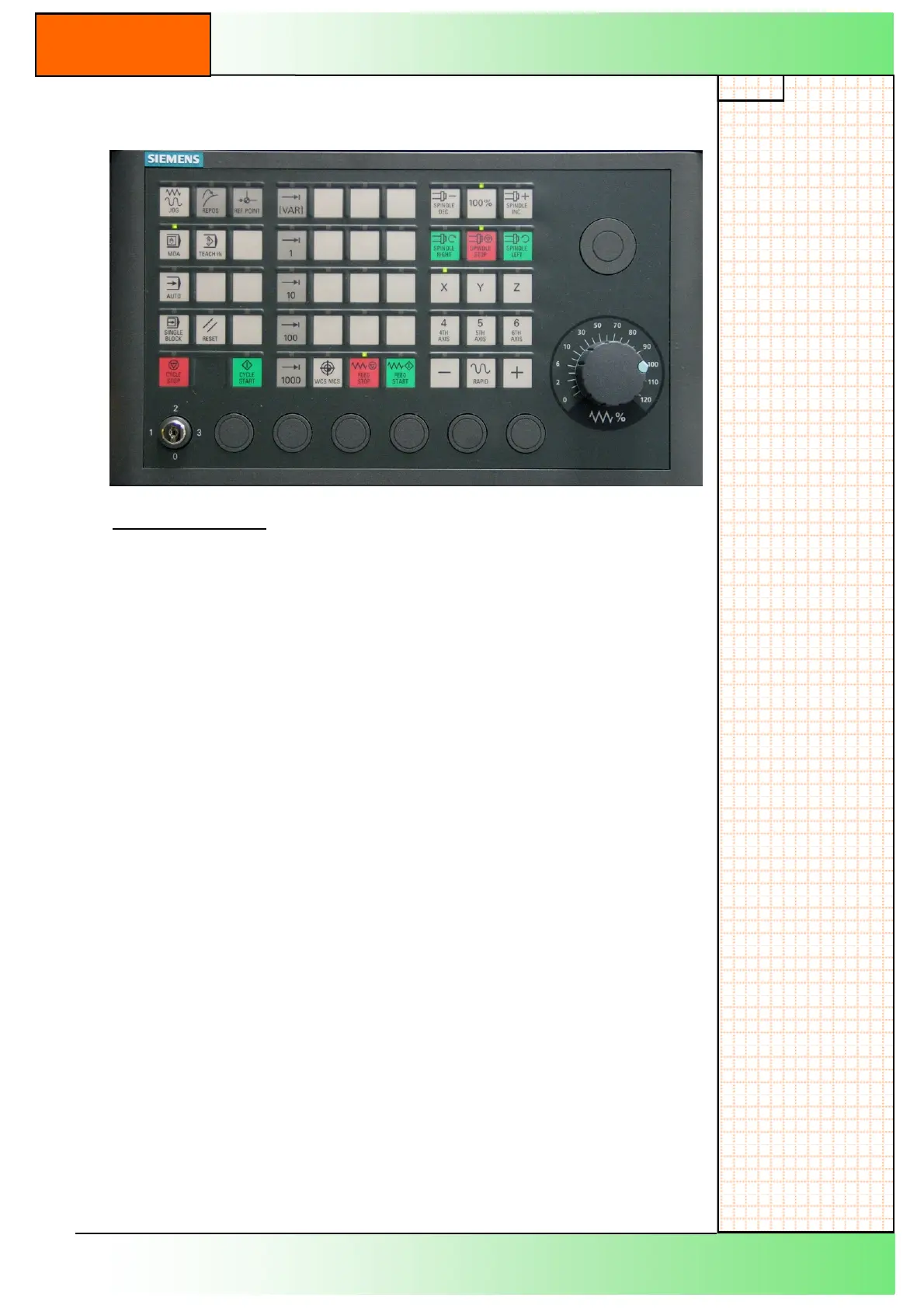

Machine Control Panels (MCP’s)- Type MCP310 PN
The MCP310 is recommended for use with the vertical style PPU
MCP 310 PN(12.2”)
Part Number:-
6FC5303-0AF23-1AA1
Features:-
 49 membrane keys with LED
Indicators (16 user assignable)
 Feed override control(16 positions)
 Key switch
 Emergency stop/Spindle override
optional
 6 x Pre-drilled holes for hard wired
user buttons
 Connections for 9 user Inputs & 6
outputs.
 Connection via Profinet.
H1 LED POWER OK
H2 LED BUSSYNC
H3 LED BUSFAULT
S2 IP address selection switch.
Consumable items:-
6FC5247-0AF13-1AA0-Feed
override rotary switch incl. cap, button,
pointer & dials.
6FC5247-0AF12-1AA0-Spindle
override rotary switch incl. cap, button,
pointer & dials.
Interfaces:-
X10 24V DC supply
X20 Ethernet port 1
X21 Ethernet port 1
X30 Feed override switch input
X31 Spindle override switch input
X51 User input connections.
X52 User input connections.
X55 User input connections.
X53 User output connections.
X54 User output connections.

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
