Hardware information
Machine Control Panels (MCP’s)- Type MCP483C PN.
The MCP483 is recommended for use with the horizontal style PPU.
Consumable items:-
6FC5247-0AF13-1AA0-Feed override
rotary switch incl. cap, button, pointer & di-
als.
6FC5247-0AF12-1AA0-Spindle override ro-
tary switch incl. cap, button, pointer & dials.
Hardware information

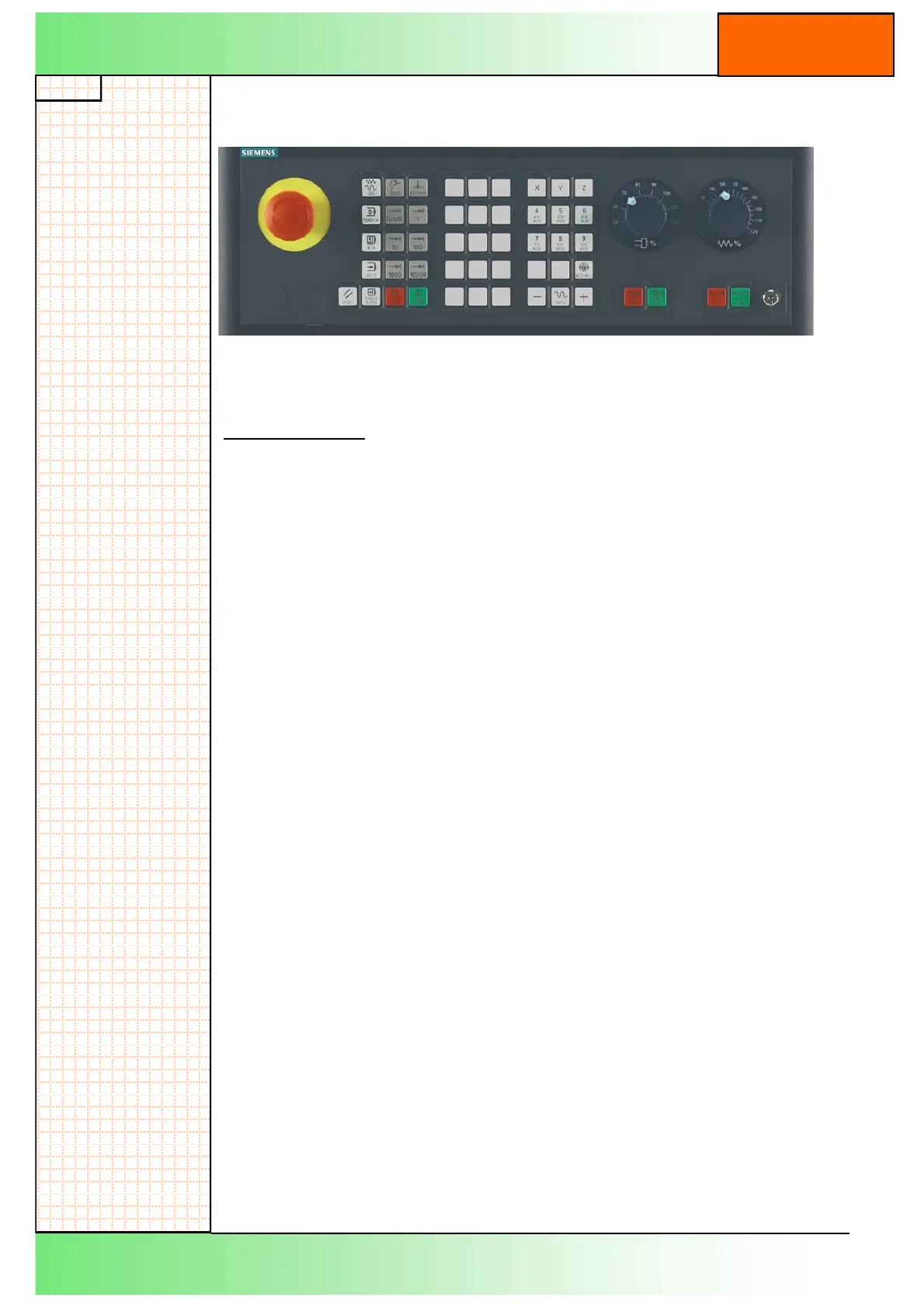

MCP 483C PN (19”)
Part Number:-
6FC5303-0AF22-0AA1
Features:-
 50 mechanical keys with LED
indicators (17 user assign-
able)
 Spindle & feed override con-
trol.
 Key switch
 Emergency stop button
 2 x Pre-drilled holes for hard
wired user buttons
 Connection via Ethernet
 2 x Hand-wheel connections
 Connections for 9 user
Inputs & 6 outputs.
 Connection via Profinet
Interfaces:-
X10 24V DC supply
X20 Ethernet port 1
X21 Ethernet port 2
X30 Feed override switch input
X31 Spindle override switch input
X51 User input connections.
X52 User input connections.
X55 User input connections.
X53 User output connections.
X54 User output connections.
LED Indicators:-
H1 LED POWER OK LED
H2 LED BUSSYNC (Bus ok & synchronised)
H3 LED BUSFAULT (Bus fault)
S1 Hand-wheel type selection switch
S2 IP address selection switch

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
