Section 5
Hardware information
Line Modules.
General.
Line modules are responsible for generating the DC link supply for the drive system.
They require 3-phase AC for the DC link and +24V DC for the electronic supply.
The DC link and 24V DC voltages are distributed to other drive modules in the
system via a bus bar system.
The modules are available in several variants of size and functionality.
Smart Line Modules (SLM)
These modules are capable of mains regeneration but the DC link is not
stabilised.
SLM modules of 5 & 10 Kw do not connect to the DriveCliq network.
Modules of 16 Kw and above do connect to the DriveCliq.
Active Line Modules (ALM)
These modules are capable of mains regeneration and the DC link is stabilised.
All ALM modules are connected to the DriveCliq network.

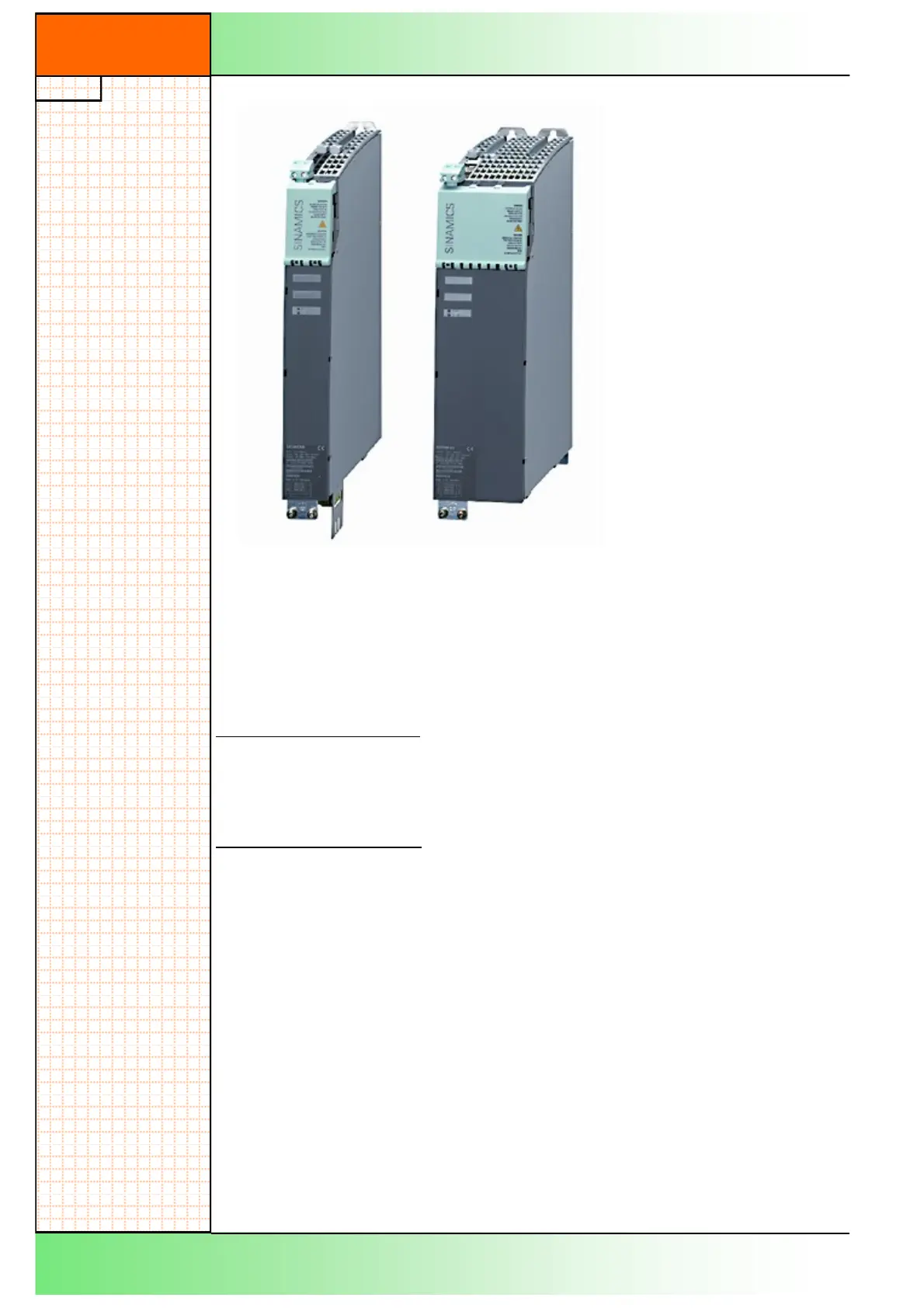

Active Line Module Smart Line Module
Interfaces:-
SLM (5 & 10Kw variant)
X21-Enable, ready and fault signals
X22-Regeneration inhibit and fault reset signals.
X24-24V DC electronics supply.
U1, V1, W1-3-Phase supply.
X200, X201, X202-DriveCliq connections.
SLM (16Kw and above) & ALM (All variants)
X21-Enable & temperature sensor input.
X24-24V DC electronics supply.
U1, V1, W1-3-Phase supply.
X200, X201, X202-DriveCliq connections
