Siemens SINUMERIK 828D Training Manual

SINUMERIK 828D Page 11 B060
Notes
Section 5
Part Numbers-SLM
6SL3130-6AE15-0AB0 5Kw Internal cooling.
6SL3130-6AE21-0AB0 10Kw “ “
6SL3130-6TE21-6AA3 16Kw “ “
6SL3130-6TE23-6AA3 36Kw “ “
6SL3131-6AE15-0AA0 5Kw External cooling
6SL3131-6AE21-0AA0 10Kw “ “
Part Numbers-ALM
6SL3130-7TE21-6AA3 16Kw Internal cooling.
6SL3130-7TE23-6AA3 36Kw “ “
6SL3130-7TE25-5AA3 55Kw “ “
6SL3130-7TE28-0AA3 80Kw “ “
6SL3130-7TE31-2AA3 120Kw “ “
6SL3131-7TE21-6AA3 16Kw External cooling
6SL3131-7TE23-6AA3 36Kw “ “
6SL3131-7TE25-5AA3 55Kw “ “
6SL3131-7TE28-0AA3 80Kw “ “
6SL3131-7TE31-2AA3 120Kw “ “
Line Modules-continued
Motor Modules (MM)
The motor modules convert the DC link
voltage into a variable AC voltage which
is then output to the servo
Motors.
They are also supplied with 24V DC via
the ALM/SLM
All motor modules are connected to the
DriveCliq network.
They are available in one or two axis
variants and can be internally or
externally cooled.

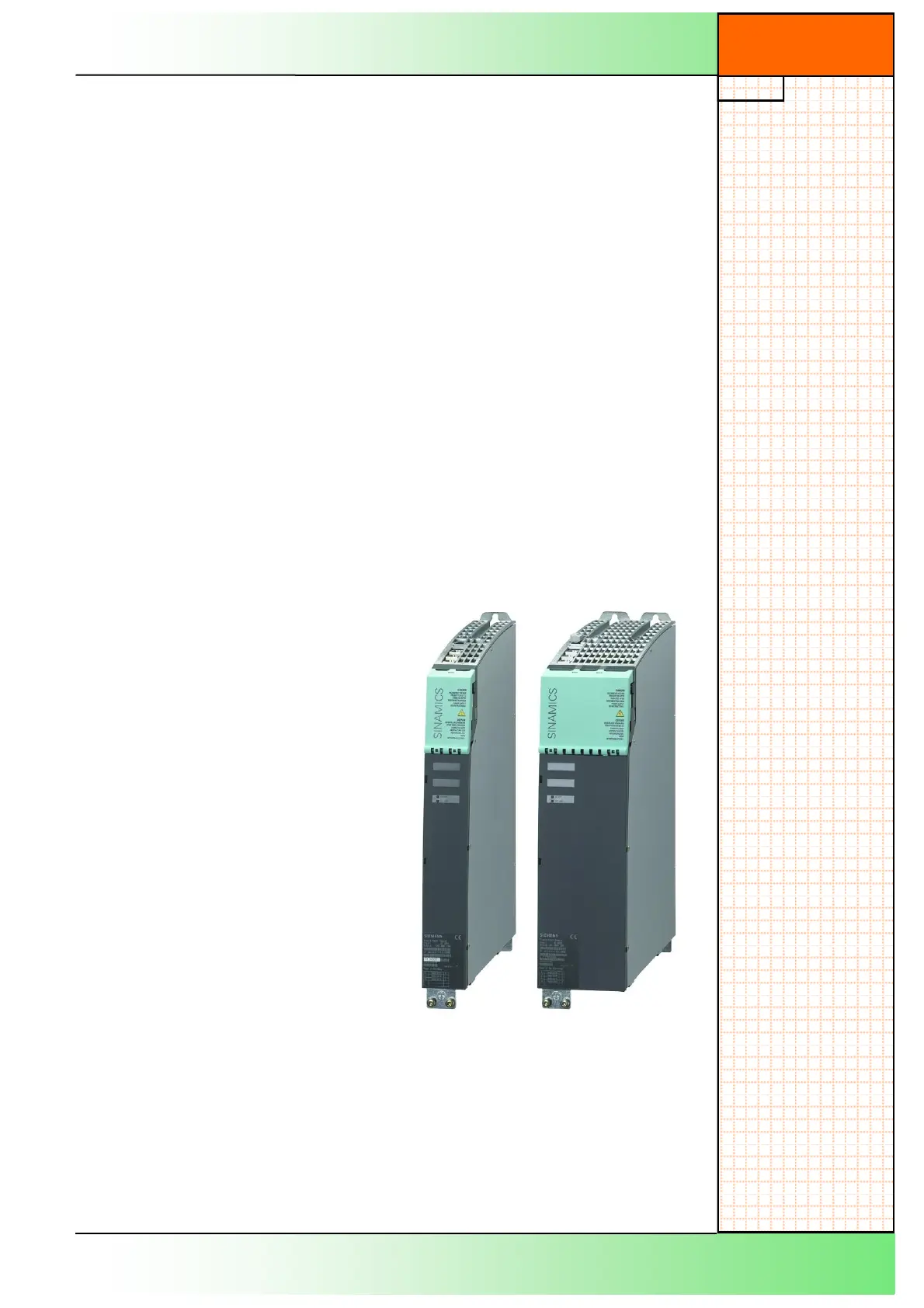

Single MM Double MM
Interfaces:-
MM –Single
X1-Output to Motor.
X21-Enable & temperature sensor input
X200, X201, X202-DriveCliq
connections.
MM –Double
X1 & X2-Output to Motors.
X21-Enable & temperature sensor input
(Motor 1)
X22-Enable & temperature sensor
input (Motor 2)
X200, X201, X202, X203-DriveCliq
connections.
Hardware information

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
