B060 Page 12 SINUMERIK 828D
Notes
Section 5
If the regenerative capability of the line
module is inadequate it can be
supplemented by the inclusion of a braking
module.
These modules fit neatly into the drive
system.
Further braking capacity can be added in
the form of braking resistors which connect
to the braking module. Braking resistors
require good ventilation and ideally need to
be mounted externally.
Braking modules and resistors can also
facilitate the controlled shut down of the
drives in the event of a power failure.
Another feature is the fast discharge of the
DC link. This feature is used to quickly
discharge the capacitors so that
maintenance tasks can be carried without
having to await natural discharge times.
Fast discharging should only be carried out
1 to 2 times per week to avoid damaging
the capacitors.
The braking module is connected to the DC
link and 24V DC bus systems.
Connector X21 on the braking module is
used for enable/fault/ready signals.
Connector X1 is for connecting the
external resistor.
Motor Modules (MM)-continued
Part Numbers-single modules
6SL3120-1TE13-0AA3 1.6Kw Internal cooling.
6SL3120-1TE15-0AA3 2.7Kw “ “
6SL3120-1TE21-0AA3 4.8Kw “ “
6SL3120-1TE21-8AA3 9.7Kw “ “
6SL3120-1TE23-0AA3 16Kw “ “
6SL3120-1TE24-5AA3 24Kw “ “
6SL3120-1TE26-0AA3 32Kw “ “
6SL3120-1TE28-5AA3 46Kw “ “
6SL3120-1TE31-3AA3 71Kw “ “
6SL3120-1TE32-0AA3 107Kw “ “
6SL3121-1TE13-0AA3 1.6Kw External cooling.
6SL3121-1TE15-0AA3 2.7Kw “ “
6SL3121-1TE21-0AA3 4.8Kw “ “
6SL3121-1TE21-8AA3 9.7Kw “ “
6SL3121-1TE23-0AA3 16Kw “ “
6SL3121-1TE24-5AA3 24Kw “ “
6SL3121-1TE26-0AA3 32Kw “ “
6SL3121-1TE28-5AA3 46Kw “ “
6SL3121-1TE31-3AA3 71Kw “ “
6SL3121-1TE32-0AA3 107Kw “ “
Part Numbers-double modules
6SL3120-2TE13-0AA3 2 x 1.6Kw Internal cooling.
6SL3120-2TE15-0AA3 2 x 2.7Kw “ “
6SL3120-2TE21-0AA3 2 x 4.8Kw “ “
6SL3120-2TE21-8AA3 2 x 9.7Kw “ “
6SL3121-2TE13-0AA3 2 x 1.6Kw External cooling.
6SL3121-2TE15-0AA3 2 x 2.7Kw “ “
6SL3121-2TE21-0AA3 2 x 4.8Kw “ “
6SL3121-2TE21-8AA3 2 x 9.7Kw “ “

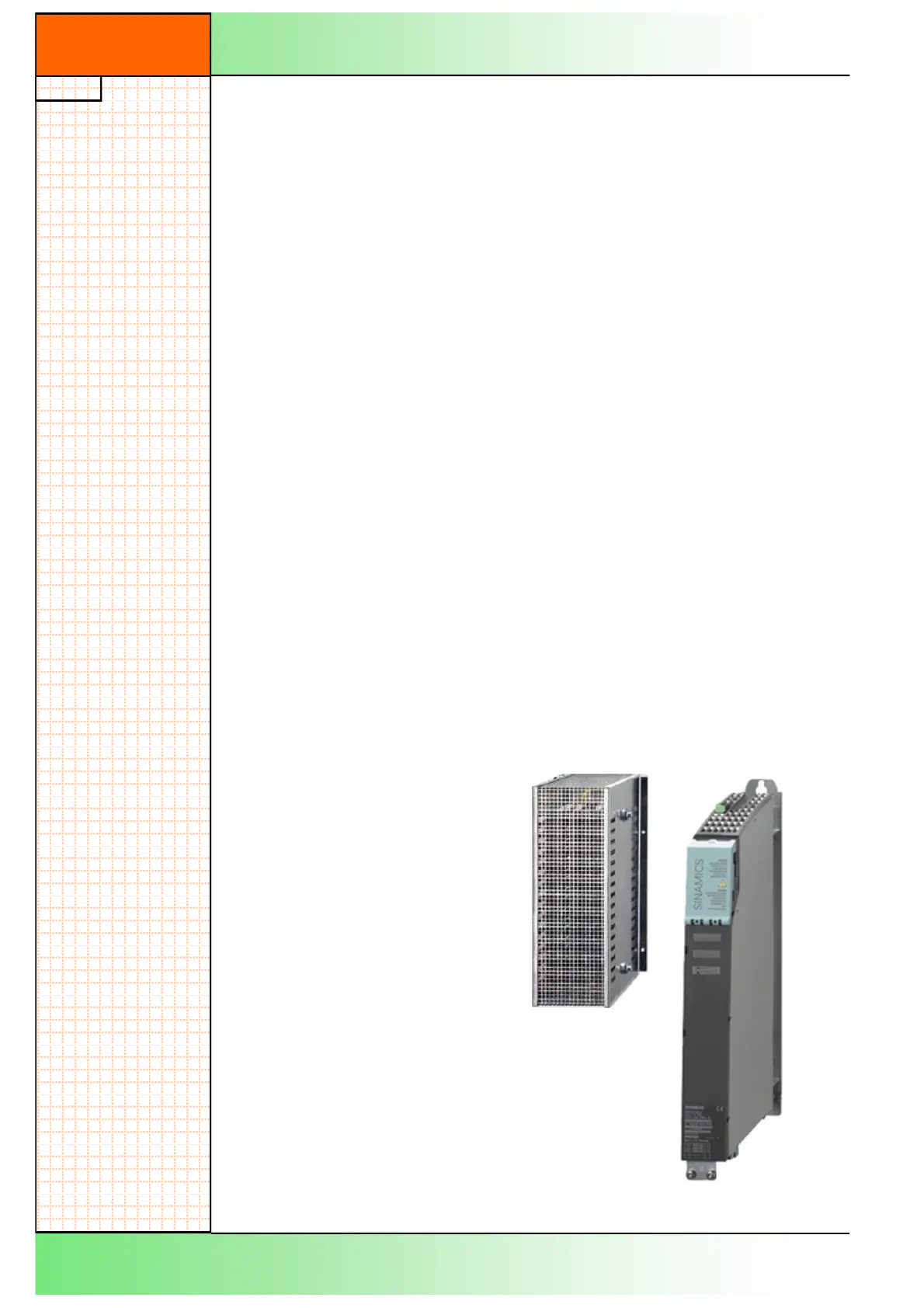

Braking Modules & Resistors.
Braking resistor
Braking Module
Hardware information
