Siemens SINUMERIK 828D Training Manual

SINUMERIK 828D Page 13 B060
Notes
Section 5
Part Numbers-
6SL3100-1AE31-0AB0 Braking Module 1.5Kw rated power
6SN1113-1AA00-0DA0 Braking Resistor 0.3Kw rated power
6SL3100-1BE31-0AA0 Braking Resistor 1.5Kw rated power

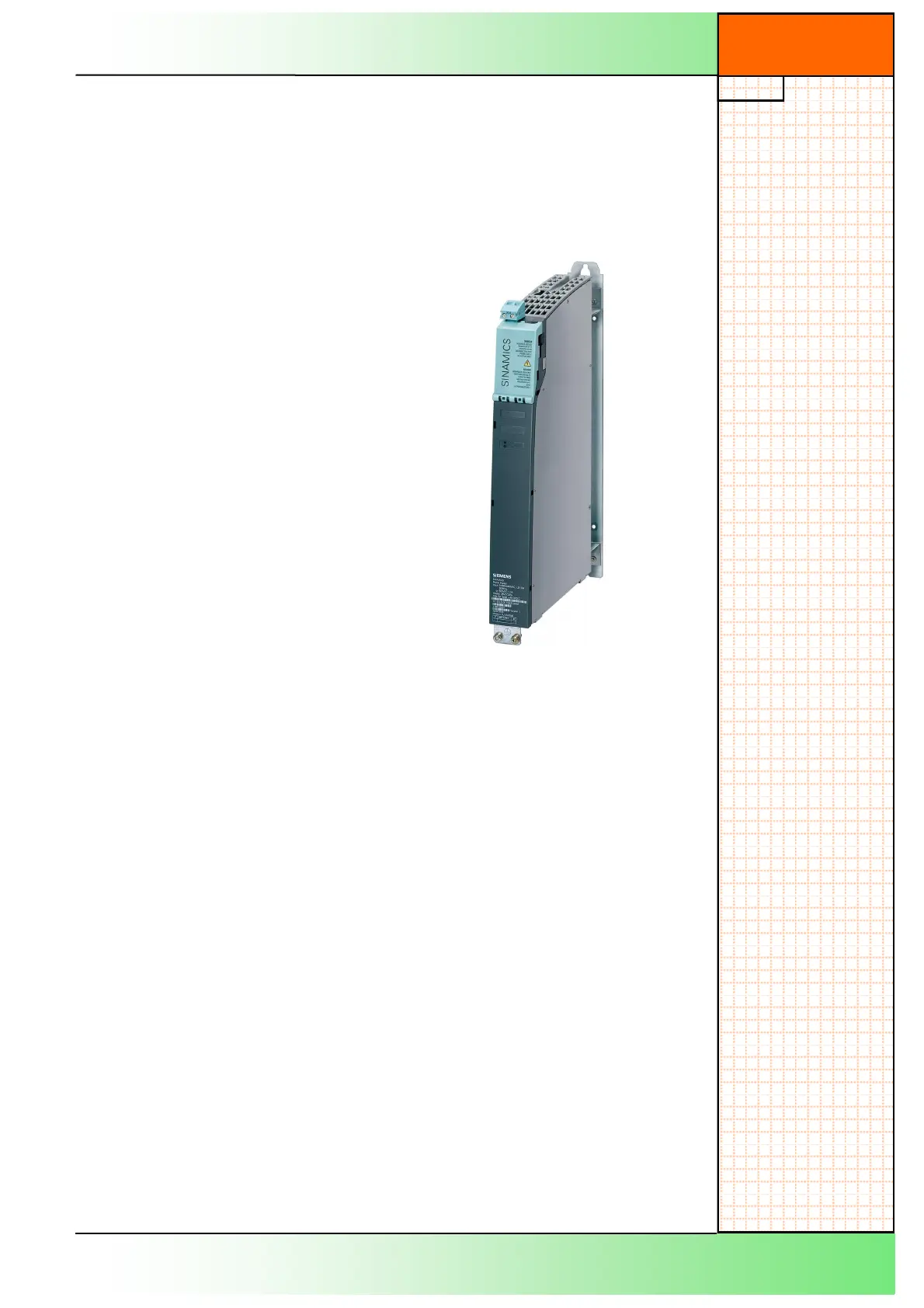

Control Supply Modules.
Braking Modules & Resistors-continued
The Control Supply Module is a 24V/20A DC
Power Supply Unit.
It is used to maintain the 24V DC in the event of a
power failure.
The initial power to the module is taken from the
line supply, when a power failure occurs power is
taken from the residual voltage of the DC link.
Part number:-6SL3100-1DE22-0AA0
Control Supply
Module
Hardware information

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
